Acre VRINX Reader Interface With Enclosure

Full Description

Cost-Effective, Versatile, and Secure – The VRINX Advantage

The Vanderbilt VRINX Reader Interface in Enclosure, by Acre Security, offers a robust and cost-effective solution for expanding your access control system. Designed for compatibility with the Vanderbilt SMS Access Control System, the VRINX provides a modular approach to access control, ideal for applications of all sizes.

Key Features Of The Acre Vrinx:

• Single Reader Connection: Connects one reader directly to a Vanderbilt reader controller using RS-485 protocol.
• Technology Support: Supports various credential technologies including proximity, smart cards, magnetic stripe, biometrics, barcodes, and Wiegand.
• Flexible Outputs: Two programmable Form C, single pole/double throw, 1 amp relay outputs for controlling door locks or other devices.
• Enhanced Security: Four supervised or unsupervised contact inputs for connecting door contacts, exit buttons, or other security devices.
• Degraded Mode Operation: Maintains local decision-making capabilities even in case of communication failure with the reader controller.
• Durable Enclosure: Metal enclosure with a hinged and dual-screw door for secure installation.
• Tamper Detection: Onboard connection for a tamper switch for added security (optional tamper switch, lock, and key available).
• Building Code Compliant: Meets BAA compliance standards.

Specifications:

• Reader Interface:
  • Dimensions (Board): 3-13/16” H x 3-13/16” W x 3/4” D
  • Enclosure Dimensions: 7-1/2” H x 8-1/4” W x 2-3/4” D
• Power Requirements: 14 – 24VDC (powered by reader controller or local source)
• Current Draw: 120mA (without reader heads)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Humidity: 10% to 90% (non-condensing)
• Communication: RS-485 (up to 4,000 feet with local power), RS-232 also available
• Recommended Cable: 18 AWG/2 Conductor, Stranded, Shielded, Twisted (RS-485 data only)
• Compliance: UL 294 Approved

Additional Notes:

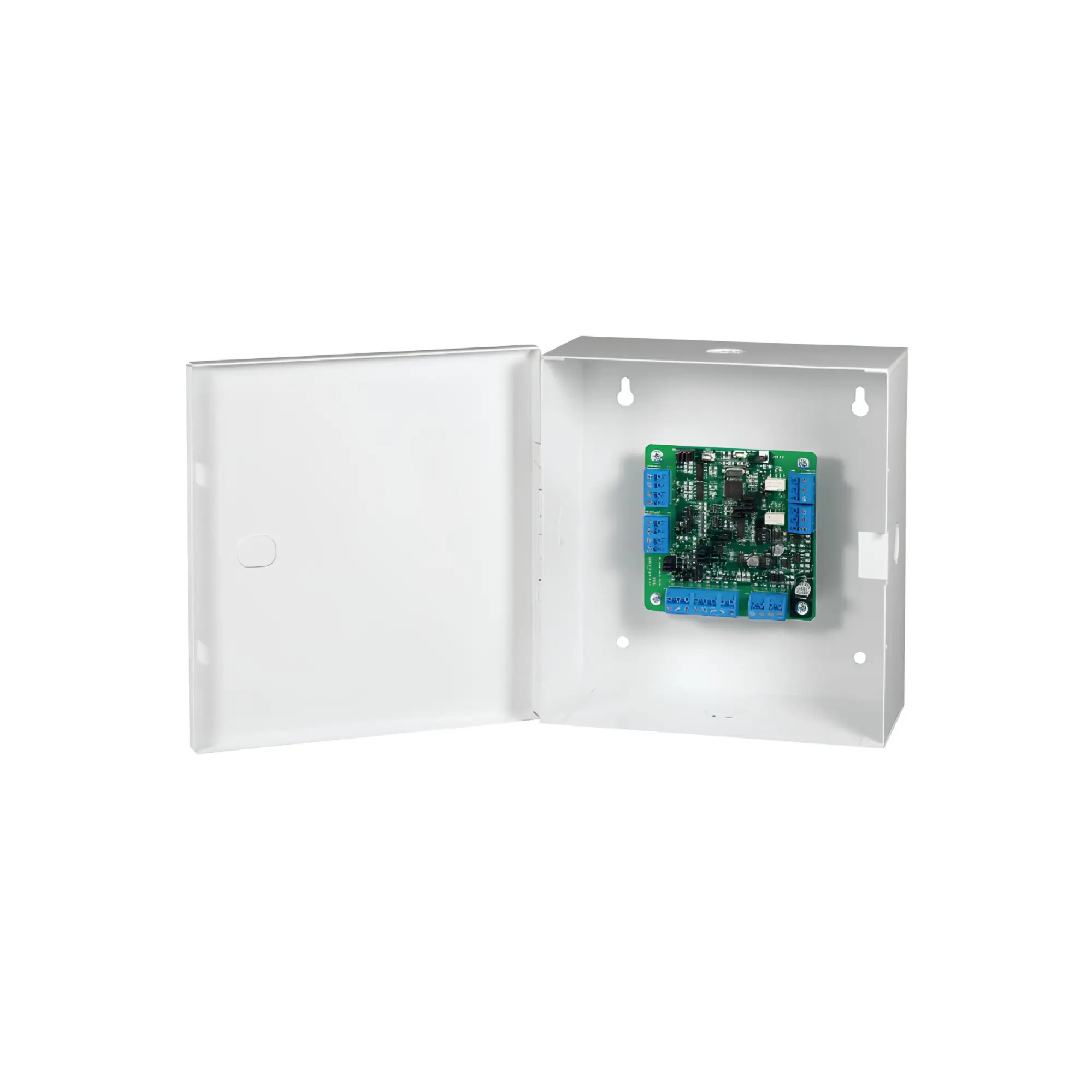

• The VRINX reader interface in enclosure features the Vrinx board itself within the enclosure.

Benefits of Vanderbilt VRINX Reader Interface in Enclosure:

• Cost-Effective Solution: Provides an affordable way to expand your access control system.
• Modular Design: Offers scalability for small or large installations.
• Versatile Functionality: Supports various reader technologies and system configurations.
• Enhanced Security Features: Degraded mode, tamper detection options, and supervised/unsupervised inputs for comprehensive security.
• Durable Construction: Metal enclosure ensures reliable performance.

Ideal Applications:

• Office Buildings: Secure access control for entrances, common areas, and server rooms.
• Retail Stores: Control access to employee areas and restrict after-hours entry.
• Apartment Buildings: Enhance building security for resident safety.
• Educational Institutions: Manage access to specific areas within schools or universities.
• Healthcare Facilities: Control access to restricted areas and patient care units.
