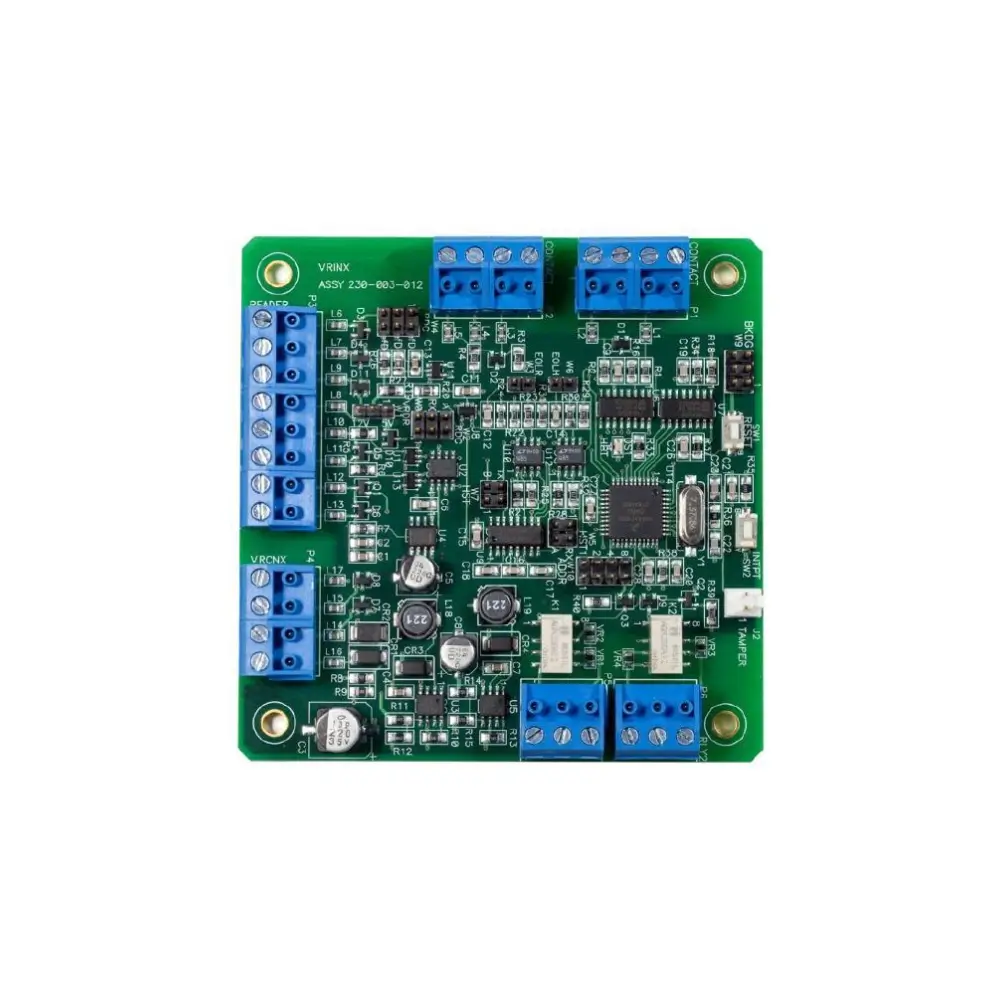

Acre SMS VRINX Reader Interface – PCB Only

Full Description

Cost-Effective and Scalable – The Power of the VRINX PCB

The Vanderbilt VRINX Reader Interface PCB, by Acre Security, offers a cost-effective and modular solution for expanding your Vanderbilt SMS Access Control System. This PCB (printed circuit board) forms the heart of the VRINX interface, providing a versatile foundation for connecting readers and enhancing your security system’s capabilities.

Key Features and Benefits Of The Acre SMS VRINX Reader Interface:

• Modular Design: Integrates seamlessly into existing access control systems for easy expansion.
• Single Reader Connection: Connects one credential reader directly to a Vanderbilt reader controller using RS-485 protocol.
• Technology Support: Compatible with various credential technologies including proximity cards, smart cards, magnetic stripes, biometrics, barcodes, and Wiegand.
• Flexible Outputs: Two programmable Form C relays (1 amp each) for controlling door locks or other devices.
• Enhanced Security: Four unsupervised contact inputs for connecting door contacts, exit buttons, or other security devices.
• Degraded Mode Operation: Maintains local decision-making capabilities even in case of communication failure with the reader controller.
• Tamper Detection Support: Onboard connection for a tamper switch for added security (optional tamper switch sold separately).

Specifications:

• Form Factor: Reader Interface Board Only (PCB)
• Dimensions: 96.9mm x 96.9mm x 19.0mm (W x H x D)
• Power Requirements: 12 to 24VDC @ 120mA (without reader)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Communication: RS-485
• Compatibility: Vanderbilt SMS Access Control System

Additional Notes:

• Enclosure (housing) is sold separately, or please see our Vrinx Reader Interface with Enclosure

Benefits of Vanderbilt VRINX Reader Interface Board:

• Cost-Effective Expansion: Provides an affordable way to add readers to your access control system.
• Modular Design: Offers scalability for small or large installations.
• Versatile Functionality: Supports various reader technologies and system configurations.
• Enhanced Security Features: Degraded mode, tamper detection support, and contact inputs for comprehensive security.

Ideal Applications:

• Office Buildings: Secure access control for entrances, common areas, and server rooms.
• Retail Stores: Control access to employee areas and restrict after-hours entry.
• Apartment Buildings: Enhance building security for resident safety.
• Educational Institutions: Manage access to specific areas within schools or universities.
• Healthcare Facilities: Control access to restricted areas and patient care units.
