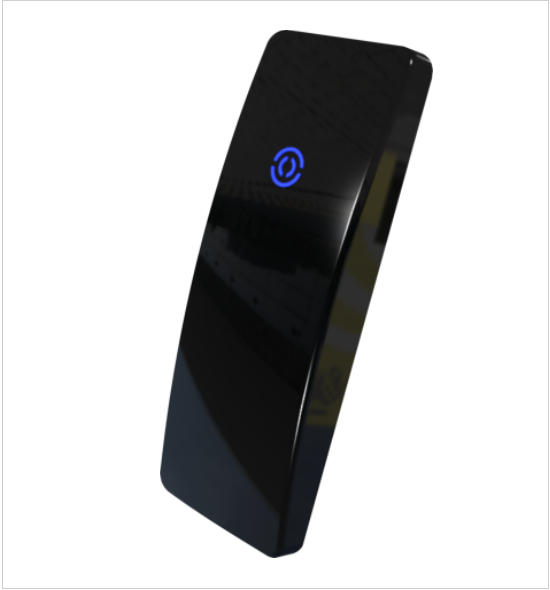

Third Millennium RX2 Reader

The RX2 advanced access control reader from Third Millennium is an elegant and slimline unit designed particularly for upgrading from magnetic stripe card readers. with a footprint similar to most popular magnetic stripe readers on the market it will have little or no cosmetic impact to the wall finish once installed to replace a magstripe reader.

The RX2 reader offers a choice of technologies, and a range of security levels from 125kHz through MIFARE® Sector and LEGIC® encryption multiple technology access control – all the way up to a high-end security level option using the RX290B reader model.

The RX290B boasts multiple technologies embedded in its hardware and firmware, providing a 13.56MHz MIFARE® DESFire® platform, having state-of-the-art security and privacy. The reader employs LEGIC® 13.56MHz contactless smart technology, with its tightly integrated LEGIC RF Standard. In addition, the reader can also be used for 125kHz access control systems.

Models available are RX200, RX280, RX282 and RX290-PLUS – please select when ordering.

Product Specifications

Dimensions 144 × 54 × 21 mm
Brand

Third Millennium

Variations

RX200, RX280, RX282, RX290-PLUS

Construction

Polycarbonate

Mounting

Surface Mount

Operating Temperature

-35°C to 66°C

Protection Rating

IK10, IP67

Connection Type

Terminal connection

Frequency

125 kHz (RFID), 13.56 MHz

SKU RX200, RX280, RX282, RX290-PLUS

Downloads

Manufacturer's Datasheet

152.29 KB

Download
