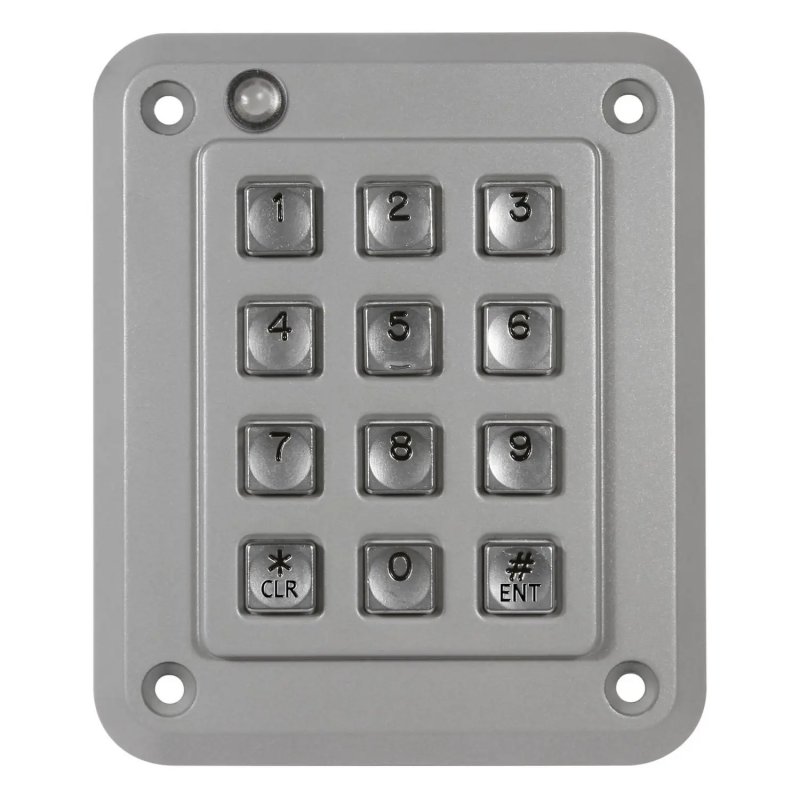

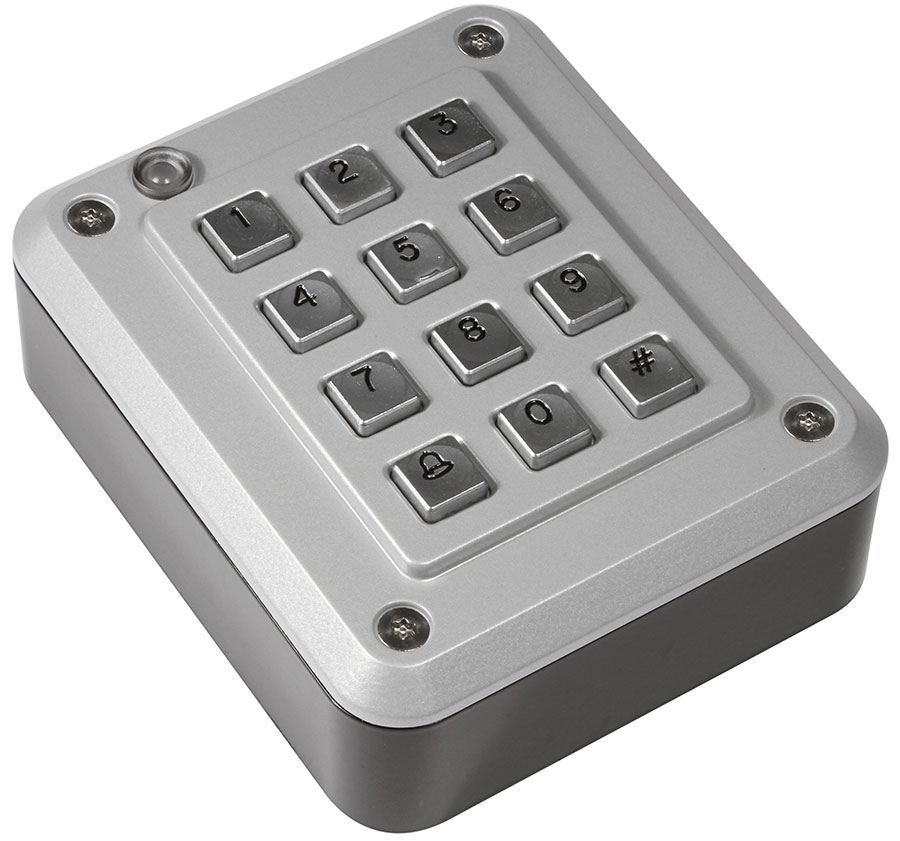

Storm WE1KT101 AXS CODEMASTER 3×4 Metal-Construction Keypad – 26-Bit / 32-Bit Wiegand Output
All weather resistant metal keypad with 26-bit and 32-bit Wiegand output for integration with access control systems.
Ideal for use in exposed outdoor, industrial, commercial or public applications.
Full Description
Storm Keypads are designed to withstand hard use and abuse, and are ideal for use in indoor or outdoor exposed, unsupervised locations.
Features & Benefits
- Attractive, Robust Design
- Bi-colour LED for Status Indication
- Selectable Audible Tones for Keypress
- Programmable Site Code for Increased Security
- Accepts PIN Length up to 5 Digits
Specifications
- Housing Rated to IP65
- Wiegand 26 bit Format
- +5VDC or +12VDC Operation
- Operating temperature: -20 ?C to +70 ?C
- Operating humidity:? Up to 100% non-condensing
- Dimensions: 100mm x 119mm x 43mm
Product Specifications
Brand | Storm Interface |
---|---|
Construction | Metal |
Mounting | Surface Mount |
Power Requirement | 12 VDC, 5 VDC |
Keypad | 3×4 Keypad |
Output | 26-Bit Wiegand, 32-Bit Wiegand |
Annunciation | LED, Sounder |
Operating Temperature | -20°C to 70°C |
Protection Rating | IP65 |
SKU | STORM-WE1KT101 |
