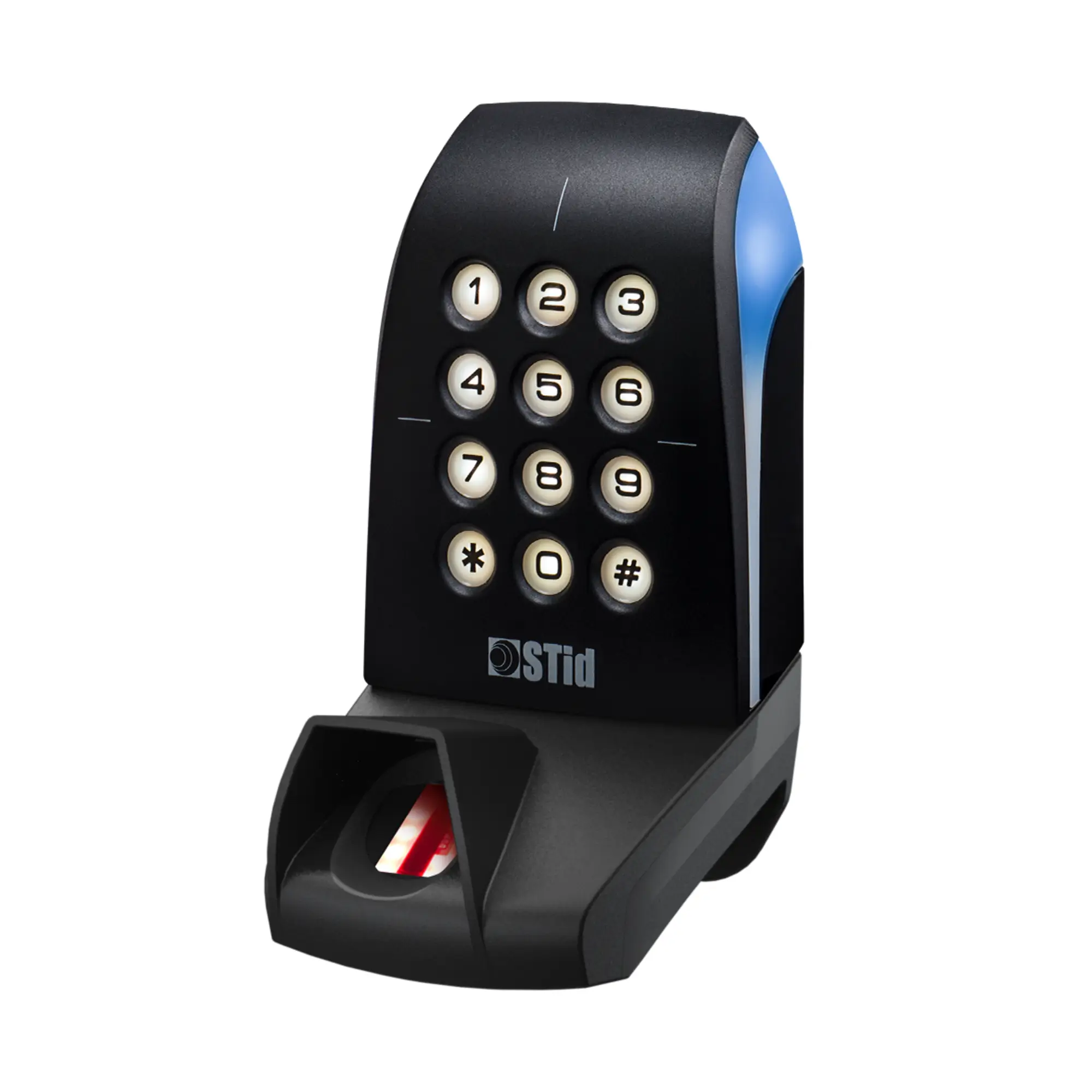

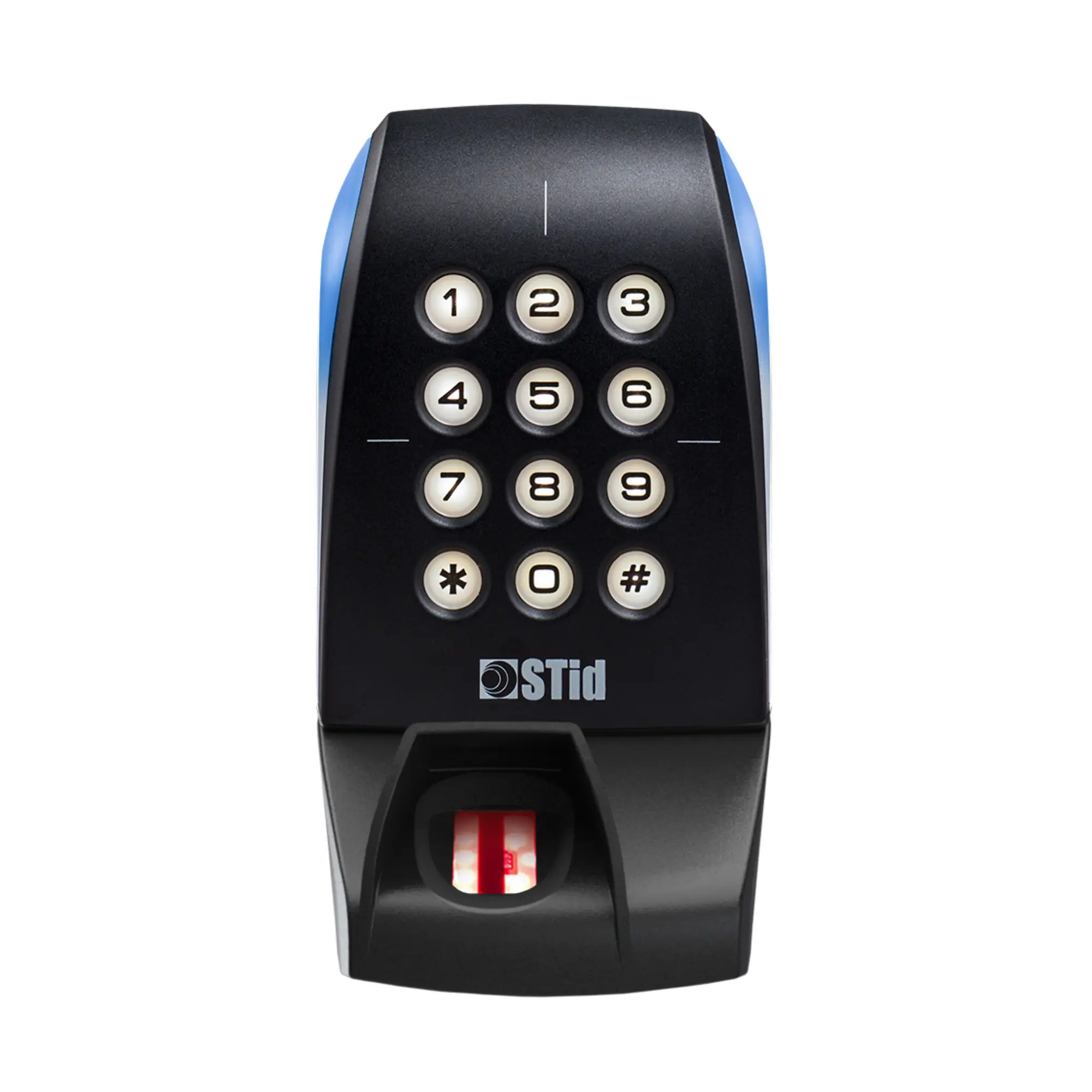

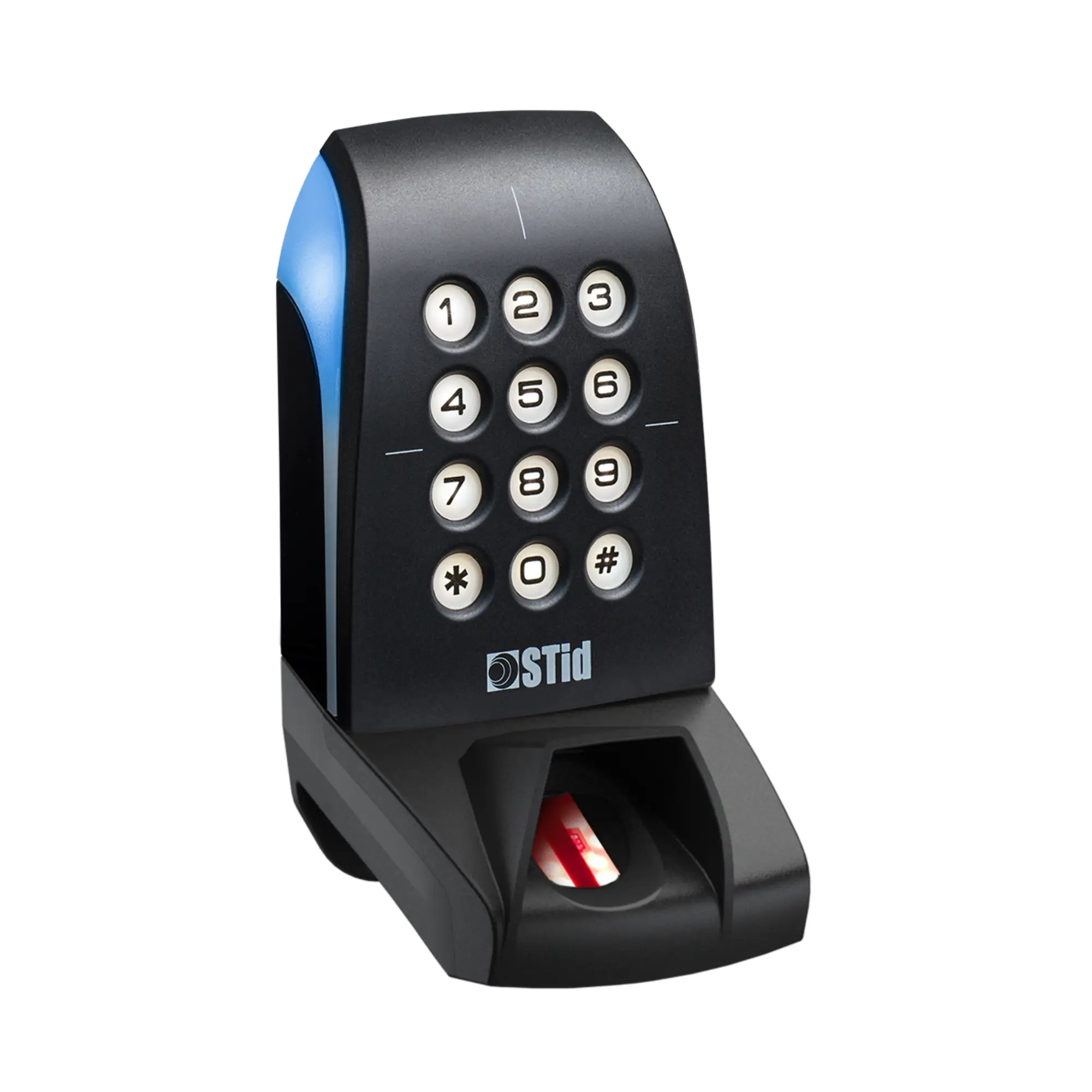

STid ARCS-E/BT: Multi-Tech Capacitive Keypad And Biometric Reader
The STid ARCS-E/BT Capacitive Keypad And Biometric Reader is a powerful and versatile access control reader that offers a comprehensive solution for enhanced security and user convenience. With its combination of biometric, RFID, keypad, and Bluetooth technologies, these readers are ideal for demanding applications that require robust and reliable access control.
Key Features:
- Multi-Factor Authentication: Enhanced security with biometric, RFID, and keypad options.
- Keypad Interface: Features a capacitive keypad with twelve backlit keys for “card and key” or “Card or key” functionality.
- MIFARE DESFire EV3 Compatibility: Supports advanced encryption and data storage.
- Bluetooth Functionality: Enables hands-free access and remote management.
- Anti-Fraud Measures: Protects against counterfeit fingerprints and other threats.
- Tamper Protection: Ensures data security with a patented motion sensor pull detection system.
- Versatile Communication Options: Supports multiple communication protocols (TTL, Wiegand, RS232, RS485, OSDP) for seamless integration.
Note: The specific model and features of the STid ARCS-E/BT series will depend on the chosen configuration. Please see below for detailed specifications.
Full Description
Unmatched Security and Convenience: The STid ARCS-E/BT Series
The STid ARCS-E/BT is a cutting-edge access control reader that combines biometric fingerprint recognition, a capacitive keypad, RFID technology, NFC and Bluetooth capabilities, providing a robust and versatile solution for secure access management.
Available Models:
Read Only:
- ARCS-R31-E/BT1-xx/1: Secure – TTL Wiegand / Clock & Data
- ARCS-S31-E/BT1-xx/1: Secure / Secure Plus – TTL Wiegand / Clock & Data
- ARCS-R33-E/BT1-7AB/1: Secure – RS485
- ARCS-R33-E/BT1-7AA/1: Secure / EasySecure interface – RS485
- ARCS-S33-E/BT1-7AB/1: Secure / Secure Plus – RS485
- ARCS-S33-E/BT1-7AA/1: Secure / Secure Plus / EasySecure interface – RS485
Controlled By Protocol:
- ARCS-W33-E/BT1-7AA/1: SSCP v1 – RS485
- ARCS-W33-E/BT1-7AD/1: SSCP v2 – RS485
- ARCS-W33-E/BT1-7OS/1: OSDP v1 & v2 – RS485
Key Features:
- Multi-Factor Authentication: Enhanced security with biometric, RFID, and keypad options.
- Keypad Interface: Features a capacitive keypad with twelve backlit keys for “card and key” or “Card or key” functionality.
- MIFARE DESFire EV3 Compatibility: Supports advanced encryption and data storage.
- Bluetooth Functionality: Enables hands-free access and remote management.
- Anti-Fraud Measures: Protects against counterfeit fingerprints and other threats.
- Tamper Protection: Ensures data security with a patented motion sensor pull detection system.
- Versatile Communication Options: Supports multiple communication protocols (TTL, Wiegand, RS232, RS485, OSDP) for seamless integration.
Technical Specifications:
- Technology: Fingerprint, MIFARE DESFire EV3, Bluetooth
- Communication: TTL, Wiegand, RS232, RS485, OSDP
- Power Supply: 7 – 28 VDC
- Operating Temperature: -10°C to +50°C
- Dimensions: 148.6 x 80 x 71.3 mm
- Housing: ABS-PC UL-V0
- Protection: IP65, accelerometer-based tamper detection
- See Full STid ARCS-E/BT Data Sheet
Benefits Of a Multi-Tech Capacitive Keypad And Biometric Reader:
- Enhanced Security: Biometric, RFID, and keypad provide robust protection against unauthorized access.
- User Convenience: Touchscreen and keypad offer intuitive user interaction.
- Flexibility: Multiple identification options and communication protocols for various applications.
- Durability: Built to withstand harsh environments and protect against tampering.
- Versatility: Suitable for a wide range of access control needs.
Ideal Applications:
- High-security environments like government facilities, data centres, and financial institutions
- Access control for offices, factories, and industrial sites
- Residential access control for gated communities and apartment buildings
- Secure access to sensitive areas within buildings
Product Specifications
| Brand | STid |
|---|---|
| Device Type | Biometric (Fingerprint Reader), Keypad, Reader |
| Reader and Card Technology | Biometric (Fingerprint), Bluetooth, NFC, DESFire |
| Operating Temperature | -10°C to 50°C |
| Power Requirement | 7-28 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz, Bluetooth, NFC |
| Mounting | Surface Mount |
| Protection Rating | IP65 |
| Reader Mode | Controlled by Protocol (Read Write), Read Only, Secure + Read |
| Versions | OSDP v1 & v2 RS485, Secure – RS485, Secure – TTL Wiegand / Clock & Data, Secure / EasySecure interface – RS485, Secure / Secure Plus – RS485, Secure / Secure Plus – TTL Wiegand / Clock & Data, Secure / Secure Plus / EasySecure interface – RS485, SSCP v1 RS485, SSCP v2 RS485 |
| SKU | ARCS-R31-E/BT1-xx/1, ARCS-S31-E/BT1-xx/1, ARCS-R33-E/BT1-7AB/1, ARCS-R33-E/BT1-7AA/1, ARCS-S33-E/BT1-7AB/1, ARCS-S33-E/BT1-7AA/1, ARCS-W33-E/BT1-7AA/1, ARCS-W33-E/BT1-7AD/1, ARCS-W33-E/BT1-7OS/1 |
