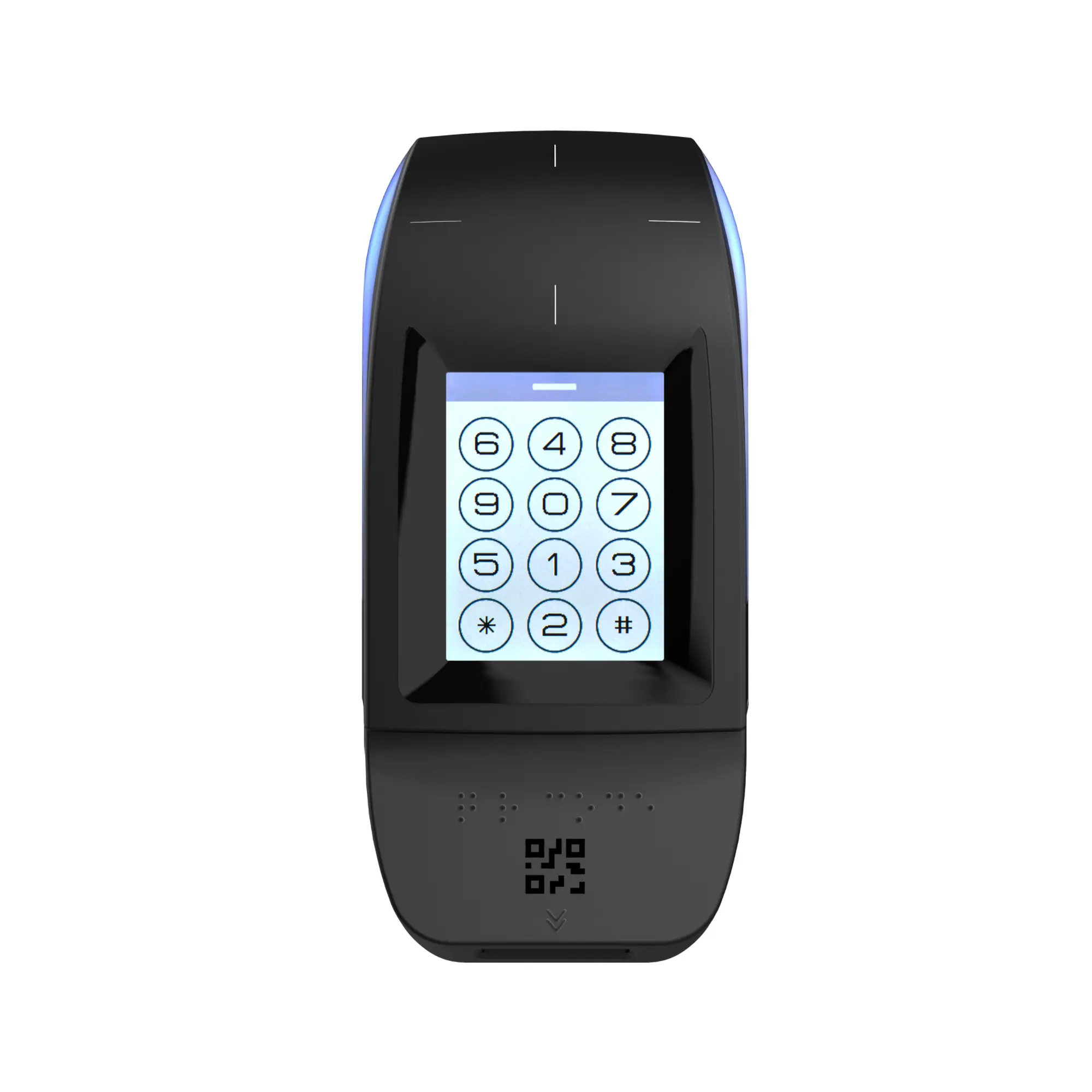

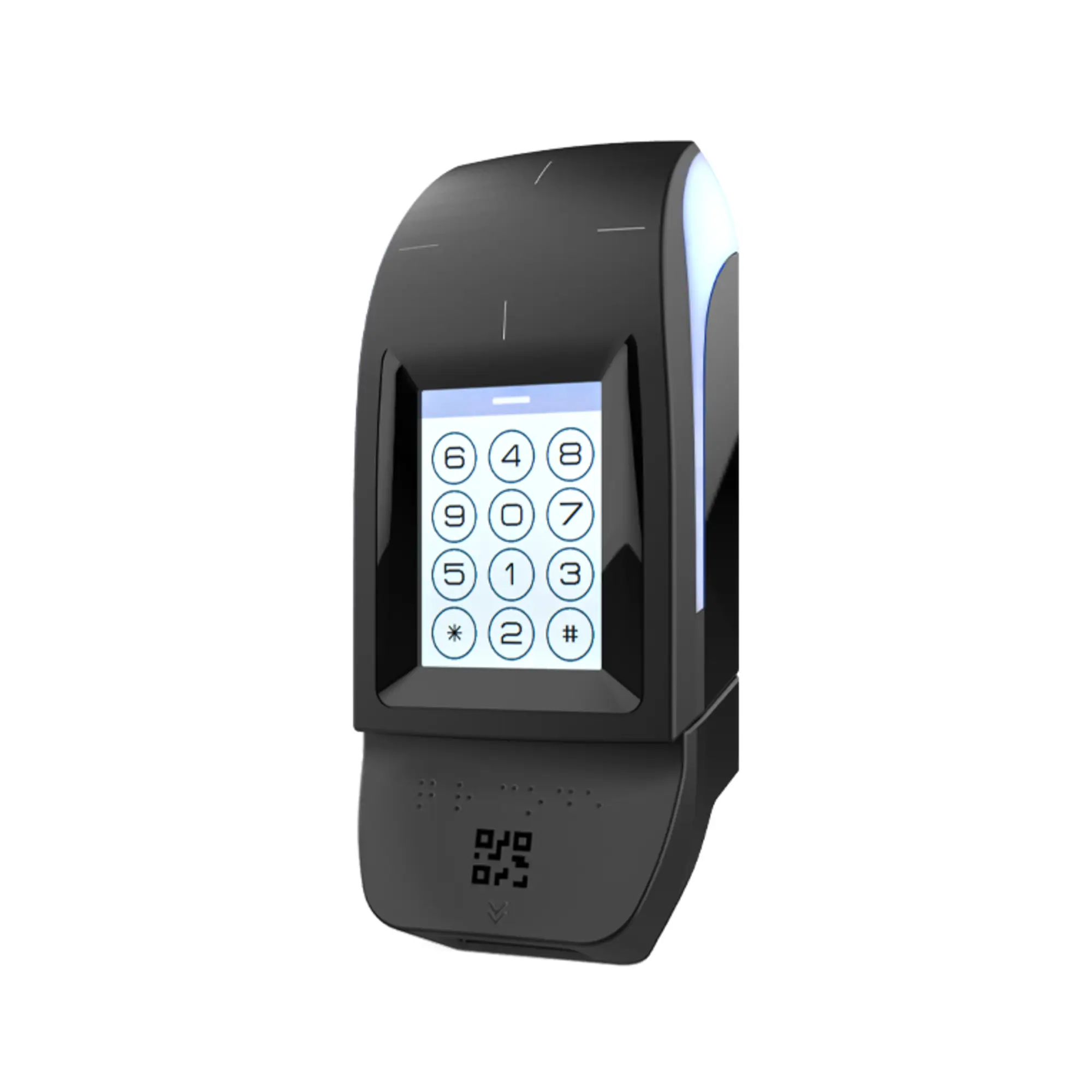

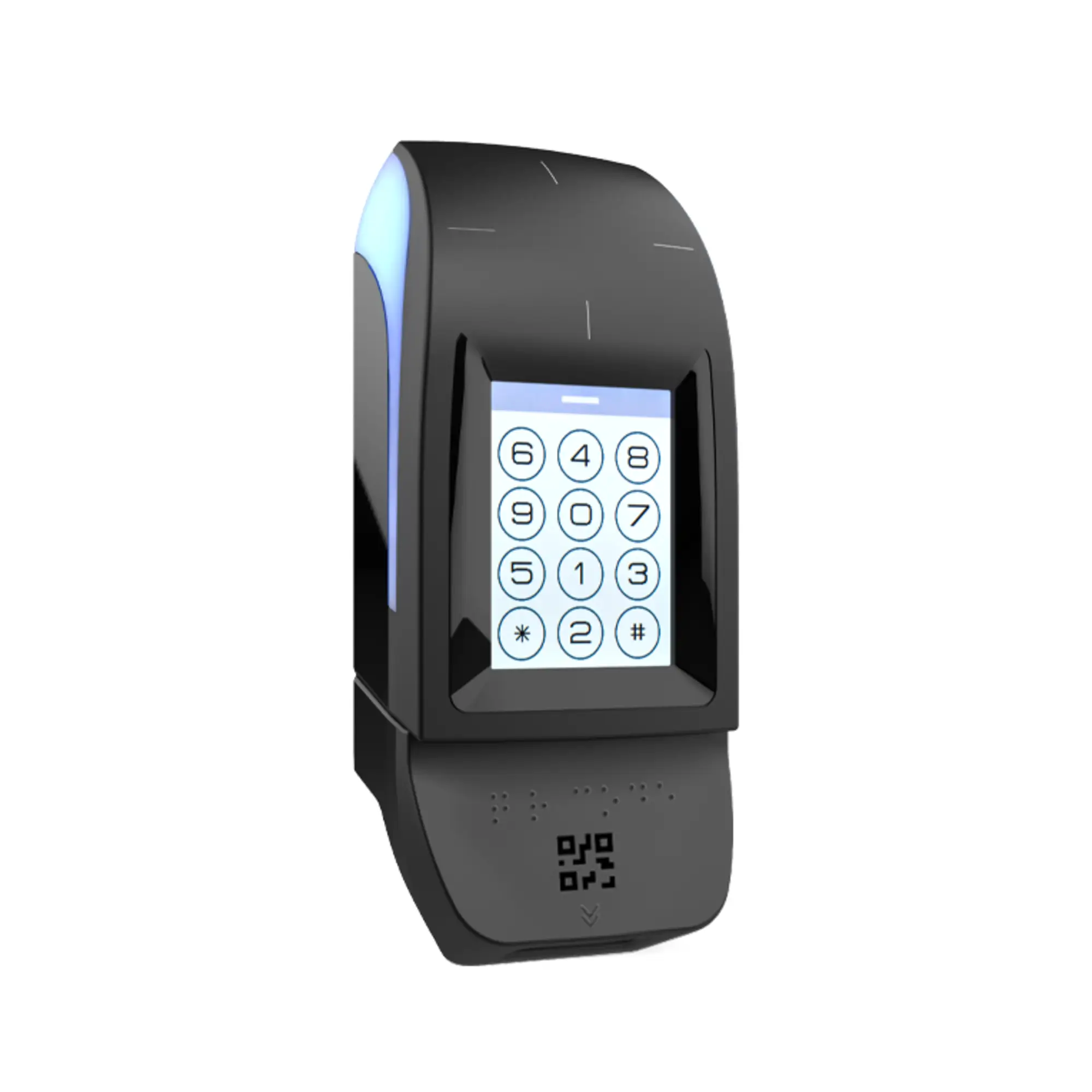

STid ARCS-CQ/BT – Architect Series Keypad Reader With Touchscreen And QR Scanner

The STid ARCS-CQ/BT is a versatile and secure access control solution that combines multiple identification technologies in a single device. Its touchscreen interface, QR code reader, and robust construction make it suitable for a wide range of applications.

Key Features:

  • Multi-Technology Platform: Supports 13.56 MHz, NFC, and Bluetooth technologies for diverse access options.
  • QR Code and Barcode Scanning: Enables quick and easy identification of employees and visitors.
  • Touchscreen Interface: Provides intuitive user interaction for various functions and settings.
  • Robust Construction: Weatherproof design with IP65 rating ensures durability in challenging environments.
  • Secure Communication: Offers encrypted communication protocols (SSCP, OSDP) for enhanced security.
  • Wide Operating Range: Functions reliably in temperatures ranging from -20°C to +60°C.

Please Select From The Following Variations:

Full Description

Advanced Access Control with Cutting-Edge Technology

The STid ARCS-CQ/BT touchscreen reader offers a comprehensive access control solution, combining RFID, NFC, and Bluetooth technologies with a user-friendly touchscreen interface and QR code/barcode scanning capabilities. This versatile reader provides a secure and efficient way to manage access to your facility.

Key Features Of The STid ARCS-CQ/BT:

  • Multi-Technology Platform: Supports 13.56 MHz, NFC, and Bluetooth for diverse user access options.
  • QR Code/Barcode Scanning: Enables quick and easy identification of employees and visitors.
  • Touchscreen Interface: Offers intuitive user interaction and clear visual feedback.
  • Robust Construction: IP65 rating ensures durability in various environments.
  • Secure Communication: Supports multiple communication protocols (RS485, OSDP) for seamless integration.
  • Tamper Protection: Protects against unauthorised access and tampering.
  • See Full Data Sheet.

Variations Available:

Read Only

    • ARCS-R31-CQ/BT1-xx/1 – Secure – TTL Wiegand or Clock & Data
    • ARCS-S31-CQ/BT1-xx/1 – Secure / Secure Plus – encrypted TTL Wiegand or Clock & Data
    • ARCS-R33-CQ/BT1-7AB/1 – Secure – RS485
    • ARCS-S33-CQ/BT1-7AB/1 – Secure / Secure Plus – encrypted RS485
    • ARCS-R33-CQ/BT1-7AA/1 – Secure / EasySecure Interface – RS485
    • ARCS-S33-CQ/BT1-7AA/1 – Secure / Secure Plus / EasySecure Interface – encrypted RS485

Read + Write

    • ARCS-W33-CQ/BT1-7AA/1 – Secure – SSCP v1 RS485
    • ARCS-W33-CQ/BT1-7AD/1 – Secure – SSCP v2 RS485
    • ARCS-W33-CQ/BT1-7OS/1 – Secure – OSDP v1 & v2 RS485

Technical Specifications Of The STid Architect Series:

  • Communication: RS485, OSDP
  • Power Supply: 7 VDC to 28 VDC
  • Operating Temperature: -20°C to +60°C
  • Dimensions: 174.8 x 80 x 36 mm
  • Housing Material: ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Protection: IP65
  • Card Technologies: MIFARE, DESFire, NFC, Bluetooth

Benefits of the STid Keypad Reader With Touchscreen And QR Code:

  • Enhanced Security: Multiple authentication methods (RFID, NFC, Bluetooth, QR code) provide robust security.
  • User-Friendly Interface: Touchscreen and clear visual feedback improve user experience.
  • Flexibility: Supports various communication protocols for seamless integration.
  • Durability: IP65 rating ensures reliable performance in challenging environments.
  • Efficient Access Management: QR code scanning streamlines visitor and employee management.

Ideal Applications:

  • Access control for offices, factories, and commercial buildings
  • Secure entry points for residential buildings and flats
  • Visitor management systems
  • Time and attendance systems
  • Parking access control

Product Specifications

Dimensions 174.8 × 80 × 36 mm
Brand

STid

Device Type

Keypad, QR Scanner, Reader

Reader and Card Technology

Bluetooth, Mifare / Desfire CSN Only, NFC, QR Code

Operating Temperature

-20°C to 60°C

Power Requirement

7-28 VDC

Construction

ABS

Frequency

13.56 MHz, Bluetooth

Mounting

Surface Mount, Wall Mount

Protection Rating

IP65

Reader Mode

Controlled by Protocol (Read Write), Read Only, Secure + Read

Versions

EasySecure Interface – Encrypted RS485, EasySecure Interface – RS485, Encrypted RS485, Encrypted TTL Wiegand or Clock & Data, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data

SKU STID-ARCS-R31-CQ/BT1-xx/1, STID-ARCS-S31-CQ/BT1-xx/1, STID-ARCS-R33-CQ/BT1-7AB/1, STID-ARCS-S33-CQ/BT1-7AB/1, STID-ARCS-R33-CQ/BT1-7AA/1, STID-ARCS-S33-CQ/BT1-7AA/1, STID-ARCS-W33-CQ/BT1-7AA/1, STID-ARCS-W33-CQ/BT1-7AD/1, STID-ARCS-W33-CQ/BT1-7OS/1
