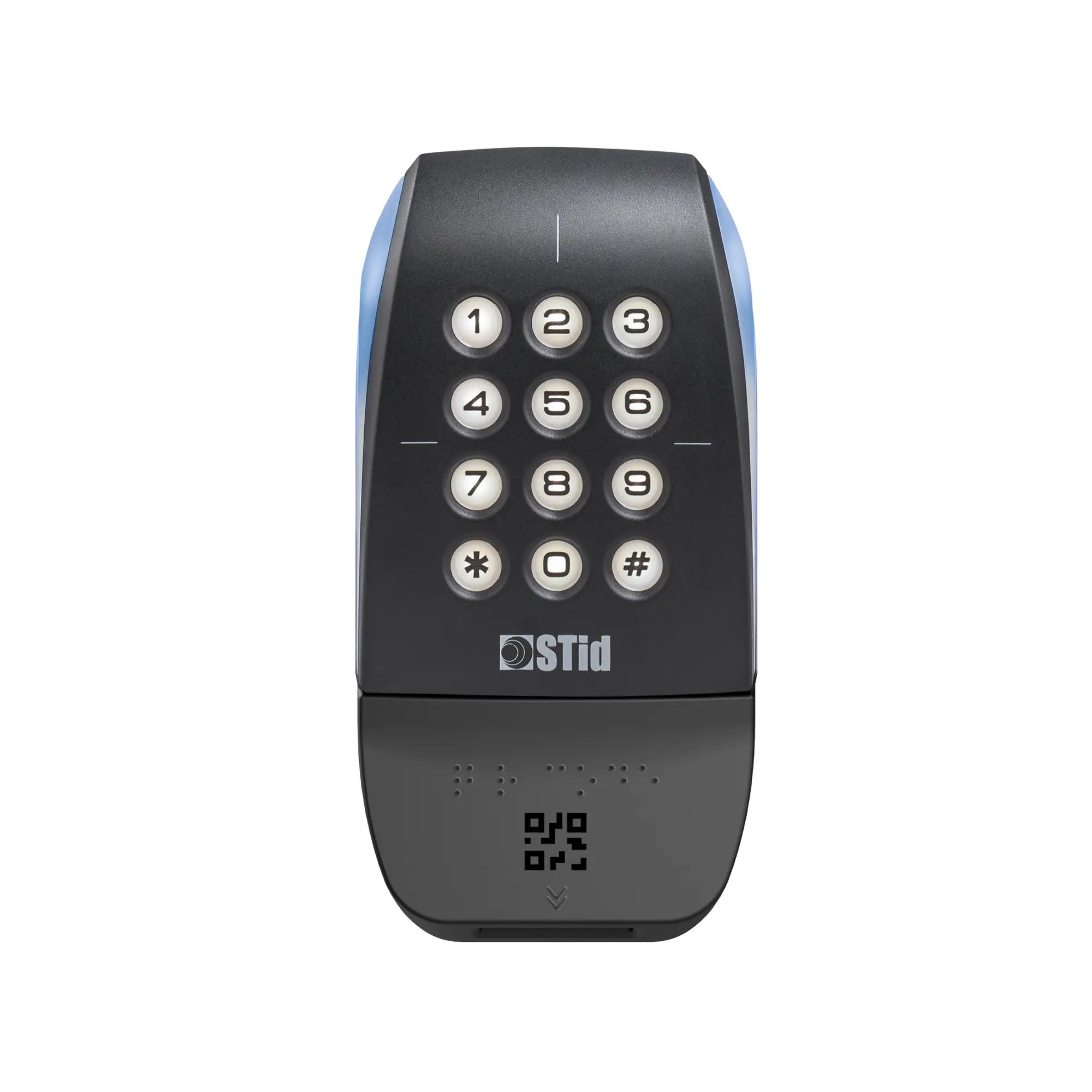

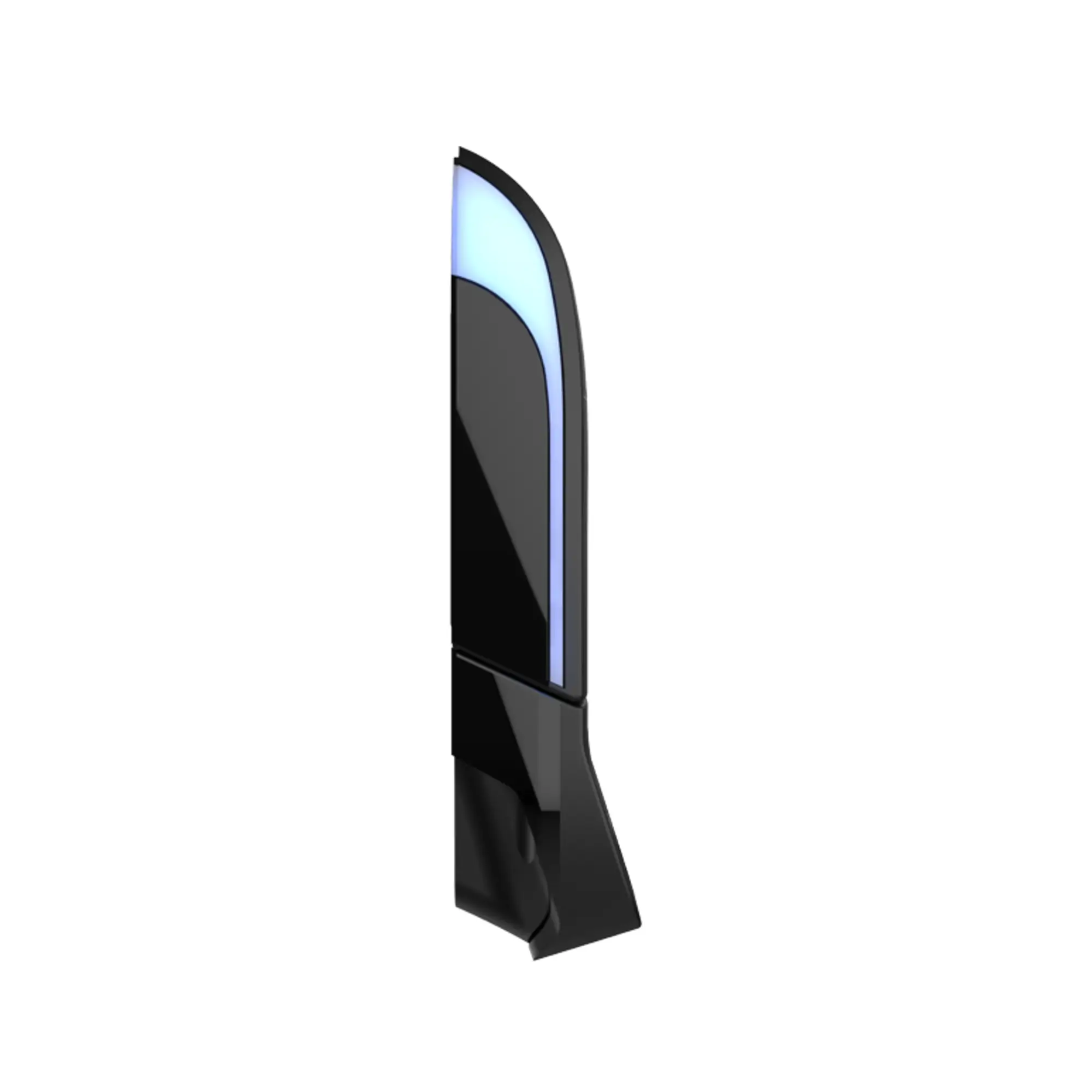

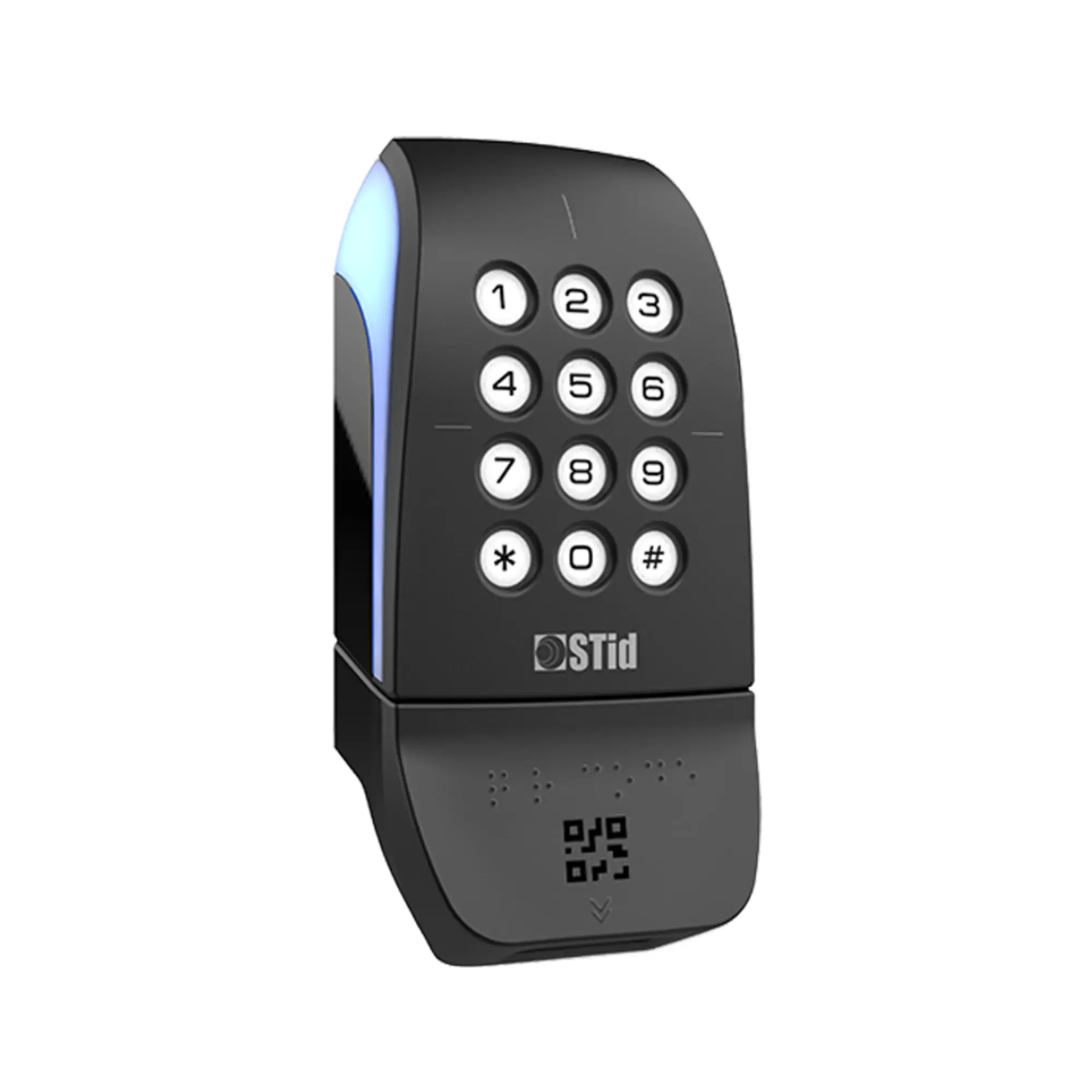

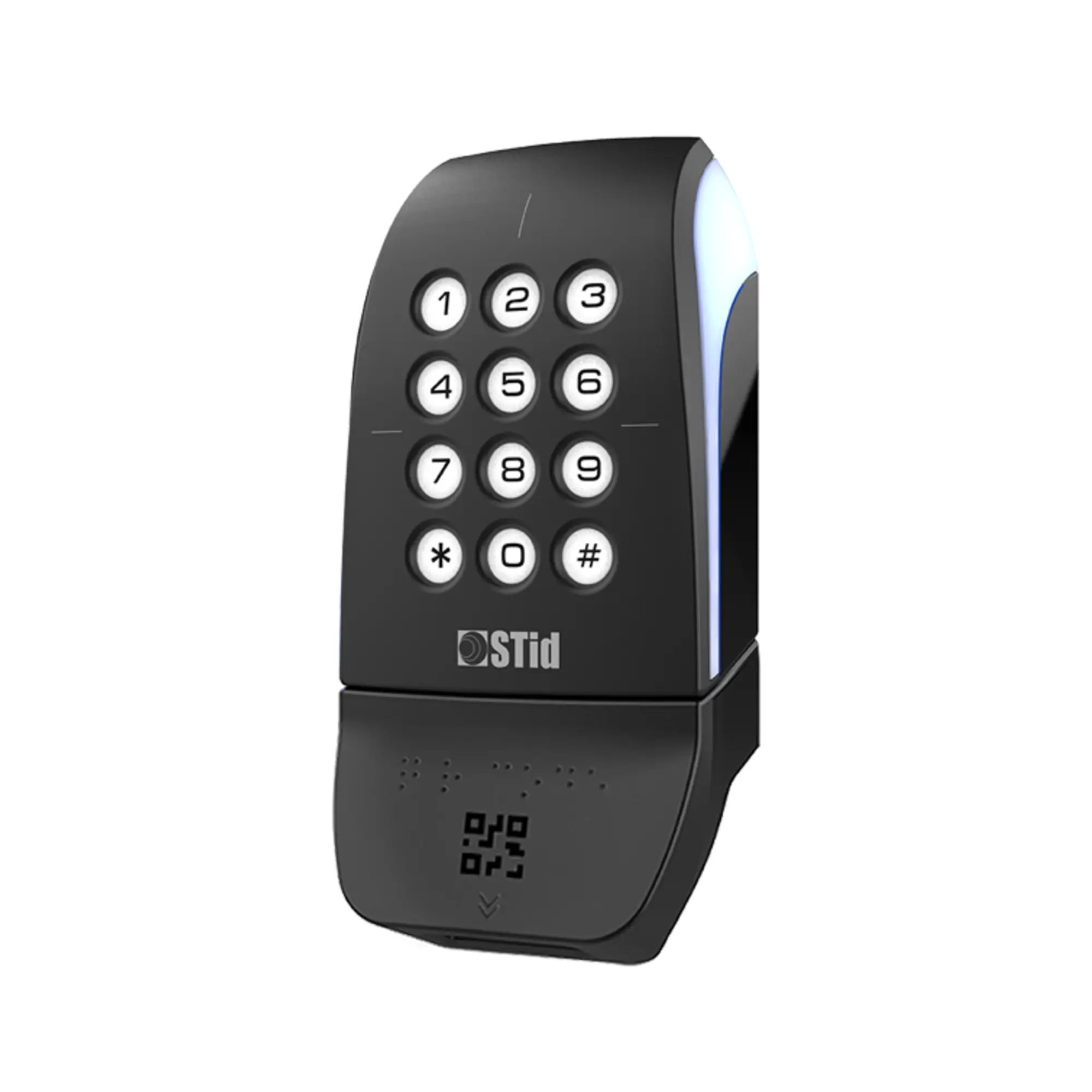

STid ARCS-BQ/BT Series – DESFire, NFC And Bluetooth Keypad Reader With QR Module
The STid ARCS-BQ/BT Series DESFire, NFC And Bluetooth Keypad Reader With QR Module is a robust and versatile access control reader that offers a combination of security, convenience, and durability. Its keypad, QR code scanner, and support for multiple RFID and wireless technologies make it a suitable solution for various applications.
Key Features:
- Multi-Technology Support: Reads 13.56 MHz Mifare DESFire, NFC, Bluetooth, and QR codes for flexible user authentication.
- Vandal-Resistant Keypad: Robust construction with capacitive keys for durability and reliability.
- QR Code Scanning: Enables quick and easy access for visitors and temporary personnel.
- Enhanced Security: Accelerometer-based tamper detection and secure communication protocols protect against unauthorised access.
- Customisable Functionality: Flexible configuration options to suit different application needs.
Note: The specific model and features of the ARCS-BQ/BT reader will depend on the chosen configuration. Please refer to the product documentation for detailed specifications.
Full Description
Advanced Access Control with Keypad, QR Code, and Multiple Technologies
The STid ARCS-BQ/BT is a high-performance keypad reader that combines multiple identification technologies, including RFID, NFC, Bluetooth, and QR code scanning, to provide a comprehensive and secure access control solution.
Key Features:
- Multi-Technology Support: Offers flexibility with RFID, NFC, Bluetooth, and QR code reading for various user profiles.
- Vandal-Proof Construction: Built to withstand harsh environments with an IK08 rating and reinforced design.
- Secure Communication: Supports multiple communication protocols (RS485, OSDP) with encryption options.
- Customisable Keypad: Allows for PIN entry or additional functions to enhance security and user experience.
- QR Code Scanning: Facilitates quick and easy access for visitors or temporary personnel.
- Advanced Anti-Fraud Protection: Tamper detection system and false finger detection safeguard against unauthorised access.
Technical Specifications:
- Reading Technologies: RFID (MIFARE Classic, Plus, DESFire), NFC, Bluetooth, QR Code
- Communication Protocols: RS485, OSDP
- Power Supply: 7 VDC to 28 VDC
- Operating Temperature: -30°C to +60°C
- Dimensions: 156.5 x 80 x 36 mm
- Housing: ABS-PC UL-V0 (black)
- Protection: IP65, IK08, accelerometer-based tamper detection
- See Full Data Sheet.
Please choose From The Following Models Within the STid ARCS-BQ/BT Series:
Read only
- ARCS-R31-BQ/BT1-xx/1: Secure – TTL Wiegand or Clock & Data
- ARCS-S31-BQ/BT1-xx/1: Secure / Secure Plus – Encrypted TTL Wiegand or Clock & Data
- ARCS-R33-BQ/BT1-7AB/1: Secure – RS485
- ARCS-S33-BQ/BT1-7AB/1: Secure / Secure Plus – Encrypted RS485
- ARCS-R33-BQ/BT1-7AA/1: Secure / EasySecure Interface – RS485
- ARCS-S33-BQ/BT1-7AA/1: Secure / Secure Plus / EasySecure Interface – Encrypted RS485
Controlled by protocol
- ARCS-W33-BQ/BT1-7AA/1: Secure – SSCP v1 RS485
- ARCS-W33-BQ/BT1-7AD/1: Secure – SSCP v2 RS485
- ARCS-W33-BQ/BT1-7OS/1: Secure – OSDP v1 & v2 RS485
Benefits Of The STid DESFire, NFC And Bluetooth Keypad Reader With QR Module:
- Enhanced Security: Multiple authentication methods and robust construction for protection against unauthorised access.
- User Convenience: Keypad for easy operation and user interaction.
- Versatility: Suitable for a wide range of applications, including offices, industrial facilities, and public spaces.
- Durability: Built to withstand harsh environments.
- Flexibility: Customisable keypad functions and communication options to meet specific requirements.
Ideal Applications:
- High-security access control for sensitive areas
- Visitor management in offices and industrial facilities
- Secure entry points in public buildings and transportation hubs
- Applications requiring multi-factor authentication
Product Specifications
| Dimensions | 156.5 × 80 × 36 mm |
|---|---|
| Brand | STid |
| Device Type | Keypad, QR Scanner |
| Reader and Card Technology | Bluetooth, NFC, QR Code, MIFARE, DESFire |
| Operating Temperature | -30°C to 60°C |
| Power Requirement | 7-28 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz, Bluetooth, NFC, QR Code |
| Mounting | Surface Mount |
| Protection Rating | IK08, IP65 |
| Reader Mode | Controlled by Protocol (Read Write), Read Only, Secure + Read |
| Versions | EasySecure Interface – Encrypted RS485, EasySecure Interface – RS485, Encrypted RS485, Encrypted TTL Wiegand or Clock & Data, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data |
| SKU | STID-ARCS-W33-BQ/BT1-7OS/1, STID-ARCS-W33-BQ/BT1-7AD/1, STID-ARCS-W33-BQ/BT1-7AA/1, STID-ARCS-S33-BQ/BT1-7AA/1, STID-ARCS-R33-BQ/BT1-7AA/1, STID-ARCS-S33-BQ/BT1-7AB/1, STID-ARCS-R33-BQ/BT1-7AB/1, STID-ARCS-S31-BQ/BT1-xx/1, STID-ARCS-R31-BQ/BT1-xx/1 |
