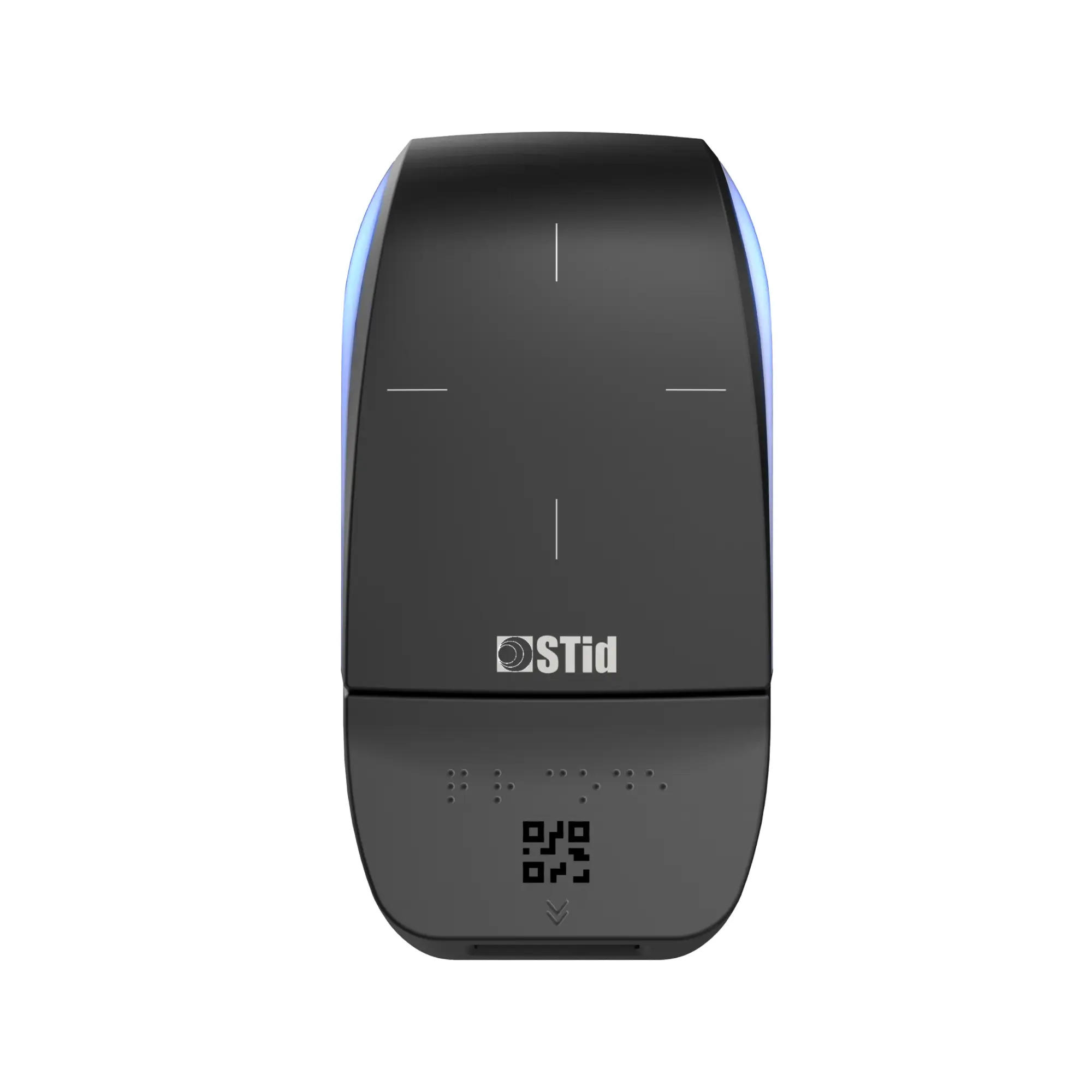

STid ARCS-AQ/BT Series – Multi-Technology Reader With Bluetooth And QR Code Reader

Full Description

Multi-Technology Reader for Enhanced Security and Flexibility

The STid ARCS-AQ/BT Multi-Technology Reader With Bluetooth And QR Code Reader is a cutting-edge access control device that combines multiple identification technologies, including High frequency RFID, NFC, Bluetooth, and QR code, to provide a comprehensive and secure solution. This versatile reader is designed for demanding environments and offers exceptional performance.

Models Available Within This Series:

Read Only:

• • ARCS-R31-AQ/BT1-xx/1 – Secure – TTL Wiegand or Clock & Data
  • ARCS-S31-AQ/BT1-xx/1 – Secure / Secure Plus – Encrypted TTL Wiegand or Clock & Data
  • ARCS-R33-AQ/BT1-7AB/1 – Secure – RS485
  • ARCS-S33-AQ/BT1-7AB/1 – Secure / Secure Plus – Encrypted RS485
  • ARCS-R33-AQ/BT1-7AA/1 –  Secure / EasySecure Interface – RS485
  • ARCS-S33-AQ/BT1-7AA/1 – Secure / Secure Plus / EasySecure Interface – encrypted RS485

Controlled by protocol:

• • ARCS-W33-AQ/BT1-7AA/1 – Secure – SSCP v1 RS485
  • ARCS-W33-AQ/BT1-7AD/1 – Secure – SSCP v2 RS485
  • ARCS-W33-AQ/BT1-7OS/1 – Secure – OSDP v1 & v2 RS485

Key Features Of The STid ARCS-AQ/BT Series:

• Multi-Technology Support: Accepts MIFARE DESFire, NFC, Bluetooth, and QR code credentials for diverse user profiles.
• QR Code Scanning: Enables fast and convenient access for visitors and temporary personnel.
• Robust Construction: IK08 rating and IP65 protection for durability in harsh environments.
• Enhanced Security: Accelerometer-based tamper detection and secure communication protocols safeguard data.
• Flexible Communication: Supports multiple communication protocols (TTL, Wiegand, RS485, OSDP) for seamless integration.

Technical Specifications:

• Reading Technologies: RFID (MIFARE Classic, Plus, DESFire), NFC, Bluetooth, QR code
• Communication Protocols: TTL, Wiegand, RS485, OSDP
• Power Supply: 7 VDC to 28 VDC
• Operating Temperature: -30°C to +60°C
• Dimensions: 156.5 x 80 x 36 mm
• Housing: ABS-PC UL-V0
• Protection: IK08, IP65, accelerometer-based tamper detection
• See Full Data Sheet.

Benefits Of a Multi-Technology Reader With Bluetooth And QR Code Reader:

• Enhanced Security: Multiple authentication methods and advanced security features protect against unauthorised access.
• Versatility: Accommodates various user types and access scenarios.
• Durability: Built to withstand harsh environments.
• User Convenience: QR code scanning for quick access and clear visual feedback.
• Flexibility: Supports multiple communication protocols for easy integration.

Ideal Applications:

• High-security environments like government buildings and industrial facilities
• Access control for offices, retail stores, and campuses
• Visitor management and temporary access
• Parking and building automation systems
