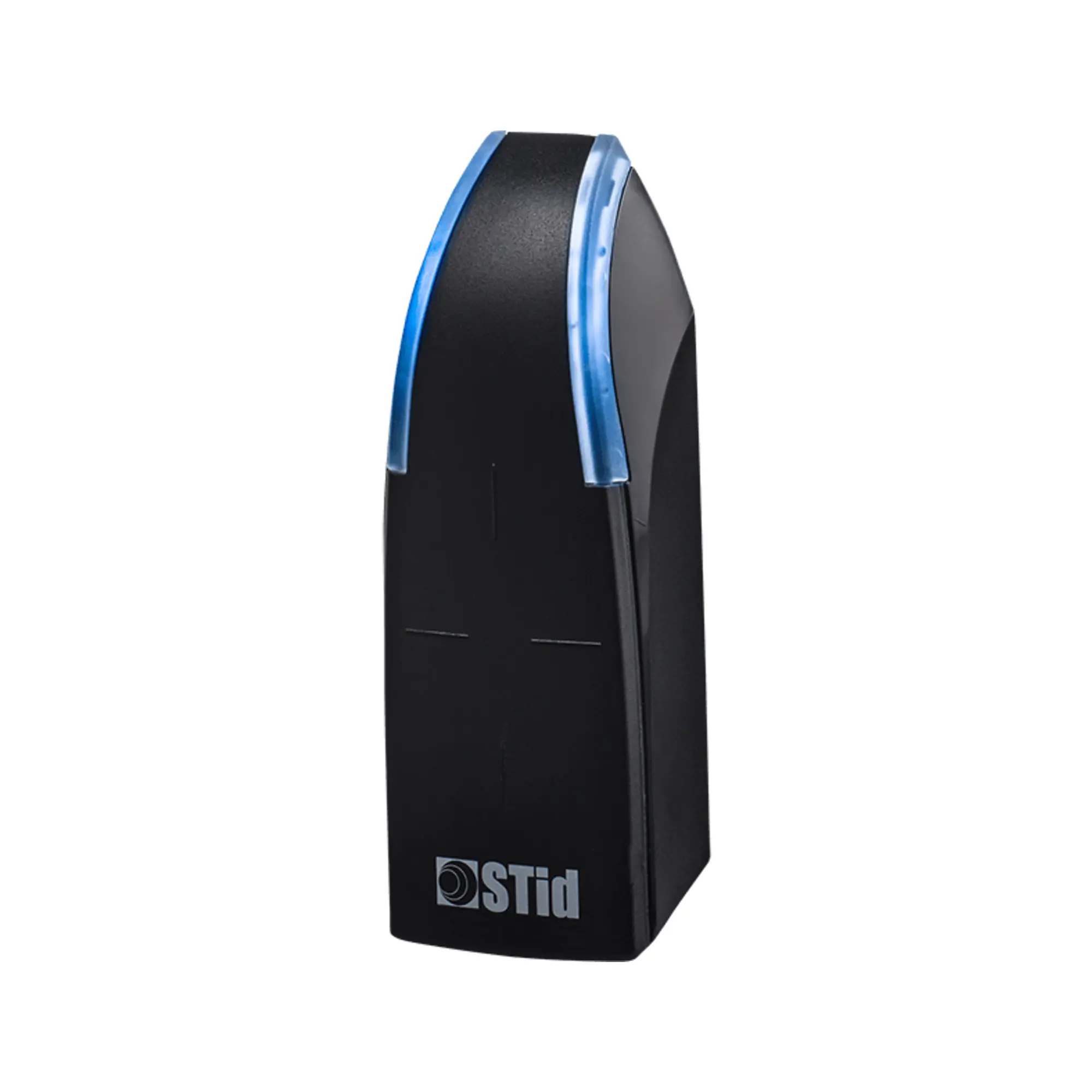

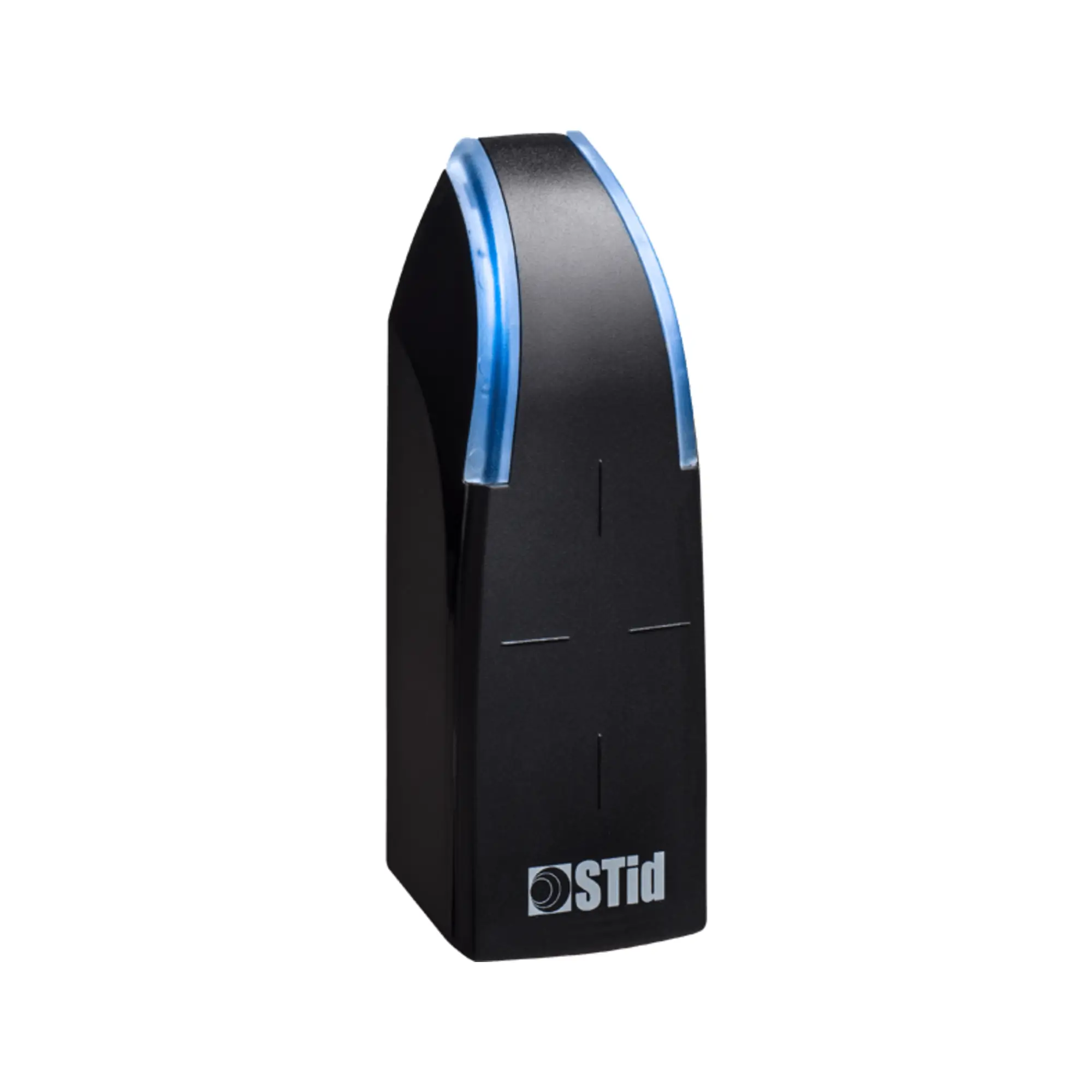

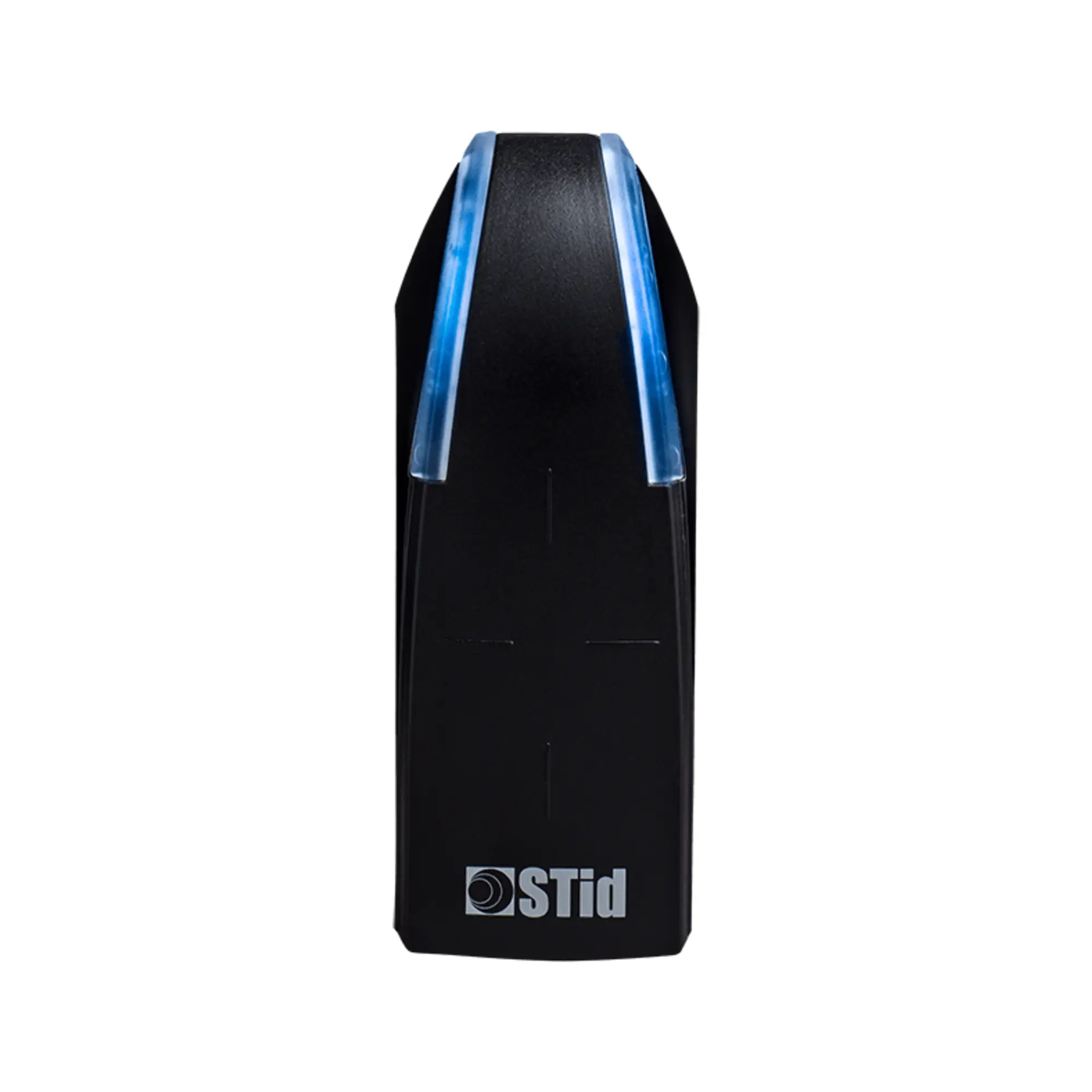

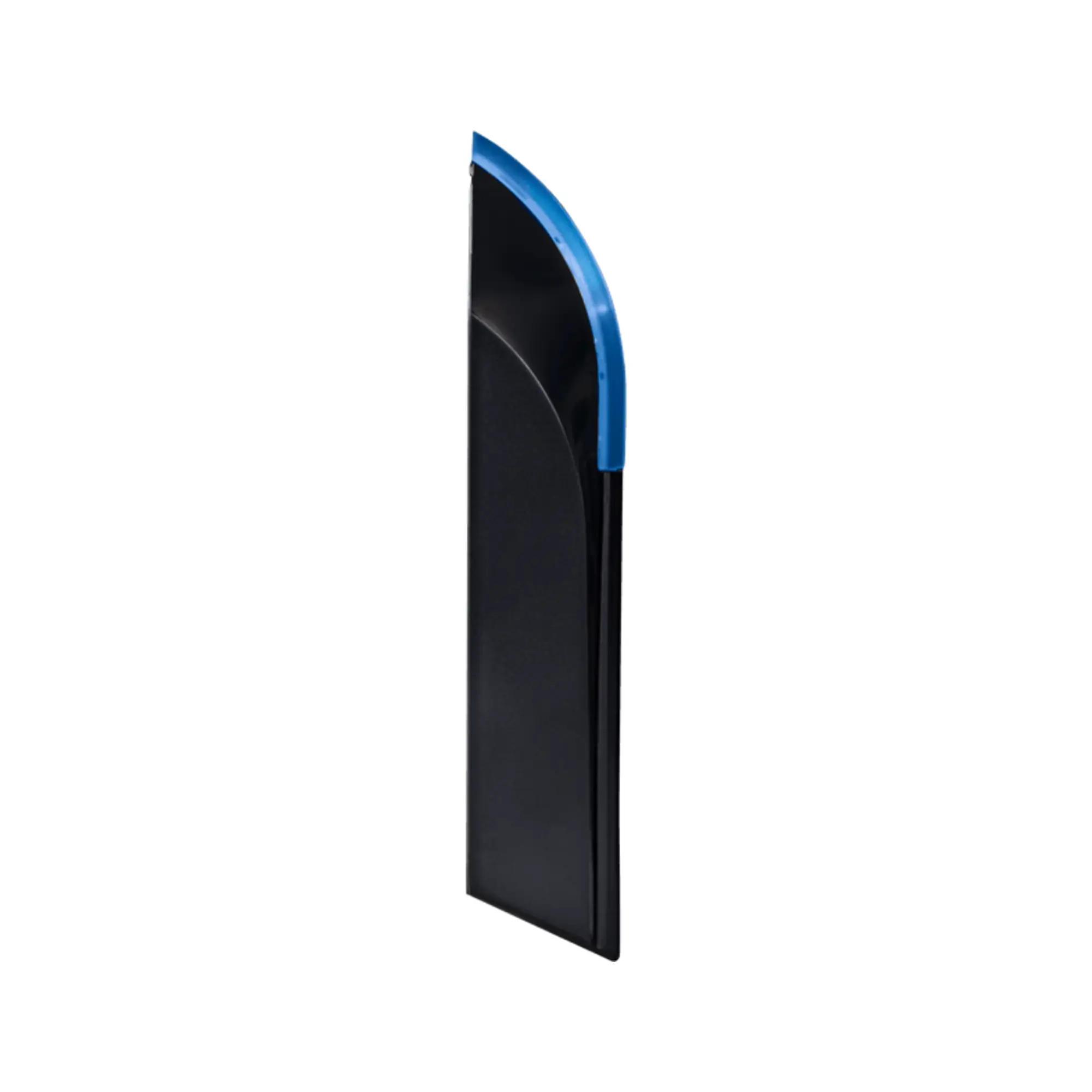

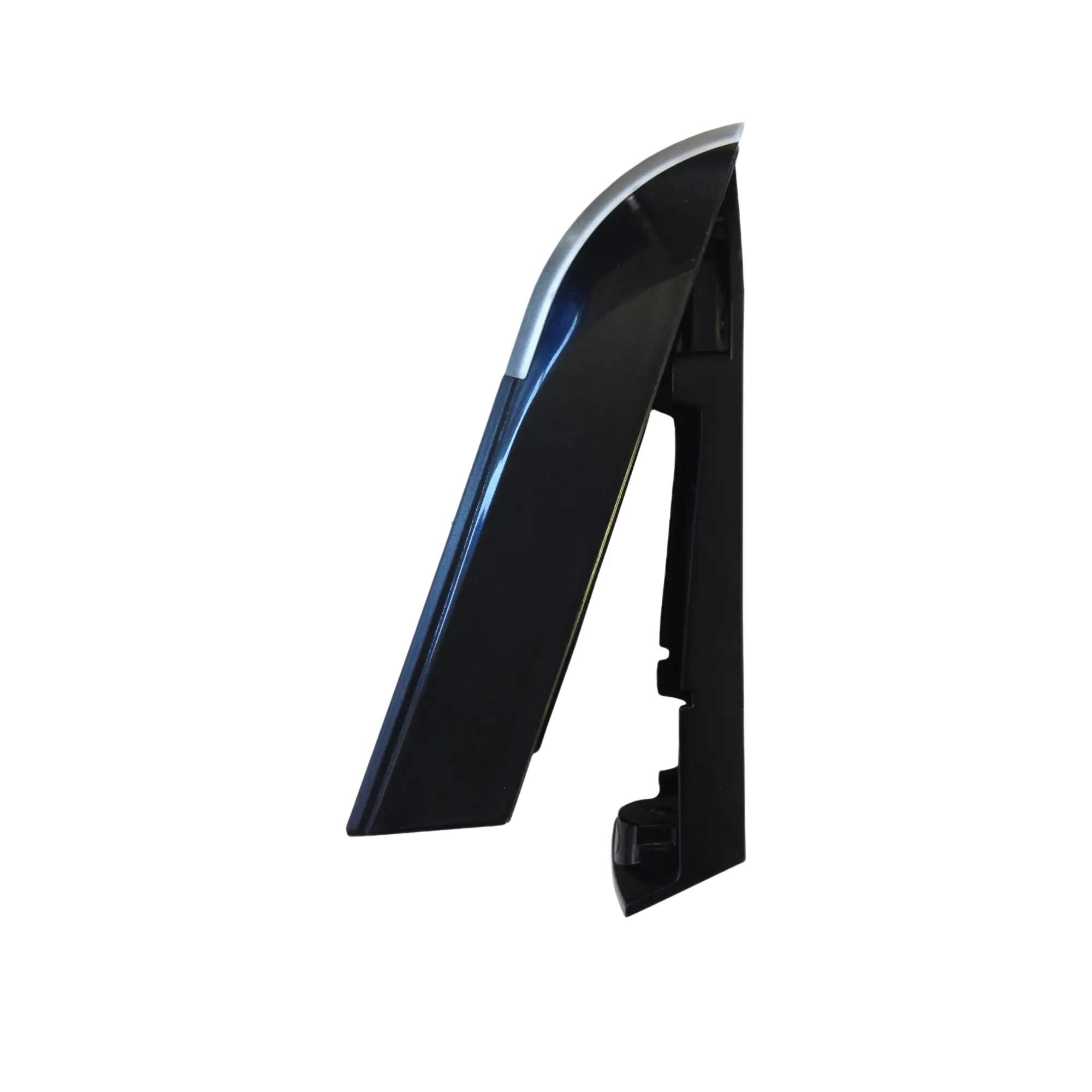

STid ARC1S/BT Series – MIFARE DESFire EV3 And Bluetooth Mullion Reader
The STid ARC1S/BT – MIFARE DESFire EV3 And Bluetooth Mullion Reader is a compact and versatile mullion reader that offers a combination of convenience, security, and durability. This reader’s support for multiple access technologies, along with its sleek design and robust construction, make it an ideal choice for various applications.
Key Features:
- Compact Design: Ideal for installation in narrow spaces, such as door frames or electrical junction boxes.
- Multi-Technology Support: Accepts High-Frequency (13.56 MHz) RFID cards, NFC smartphones, and Bluetooth devices for versatile access options.
- Hands-Free Access: Supports tap-and-go, voice control, and remote access modes for enhanced user experience.
- Secure Communication: Offers multiple communication protocols (RS485, OSDP) with encryption options for robust security.
- Durable Construction: IP65 rating ensures protection against environmental factors for indoor and outdoor use.
- Customisable Functionality: Supports various operating modes and can be configured to meet specific application requirements.
Note: The specific model within the STid ARC1S/BT series will determine the communication protocol and security features. Please refer to the product documentation for detailed specifications.
Full Description
The STid DESFire And Bluetooth Mullion Reader: Sleek Design Meets Advanced Functionality
The STid ARC1S/BT MIFARE DESFire EV3 And Bluetooth Mullion Reader is a cutting-edge mullion reader designed for spaces with limited room. This compact device combines High-Frequency (13.56 MHz) access control cards, NFC, and Bluetooth technologies, offering a flexible and secure access control solution.
Key Features Of The STid ARC1S/BT Series:
- Compact Design: Ideal for installation in narrow spaces like door frames, electrical boxes, or sliding doors.
- Multi-Technology Support: Reads RFID (MIFARE Classic, Plus, DESFire), NFC, and Bluetooth credentials.
- Bluetooth® Functionality: Enables hands-free access, tap-to-open, and voice control for enhanced user experience.
- Durable Construction: IP65 rating ensures protection against environmental factors.
- Flexible Communication: Supports multiple communication protocols (TTL, Wiegand, RS485, OSDP) for seamless integration.
- Customisable Options: Available in various models with different communication protocols and security levels.
Technical Specifications:
- Reading Technologies: MIFARE Classic, Plus, DESFire, NFC, Bluetooth
- Communication Protocols: TTL, Wiegand, RS485, OSDP
- Power Supply: 9 – 15 VDC
- Operating Temperature: -30°C to +70°C
- Dimensions: 111.5 x 42.2 x 22 mm
- Housing: ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
- Protection: IP65, accelerometer-based tamper detection
- See Full Data Sheet.
Available Models:
Read Only:
-
- ARC1S-R31-B/BT1-xx/1 – Secure – TTL Wiegand or Clock & Data
- ARC1S-R31-B/PC2-3x/1 – Easyline pre-configured offer – Wiegand
- ARC1S-S31-B/BT1-xx/1 – Secure / Secure Plus – Enciphered TTL Wiegand or Clock & data
- ARC1S-R33-B/BT1-7AB/1 – Secure – RS485
- ARC1S-R33-B/BT1-7AA/1 – Secure / EasySecure decoder – RS485
- ARC1S-S33-B/BT1-7AB/1 – Secure / Secure Plus – Enciphered RS485
- ARC1S-S33-B/BT1-7AA/1 – Secure / Secure Plus / EasySecure decoder – Enciphered RS485
Controlled By Protocol:
-
- ARC1S-W33-B/BT1-7AA/1 – Secure – SSCP v1 RS485
- ARC1S-W33-B/BT1-7AD/1 – Secure – SSCP v2 RS485
- ARC1S-W33-B/BT1-7OS/1 – Secure – OSDP v1 & v2 RS485
Benefits Of The STid MIFARE DESFire EV3 And Bluetooth Mullion Reader:
- Space-Saving Design: Ideal for installations with limited space.
- Enhanced Security: Multiple identification methods and tamper protection for enhanced security.
- User Convenience: Bluetooth functionality offers hands-free access and flexible options.
- Versatility: Supports various communication protocols for easy integration.
- Durability: IP65 rating ensures reliable performance in challenging environments.
Ideal Applications:
- Access control in narrow spaces like doors, elevators, and turnstiles
- Secure entry points in offices, retail stores, and industrial facilities
- Mobile access solutions for employees and visitors
Product Specifications
| Dimensions | 111.5 × 42.2 × 22 mm |
|---|---|
| Brand | STid |
| Device Type | Reader |
| Reader and Card Technology | Bluetooth, NFC, MIFARE, DESFire |
| Operating Temperature | -30°C to 70°C |
| Power Requirement | 9 – 15 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz, Bluetooth, NFC |
| Mounting | Mullion |
| Protection Rating | IP65 |
| Reader Mode | Controlled by Protocol (Read Write), Read Only, Secure + Read |
| Versions | Easyline Pre-Configured – Wiegand, EasySecure Decoder – Encrypted RS485, EasySecure Decoder – RS485, Encrypted RS485, Encrypted TTL Wiegand or Clock & Data, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data |
| SKU | STID-ARC1S-R31-B/BT1-xx/1, STID-ARC1S-R31-B/PC2-3x/1, STID-ARC1S-S31-B/BT1-xx/1, STID-ARC1S-R33-B/BT1-7AB/1, STID-ARC1S-R33-B/BT1-7AA/1, STID-ARC1S-S33-B/BT1-7AB/1, STID-ARC1S-S33-B/BT1-7AA/1, STID-ARC1S-W33-B/BT1-7AA/1, STID-ARC1S-W33-B/BT1-7AD/1, STID-ARC1S-W33-B/BT1-7OS/1 |
