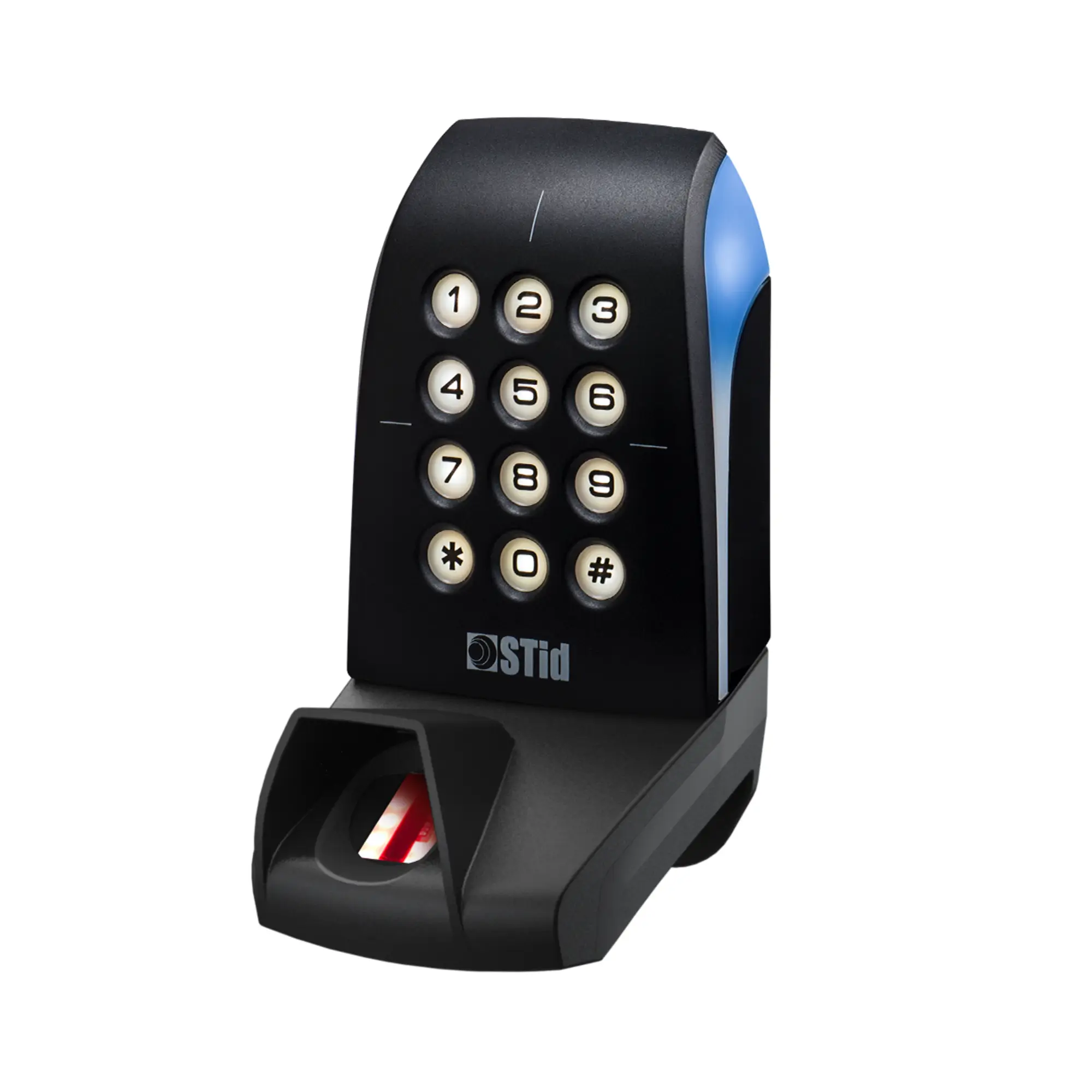

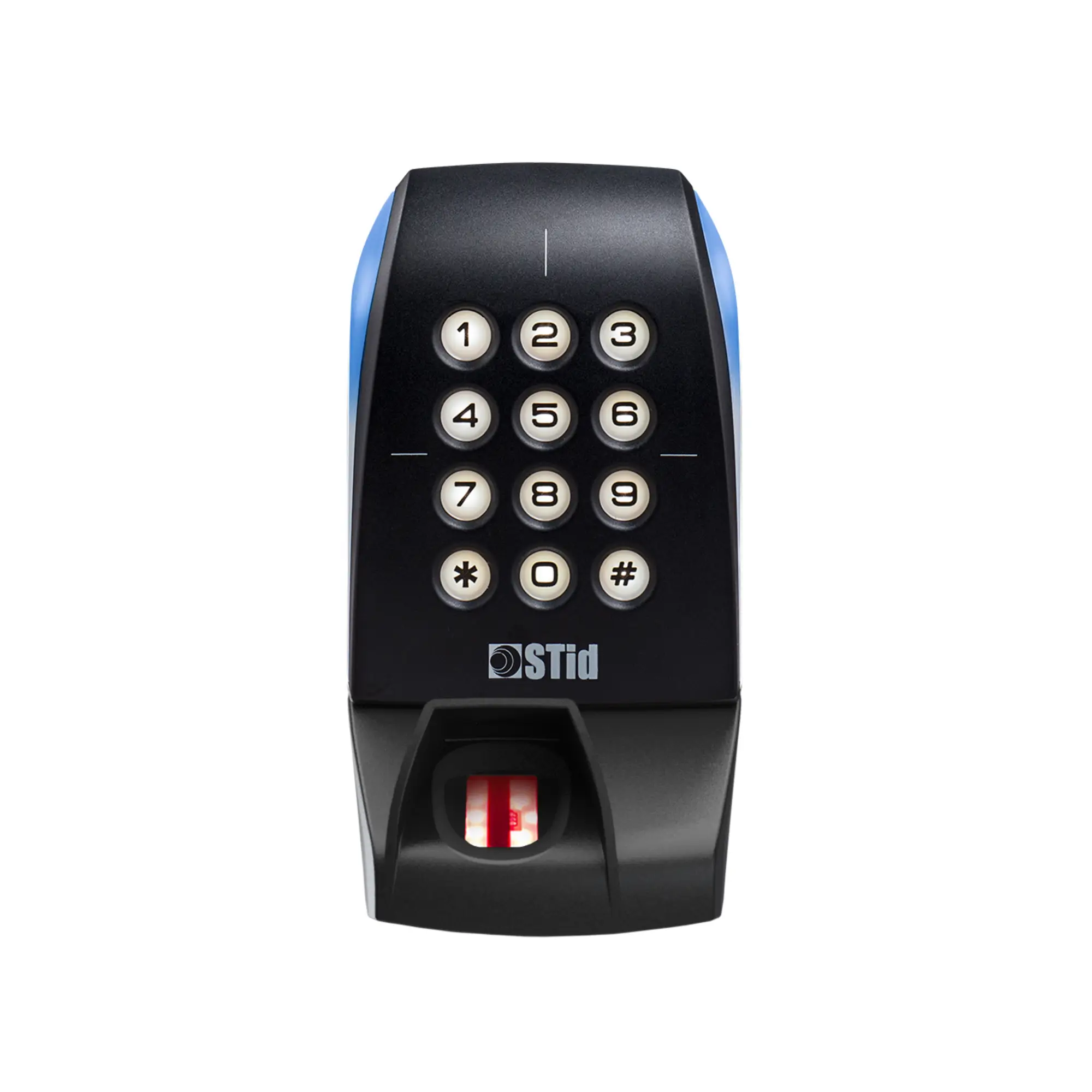

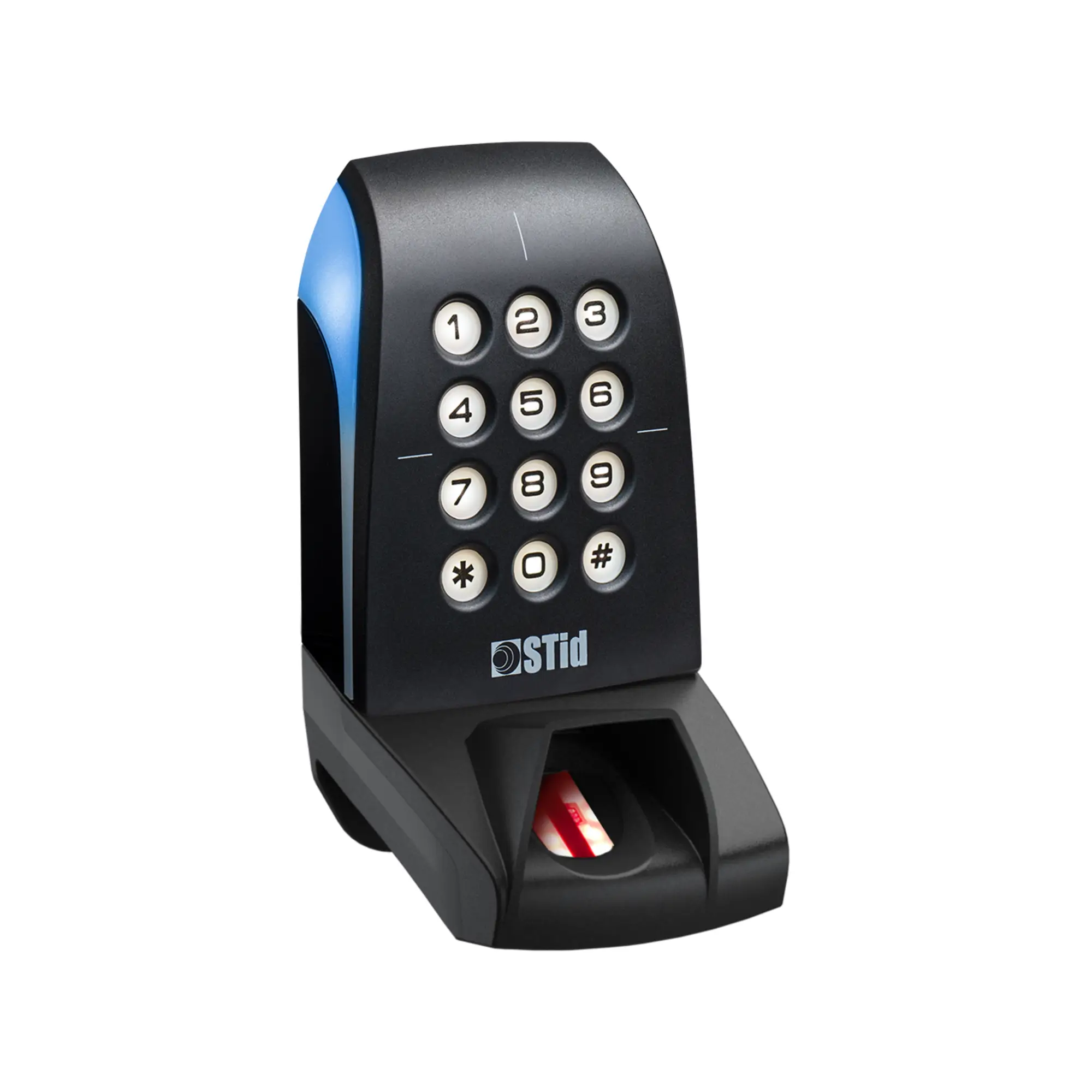

STid ARC-E Series – DESFire EV3 Keypad With Biometric Reader
The STid ARC-E is a powerful and versatile access control reader that offers a high level of security and convenience. By combining biometric fingerprint recognition with MIFARE DESFire EV3 RFID technology and advanced anti-fraud features, this reader provides a robust solution for protecting sensitive areas and assets.
Key Features:
- Multi-Factor Authentication: Combines fingerprint recognition and high frequency card or fob reading, for enhanced security.
- MIFARE DESFire EV3 Compatibility: Supports advanced encryption and data storage capabilities for secure access management.
- Flexible Fingerprint Management: Options for storing fingerprint templates on the card or in the system to accommodate various security requirements.
- Duress Finger Detection: Protects users in threatening situations by allowing for a designated “duress finger” for authentication.
- Anti-Fraud Protection: Advanced features like false finger detection and tamper protection safeguard against unauthorised access.
- Customisable Keypad: Offers additional security and user convenience with a backlit keypad for PIN entry.
- Versatile Communication Options: Supports multiple communication protocols (TTL, Wiegand, RS232, RS485, OSDP) for seamless integration.
Note: Specific models within the ARC-E range offer different communication protocols and features. Please refer to the product documentation for detailed specifications.
Full Description
Enhanced Security with Biometric and DESFire Authentication
The STid ARC-E DESFire EV3 Keypad With Biometric Reader is a cutting-edge access control reader that combines biometric fingerprint recognition with MIFARE DESFire EV3 technology, offering a high level of security and convenience. This versatile reader is designed to meet the demanding requirements of modern access control systems.
Products Within This Range:
Read Only
-
- ARC-R31-E/PH5-xx/1: Secure – TTL Wiegand / Data & Clock
- ARC-S31-E/PH5-xx/1: Secure / Secure Plus – TTL Wiegand / Data & Clock
- ARC-R33-E/PH5-7AB/1: Secure – RS485
- ARC-R33-E/PH5-7AA/1: Secure / EasySecure interface – RS45
- ARC-S33-E/PH5-7AB/1: Secure / Secure Plus – RS485
- ARC-S33-E/PH5-7AA/1: Secure / Secure Plus / EasySecure interface – RS48
Controlled by Protocol
-
- ARC-W33-E/PH5-7AA/1: Secure SSCP V1 – RS485
- ARC-W33-E/PH5-7AD/1: Secure SSCP V2 – RS485
- ARC-W33-E/PH5-7OS/1: Secure OSDP V1 & V2 – RS485
Key Features Of The STid ARC-E Range:
- Biometric Fingerprint Recognition: Provides secure and reliable user authentication with advanced anti-fraud measures.
- MIFARE DESFire EV3 RFID Technology: Supports multiple card types and offers secure data exchange.
- Customisable Fingerprint Management: Flexible options for storing fingerprint templates, including on-card storage for enhanced privacy.
- Duress Finger Detection: Protects users from coercion by allowing for a designated “duress finger” for authentication.
- Tamper Protection: Protects sensitive data and system integrity with an accelerometer-based tamper detection system.
- Backlit Keypad: Enables PIN code entry for added security or alternative access methods.
- Versatile Communication: Supports multiple communication protocols (TTL, Wiegand, RS232, RS485, OSDP) for seamless integration.
Technical Specifications:
- Biometric Technology: Fingerprint recognition
- RFID Technology: MIFARE DESFire EV3
- Communication Protocols: TTL, Wiegand, RS232, RS485, OSDP
- Power Supply: 7-28 VDC
- Operating Temperature: -10°C to +50°C
- Dimensions: 148.6 x 80 x 71.3 mm
- Housing Material: ABS-PC UL-V0
- Protection: IP65 (excluding connectors), accelerometer-based tamper detection
- See Full Data Sheet.
Benefits Of The STid ARC-E DESFire EV3 Keypad With Biometric Reader:
- Enhanced Security: Biometric and secure DESFire authentication provide a robust security solution.
- Flexibility: Multiple communication protocols and customisable fingerprint management options.
- Durability: IP65 rating ensures reliable performance in various environments.
- User Convenience: Backlit keypad and clear display enhance user experience.
- Data Protection: Tamper protection and anti-fraud measures safeguard sensitive information.
Ideal Applications:
- High-security government and corporate facilities
- Data centres and critical infrastructure
- Access control for restricted areas
- Secure residential and commercial buildings
Product Specifications
| Dimensions | 148.6 × 80 × 71.3 mm |
|---|---|
| Brand | STid |
| Device Type | Biometric (Fingerprint Reader), Keypad |
| Reader and Card Technology | Biometric (Fingerprint), DESFire |
| Operating Temperature | -10°C to 50°C |
| Power Requirement | 7-28 VDC |
| Construction | ABS |
| Frequency | 13.56 MHz |
| Mounting | Surface Mount, Wall Mount |
| Protection Rating | IP65 |
| Reader Mode | Controlled by Protocol (Read Write), Read Only, Secure + Read |
| Versions | EasySecure Interface – RS485, OSDP v1 & v2 RS485, RS485, SSCP v1 RS485, SSCP v2 RS485, TTL Wiegand or Clock & Data |
| SKU | STid-ARC-R31-E/PH5-xx/1, STid-ARC-S31-E/PH5-xx/1, STid-ARC-R33-E/PH5-7AB/1, STid-ARC-R33-E/PH5-7AA/1, STid-ARC-S33-E/PH5-7AB/1, STid-ARC-S33-E/PH5-7AA/1, STid-ARC-W33-E/PH5-7AA/1, STid-ARC-W33-E/PH5-7AD/1, STid-ARC-W33-E/PH5-7OS/1 |
