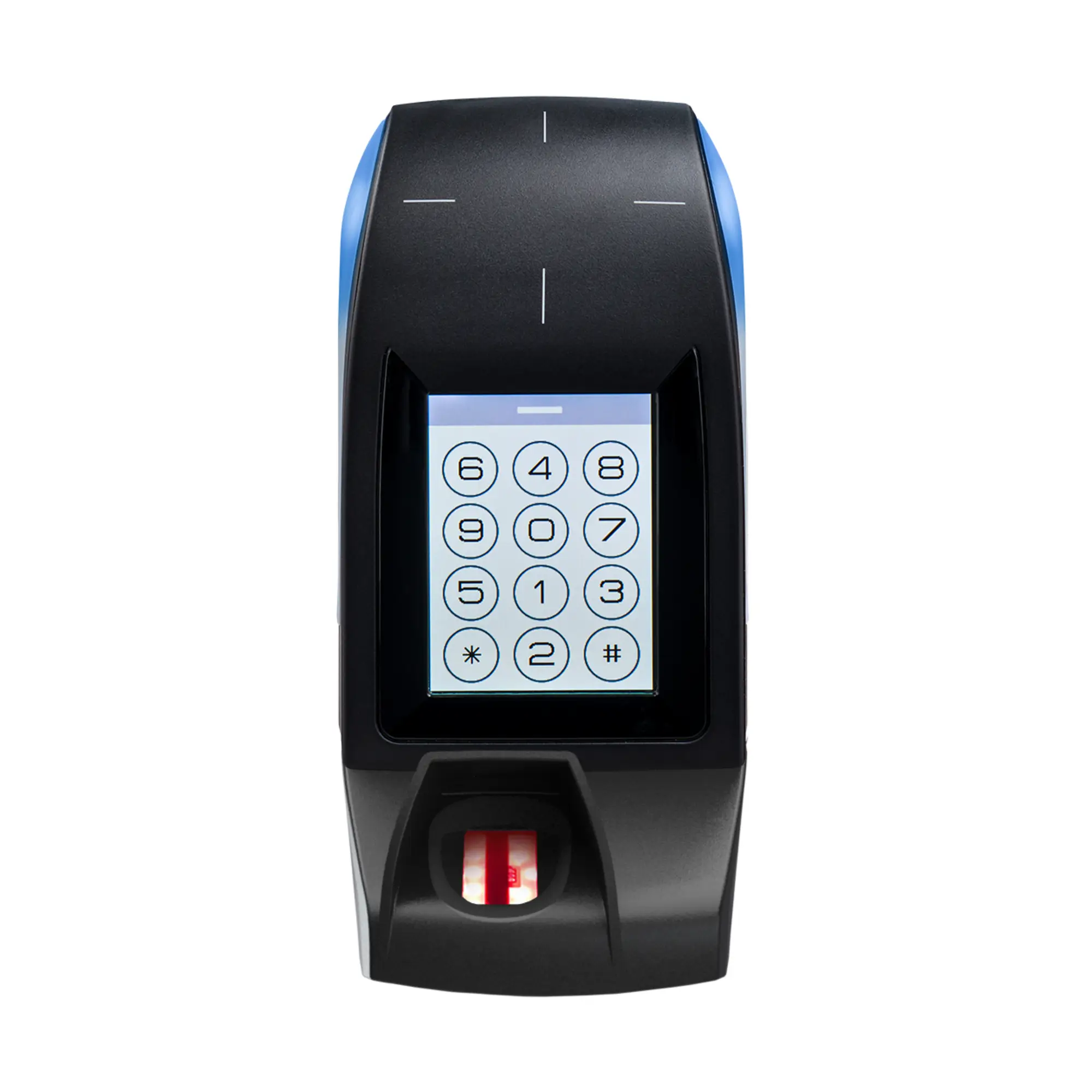

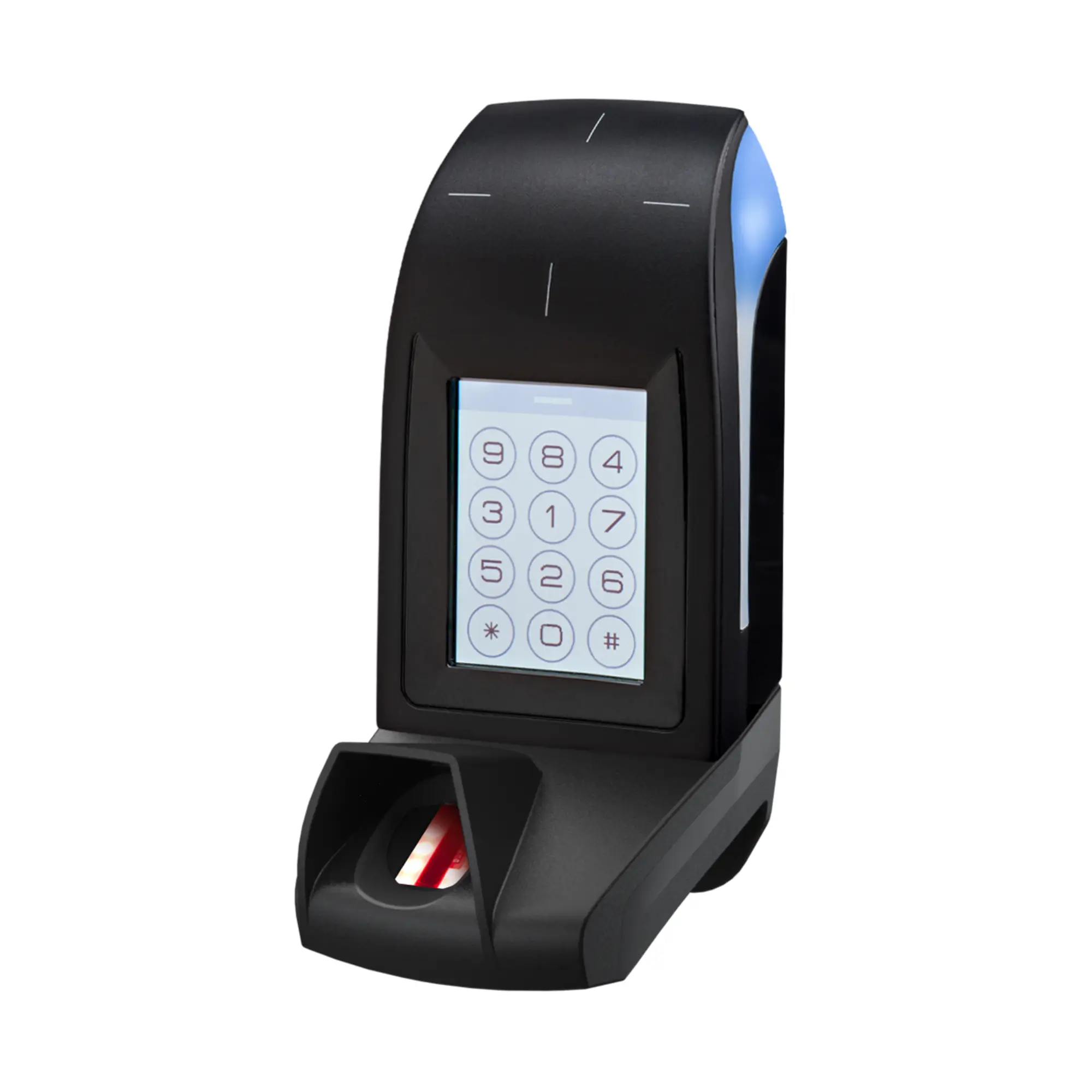

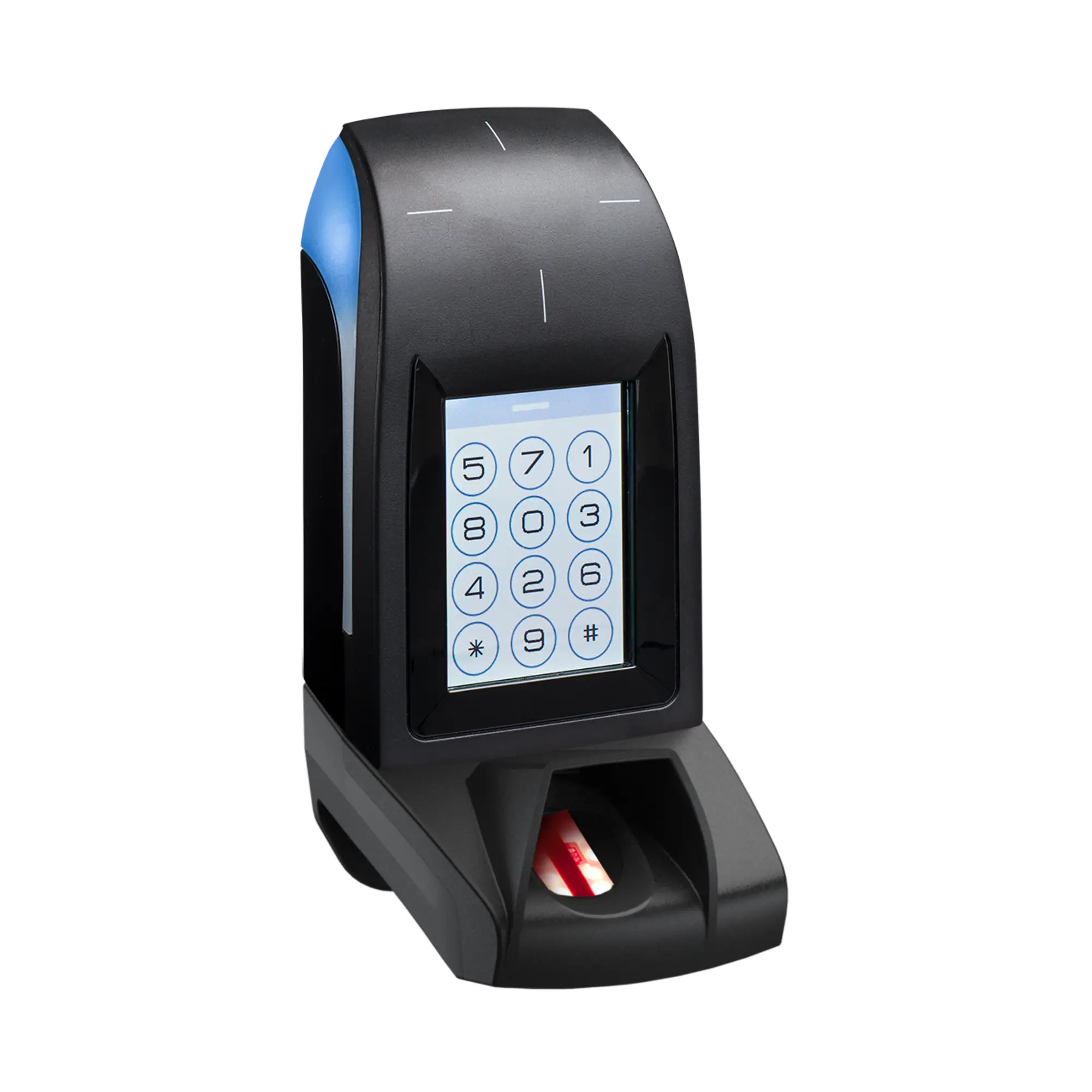

STid ACRS-F/BT: Architect Blue Multi-Tech Touchscreen Fingerprint Reader With NFC

Full Description

Comprehensive Access Control Solution with Touchscreen, Keypad, and Biometric Features

Introducing the STid ACRS-F/BT Series of Architect Blue Multi-Factor Readers, with touchscreen keypad, Bluetooth and fingerprint scanner is a cutting-edge access control reader that combines biometric fingerprint recognition, a tactile keypad, RFID technology, and Bluetooth capabilities, providing a robust and versatile solution for secure access management.

Available Models:

Read Only:

• • ARCS-R31-F/BT1-xx/1: Secure – TTL Wiegand / Clock & Data
  • ARCS-S31-F/BT1-xx/1: Secure / Secure Plus – TTL Wiegand / Clock & Data
  • ARCS-R33-F/BT1-7AB/1: Secure – RS485
  • ARCS-R33-F/BT1-7AA/1: Secure / EasySecure interface – RS485
  • ARCS-S33-F/BT1-7AB/1: Secure / Secure Plus – RS485
  • ARCS-S33-F/BT1-7AA/1: Secure / Secure Plus / EasySecure interface – RS485

Controlled by protocol:

• • ARCS-W33-F/BT1-7AA/1: SSCP v1 – RS485
  • ARCS-W33-F/BT1-7AD/1: SSCP v2 – RS485
  • ARCS-W33-F/BT1-7OS/1: OSDP v1 & v2 – RS485

Key Features Of The STid ACRS-F/BT Series:

• Multi-Factor Authentication: The STid ACRS-F/BT features enhanced security with biometric fingerprint scanner, 13.56 MHz MIFARE DESFire EV2 & EV3, and keypad options.
• Touchscreen Interface: Intuitive user interaction with customisable displays.
• MIFARE DESFire EV2 and EV3 Compatibility: Supports advanced encryption and data storage.
• Bluetooth Functionality: Enables hands-free access and remote management.
• Anti-Fraud Measures: Protects against counterfeit fingerprints and other threats.
• Tamper Protection: Ensures data security with a patented motion sensor pull detection system.
• Versatile Communication Options: Supports multiple communication protocols (TTL, Wiegand, RS485, OSDP).

Technical Specifications of The Architect Blue Multi-Factor Reader With Touchscreen Keypad:

• Technology: Fingerprint, MIFARE DESFire EV2 and EV3, Bluetooth, NFC
• Communication: TTL, Wiegand, RS485, OSDP
• Power Supply: 7 – 28 VDC
• Operating Temperature: -10°C to +50°C
• Dimensions: 166.2 x 80 x 71 mm
• Housing: ABS-PC UL-V0
• Protection: IP65, accelerometer-based tamper detection
• See Full STid ARCS-F/BT Data Sheet

Benefits:

• Enhanced Security: Biometric, RFID, and keypad provide robust protection against unauthorized access.
• User Convenience: Touchscreen and keypad offer intuitive user interaction.
• Flexibility: Multiple identification options and communication protocols for various applications.
• Durability: Built to withstand harsh environments and protect against tampering.
• Versatility: Suitable for a wide range of access control needs.

Ideal Applications of the STid ACRS-F/BT Series:

• High-security environments like government facilities, data centres, and financial institutions
• Access control for offices, factories, and industrial sites
• Residential access control for gated communities and apartment buildings
• Secure access to sensitive areas within buildings
