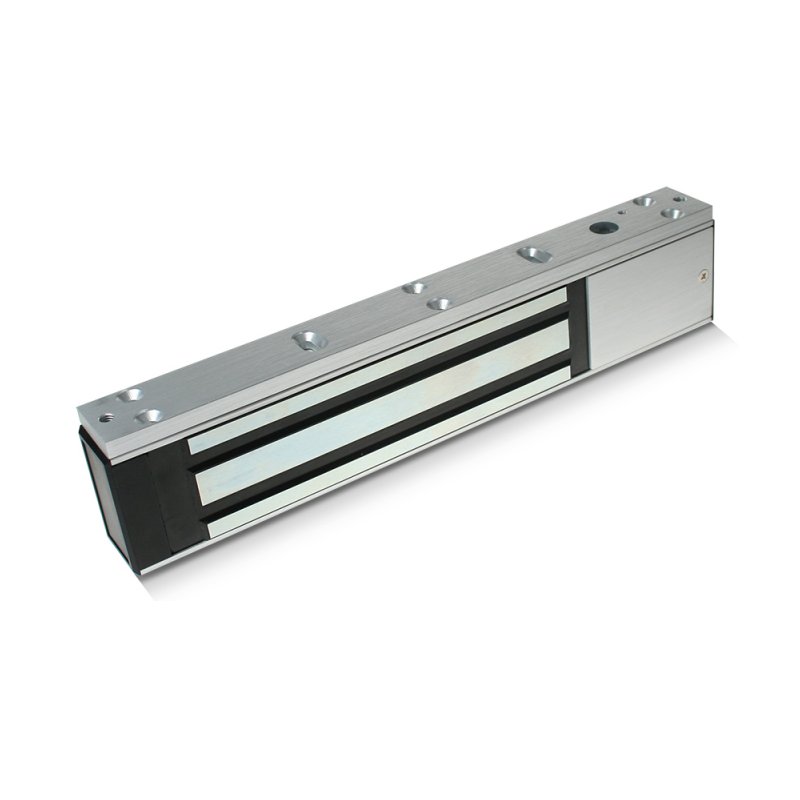

SR1-MAG-800 Midi Maglock
Intended application: For heavier traffic doors
Up to 363 Kg (800 Lbs) holding force with jumper-pin selectable operating voltage (12V or 24V DC) and can be installed on all type of door frames such as hollow, wooden and frameless glass doors.
A monitored version is also available – a Hall-effect sensor monitor output (SPDT contact rated 3A @12 VDC) remotely monitors the door lock / unlock status – please contact us for details.
- Voltage: 12 VDC or 24 VDC – selectable at installation
-
Voltage tolerance: ±15%
-
Current:
-
500mA @ 12VDC (at temperature 20°C)
-
250mA @ 24VDC (at temperature 20°C)
-
-
Operating Temperature: -10°C to 55°C (14° to 131°F)
-
Humidity: 0% to 95% non-condensing
-
Typical surface temperature when powered: current temperature plus 20%
-
Holding Force: Up to 363 Kg (800 Lbs)
-
Dimensions:
-
Magnet: 270mm (L) x 48mm (W) x 29mm (D)
-
Armature Plate: 185mm (L) x 45mm (W) x 14mm (D)
-
Mounting Plate: 268mm (L) x 45mm (W) x 11mm (D)
-
-
Approximate nominal weight: 3.0 Kg
-
Unique Anti-Residual design: push-off button to overcome residual magnetism and release the armature smoothly.
-
Hall-effect sensor monitor output (SPDT contact rated 3A @12 VDC) remotely monitors the door lock / unlock status (monitored version model 800M only).
Product Specifications
| Weight | 3000 g |
|---|---|
| Brand | Smart R Distribution |
| Holding Force | 800 Lbs |
| Construction | Aluminium |
| Operating Temperature | -10°C to 55°C |
| SKU | SR1-MAG-800 |
