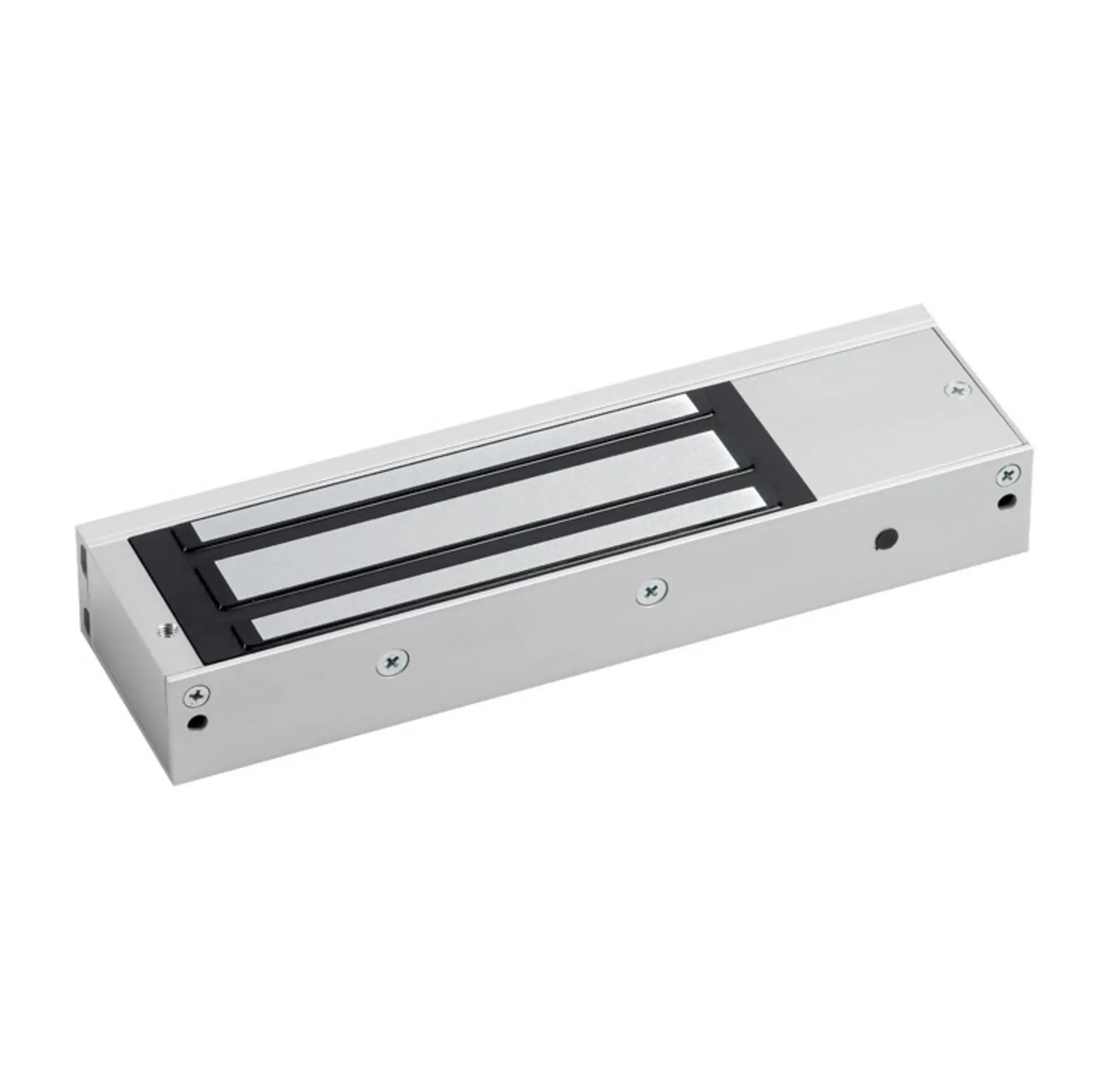

SR1-MAG-1200 Series Standard Monitored Maglock With Optional Door Status Monitoring

Full Description

SR1-MAG-1200 Series: Robust Design, Real-Time Monitoring, and Versatile Configuration

The SR1-MAG-1200 Series Standard Monitored Maglock With Optional Door Status Monitoring offer dependable monitored maglocks designed for secure access control in various indoor applications. These maglocks provide a holding force of up to 545kg (1200lbs), ensuring a strong and reliable door lock. With the option for door status monitoring (SR1-MAG-1200DM), you can enhance your security system’s awareness of door activity.

Key Features (Common to Both Models):

• High Holding Force: Delivers a strong lock (up to 545kg) for dependable door security.
• Monitored Operation: Provides LED lock status indication and relay contacts for integration with access control systems.
• Dual Voltage Compatibility: Selectable operation on either 12VDC or 24VDC power supply for flexibility.
• Surface Mount Design: Simplifies installation on various surfaces.
• Durable Construction: Silver anodized aluminium finish ensures long-lasting performance.

Model Variations:

• SR1-MAG-1200M: Standard monitored maglock with essential features for access control.
• SR1-MAG-1200DM: Standard monitored maglock with door status monitoring, providing additional security awareness.

Additional Features (SR1-MAG-1200DM Only):

• Door Status Monitoring: Provides contacts that signal the door’s open or closed position for enhanced system monitoring.

Specifications:

• Model: SR1-MAG-1200M (Standard Monitored), SR1-MAG-1200DM (Standard Monitored with Door Status)
• Holding Force: Up to 545kg (1200lbs)
• Voltage: Selectable 12VDC or 24VDC
• Current Draw: 500mA @ 12VDC / 250mA @ 24VDC
• Mounting: Surface Mount
• Material: Silver Anodized Aluminium
• Additional Feature (SR1-MAG-1200DM): Door Status Monitoring Contacts

Benefits of Standard Monitored Maglocks:

• Enhanced Security: Provides a robust and reliable locking mechanism for access control.
• Real-Time Monitoring: LED status indication and relay contacts offer valuable system feedback.
• Flexible Installation: Dual voltage compatibility and surface mount design simplify integration.
• Cost-Effective Solution: The SR1-MAG-1200M offers a practical choice for basic access control needs.

Benefits of Standard Monitored Maglock with Door Status Monitoring (SR1-MAG-1200DM):

• Increased Security Awareness: Door status monitoring contacts provide valuable information for security systems.
• Improved System Response: Allows systems to react to door activity in real-time (e.g., triggering alarms).

Ideal Applications:

• Office Buildings: Secures entrances and restricts access to authorised personnel.
• Retail Stores: Controls access to backroom areas or after-hours entry.
• Apartment Buildings: Enhances building security for resident safety.
• Public Buildings: Provides controlled access in libraries, schools, or government facilities.
