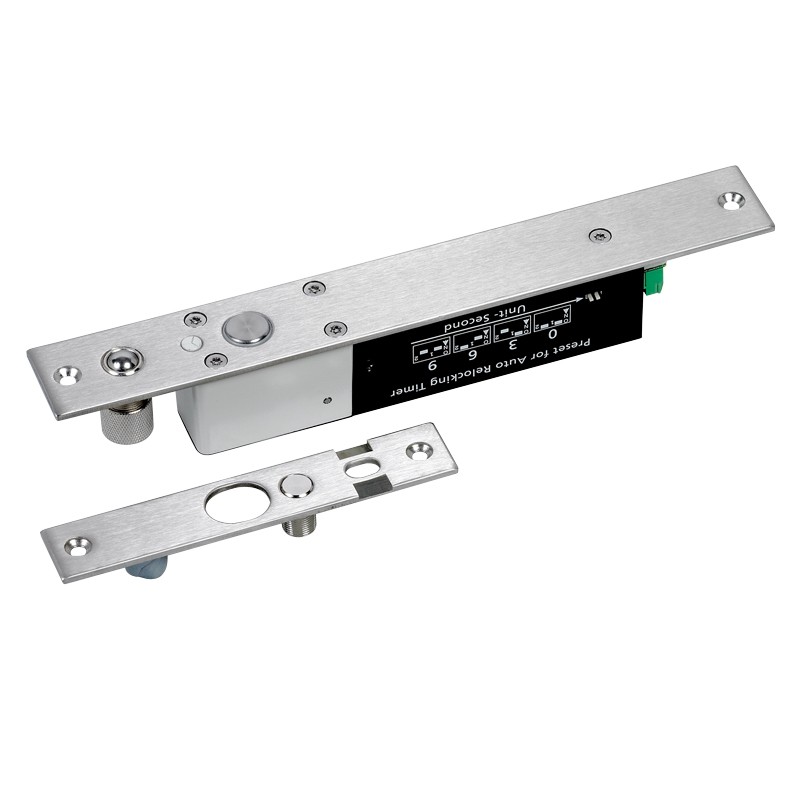

SR1-EDB-262 Electric drop bolt lock – monitored

Intended for double-action doors (swing in or out)

A unique intelligent logical circuit keeps the bolt retracted until the door closed.

The SR1-EDB-262 electric dropbolt lock can be installed either horizontally on the header of the doorframe or vertically on the side of the door or doorframe.

Auto Relocking Timer Setting: use jumpers to adjust the auto-relocking timer for between 0 to 9 seconds for door locking time delay.

Greater security is provided by the 16mm diameter solid stainless steel bolt with hardened magnet
core, which is resistant to metal cutting saws and also rotates freely, making attempts to tamper or cut extremely difficult.

Roller ball guide helps centre a swing through door.
Fail-Safe operation
Voltage: 12 VDC
Voltage tolerance: ±10%
Current: Pull in: 0.9A, Holding: 0.3A @ 12 VDC (at temperature 20°C)
Operating Temperature: -10°C to +45°C
Humidity: 0% to 95% non-condensing
Rectangular-shaped faceplate
Face Plate Material: stainless steel
Magnetic bolt status monitor output: SPDT rated 3A @ 30 VDC
Auto-relocking Time Delay : 0, 3, 6 or 9 seconds
Dimensions:
Lock (overall): 262mm (L) x 35mm (W) x 38 (D)
Keep: 140mm (L) x 25.5mm (W) x 3mm (D)
Approximate nominal weight: 1.2 Kg
