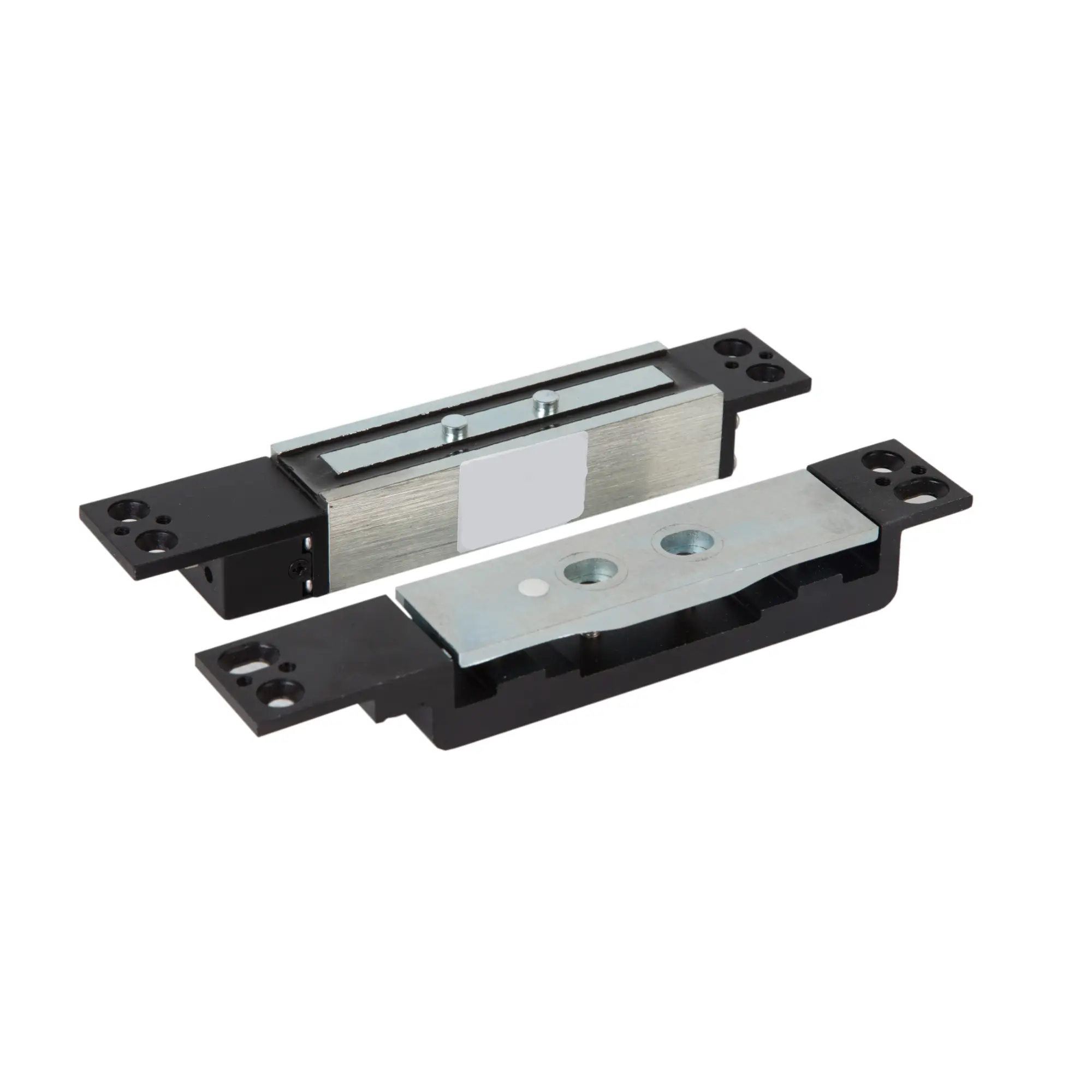

RGL MSL-2600 – Fire Resistant Shear Lock

Full Description

A Heavy-Duty Electromagnetic Lock with Automatic Relocking and Fire-Resistant Build

The RGL MSL-2600 – Fire Resistant Shear Lock redefines security for demanding applications. This electromagnetic lock boasts an exceptional 2600lbs holding force, automatic repeated locking, and a fire-resistant construction, making it the ideal choice for securing high-traffic doorways and restricted areas.

Key Features:

• Superior Holding Force: Delivers an impressive 2600lbs (1200kg) of holding force for maximum door security.
• Automatic Relocking: Automatically re-engages the lock after the door is opened and closed, enhancing security (up to 60 times).
• Fire-Resistant Build: Constructed from fireproof materials for added safety and peace of mind.
• Door Open Delay Timer: Provides programmable delay between door unlocking and re-locking (0.5 to 25 seconds).
• Door Position Detection Outputs: Offers real-time monitoring of door status (open/closed).
• Automatic Voltage Adjustment: Self-regulates to function with either 12V or 24V DC power.
• Low Power Consumption: Efficient operation with minimal current draw (holding current: 220mA @ 12VDC/190mA @ 24VDC).
• Monitoring Relay: Provides dry contact outputs for door lock status monitoring (NO & NC contacts, 24V/1A).
• Suitable for Wood and Aluminium Doors: Offers versatility for various door types.
• Magnetic Shear Design: Provides a clean aesthetic with concealed installation.
• Mounting: Designed for easy and efficient installation (For horizontal mounting only).
• See Full Data Sheet

Benefits of the RGL MSL-2600:

• Unmatched Security: Exceptional holding force, automatic re-locking, and fire-resistant construction create a robust security solution.
• Enhanced Convenience: Door open delay timer allows for programmed re-locking and door position detection outputs provide real-time monitoring.
• Simplified Installation: Automatic voltage adjustment and horizontal mounting design streamline the installation process.
• Versatility: Suitable for use with both wooden and aluminium doors.
• Cost-Effective Operation: Low power consumption ensures efficient operation.

Ideal Applications For A Fire Resistant Shear Lock:

• Office Buildings: Secure server rooms, data centres, and high-traffic entryways.
• Retail Stores: Control access to back offices, stockrooms, and high-value merchandise areas.
• Educational Facilities: Restrict access to classrooms, laboratories, and restricted areas.
• Hospitals and Healthcare Facilities: Safeguard patient care areas, pharmacies, and equipment storage.
• Leisure and Hospitality Facilities: Secure building entrances, staff areas, and equipment storage.

Technical Specifications:

• Holding Force: 2600lbs (1200kg)
• Power Input: 12 or 24V DC (auto-adjusting)
• Operating Current: 900mA @ 12V or 24V DC
• Holding Current: 220mA @ 12VDC/190mA @ 24VDC
• Operating Temperature: 0-90°C
• Door Open Delay Timer: 0.5-25 seconds (adjustable)
• Monitoring Relay: NO & NC contacts (rated 24V/1A)
• Magnetic Distance (Maximum):
  • 3mm @ 12VDC
  • 5mm @ 24VDC

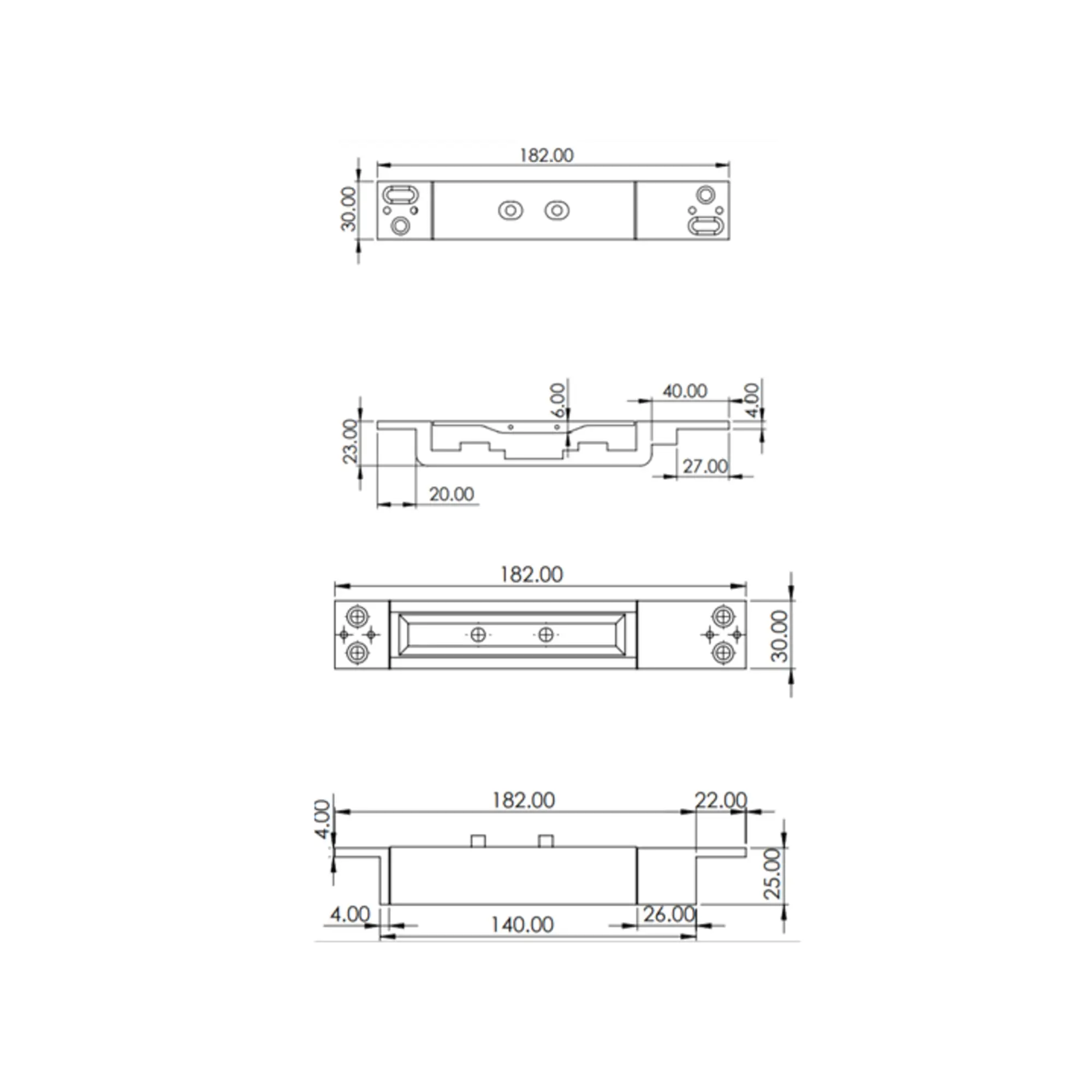

• Dimensions: 182 x 25 x 30mm (unboxed weight: 582g)
