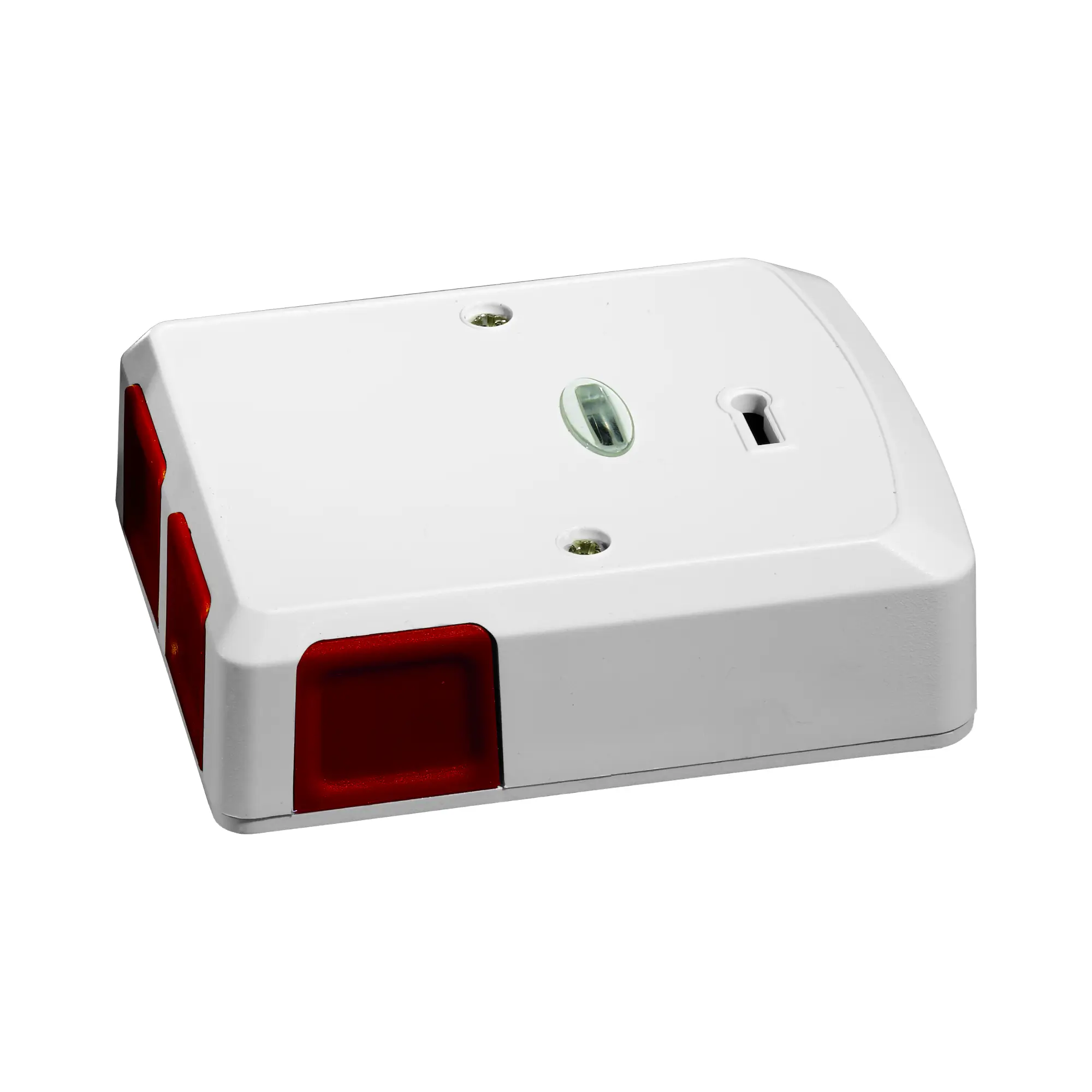

Knight Fire & Security PA4W: 4-Button Electronic Confirmation Panic Button with Selectable Resistors
Elevate your security system with the Knight Fire & Security PA4W, a sophisticated Grade 3 electronic confirmation panic button. Designed to meet the rigorous standards of PD6662:2017, this device offers advanced features and reliable performance.
Key Features:
- Grade 3 Security: Meets the highest industry standards for security and reliability.
- Electronic Confirmation: Requires two separate actions to confirm an alarm, reducing the risk of accidental activation.
- 4-Button Design: Offers flexibility in button configuration to suit your specific needs.
- Selectable Resistors: Compatible with a wide range of control panels.
- Tamper-Proof Design: Detects and alerts you to any attempts to tamper with the device.
- Clear LED Indicators: Visually confirms button presses and alarm status.
- Durable Construction: Built to withstand harsh environments.
- Latching Options: Selectable Latching or Non-Latching option
- Easy Installation: Simple to install and configure.
IMPORTANT: DEVICE REQUIRES 12V SUPPLY AND 2 ZONES
Full Description
Advanced Security with the 4-Button Electronic Confirmation Panic Button
The Knight Fire & Security PA4W is a sophisticated Grade 3 electronic confirmation panic button designed to provide enhanced security and flexibility. This device offers multiple activation options, tamper detection, and compatibility with various control panels.
Key Features:
- Electronic Confirmation: Requires specific button sequence for activation, preventing accidental alarms.
- Four-Button Design: Offers multiple activation options for different emergency scenarios.
- Selectable Resistors: Compatible with a wide range of control panels.
- Rear Tamper Switch: Detects unauthorised removal or tampering with the device.
- LED Indicators: Provide visual feedback on device status.
- Durable Construction: Robust design for long-lasting performance.
- Easy Installation: Simple and straightforward installation process.
Technical Specifications Of The PA4W:
- Grade: Grade 3
- Activation Type: Electronic Confirmation
- Tamper: Rear Tamper
- Environmental Class: 2
- Material: ABS
- Dimensions: 84mm x 65mm x 26 mm
- Mounting: Surface Mount
- Power Supply: 12V DC
- See Full Data Sheet
Benefits of a 4-Button Electronic Confirmation Panic Button:
- Enhanced Security: Electronic confirmation and tamper detection prevent false alarms and unauthorised access.
- Flexibility: Selectable resistors for compatibility with various control panels.
- Reliability: Ensures prompt emergency response.
- Easy Installation: Simple and straightforward installation process.
- Durable Construction: Built to withstand harsh environments.
Ideal Applications:
- Commercial buildings
- Schools and universities
- Healthcare facilities
- Industrial facilities
- Retail stores
Product Specifications
| Dimensions | 84 × 65 × 26 mm |
|---|---|
| Brand | Knight Fire & Security |
| Device Type | Panic Button |
| Alarm Resistor Values | 1k, 2k2, 4k1, 4k7, 5k6, 6k8 |
| Grading and Compliance | Grade 3 |
| Construction | ABS |
| Colours | White |
| Connection Type | Wired |
| Power Requirement | 12 VDC |
| SKU | KFS-PA4W |
