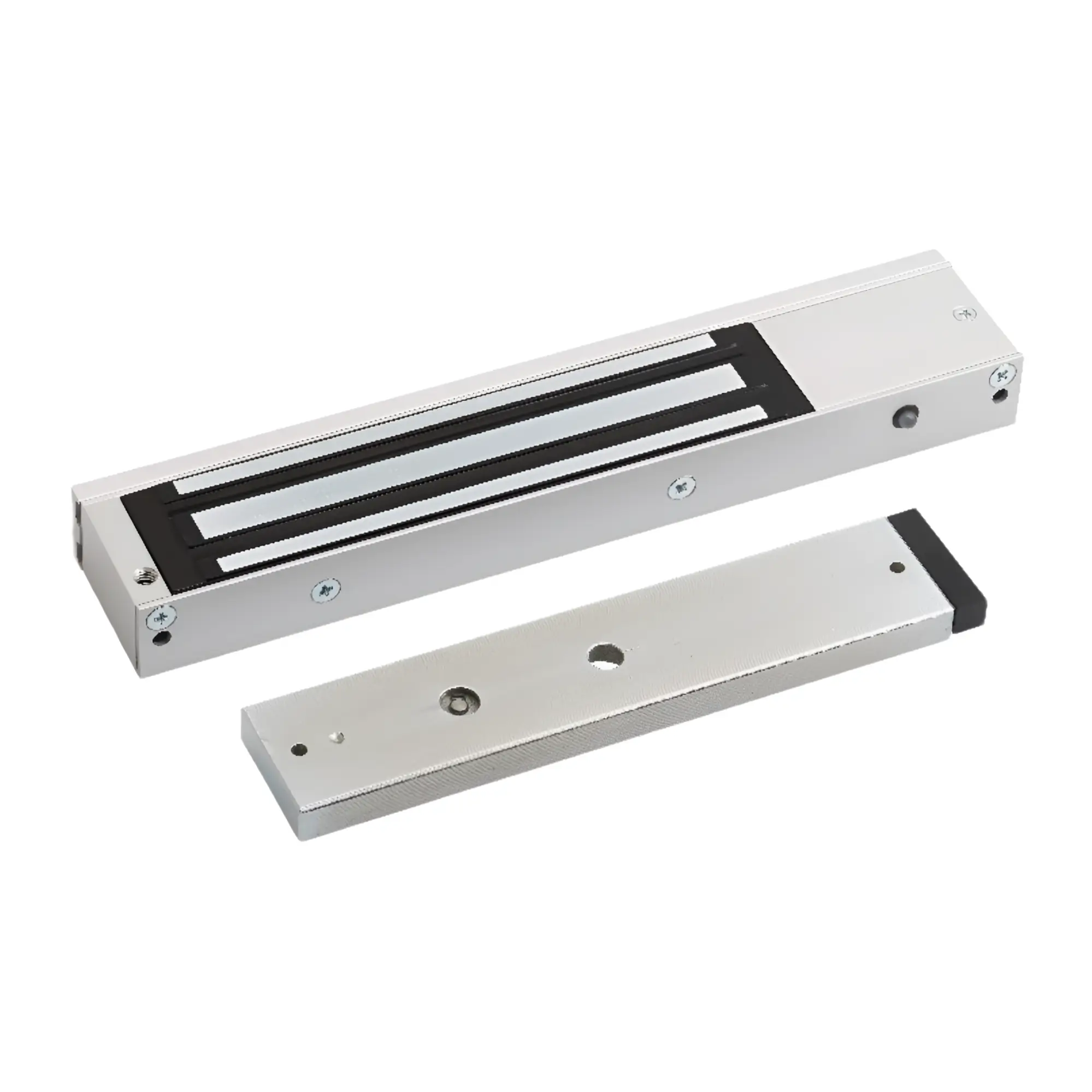

Monitored Mini Maglocks with Door Status Monitoring (Optional)

Full Description

Reliable Locking and Real-Time Monitoring

The Monitored Mini Maglocks series provides a choice of door status monitoring to offer a comprehensive solution for access control applications. These compact electromagnetic locks provide a strong holding force, while the integrated monitoring features allow for real-time status updates, enhancing security and control. Choose between two models:

• SR1-MAG-600DM: Monitored Mini Maglocks provide lock monitoring with LED status indication and relay contacts.
• SR1-MAG-600M: Offers both lock monitoring and door status monitoring with reed switch contacts.

Key Features (Apply to Both Products):

• Slim Design: Discreet and space-saving, ideal for installations where aesthetics are a concern.
• High Holding Force: Delivers up to 275kg (600lb) of holding force for secure door locking.
• Dual Voltage Operation: Selectable for 12Vdc or 24Vdc power supply compatibility.
• Surface Mount Installation: Simple and straightforward for efficient setup.
• Silver Anodised Aluminium Finish: Offers a sleek and modern aesthetic.
• MOV Surge Protection: Safeguards against electrical spikes and surges.
• Fail-Safe Operation: Door unlocks when power is lost, ensuring safe egress.
• Anti-Residual Magnetism Protection: Prevents lingering magnetism for reliable locking.
• Top-Plate, Armature-Plate, and Fixings Included: Provides all necessary components for installation (excluding power supply).
• Red/Green LED Lock Status Indicator: Provides visual indication of lock status (locked/unlocked).
• Relay: COM/NO/NC (1A@24Vdc): Allows for integration with access control systems for signalling purposes.

Additional Feature (SR1-MAG-600M Only):

• Monitored Mini Maglocks with Door Status Monitoring: Includes reed switch contacts to monitor door position (open or closed), ideal for integrating with access control systems for improved security and logging.

Benefits of Monitored Mini Maglocks:

• Enhanced Security: Monitor lock status and, for the SR1-MAG-600M, door position in real-time for improved security awareness.
• Reliable Locking: High holding force ensures secure door control.
• Improved Access Control: Integrate with access control systems for centralised management and monitoring.
• Easy Installation: Surface mount design simplifies setup.
• Visual Lock Status Indication: The LED indicator provides a quick and clear lock status check.

Ideal Applications:

• Retail Stores: Securing backroom doors or display cases with real-time monitoring capabilities.
• Office Buildings: Restricting access to sensitive areas and monitoring entry/exit points.
• Hospitals and Clinics: Securing patient care areas, storage rooms, and medication cabinets with added monitoring for increased security.
• Schools and Universities: Controlling access to classrooms, laboratories, and restricted areas with real-time monitoring for safety and security.
• Residential Buildings: Adding an extra layer of security to apartment entrances with monitoring capabilities (subject to local regulations).
