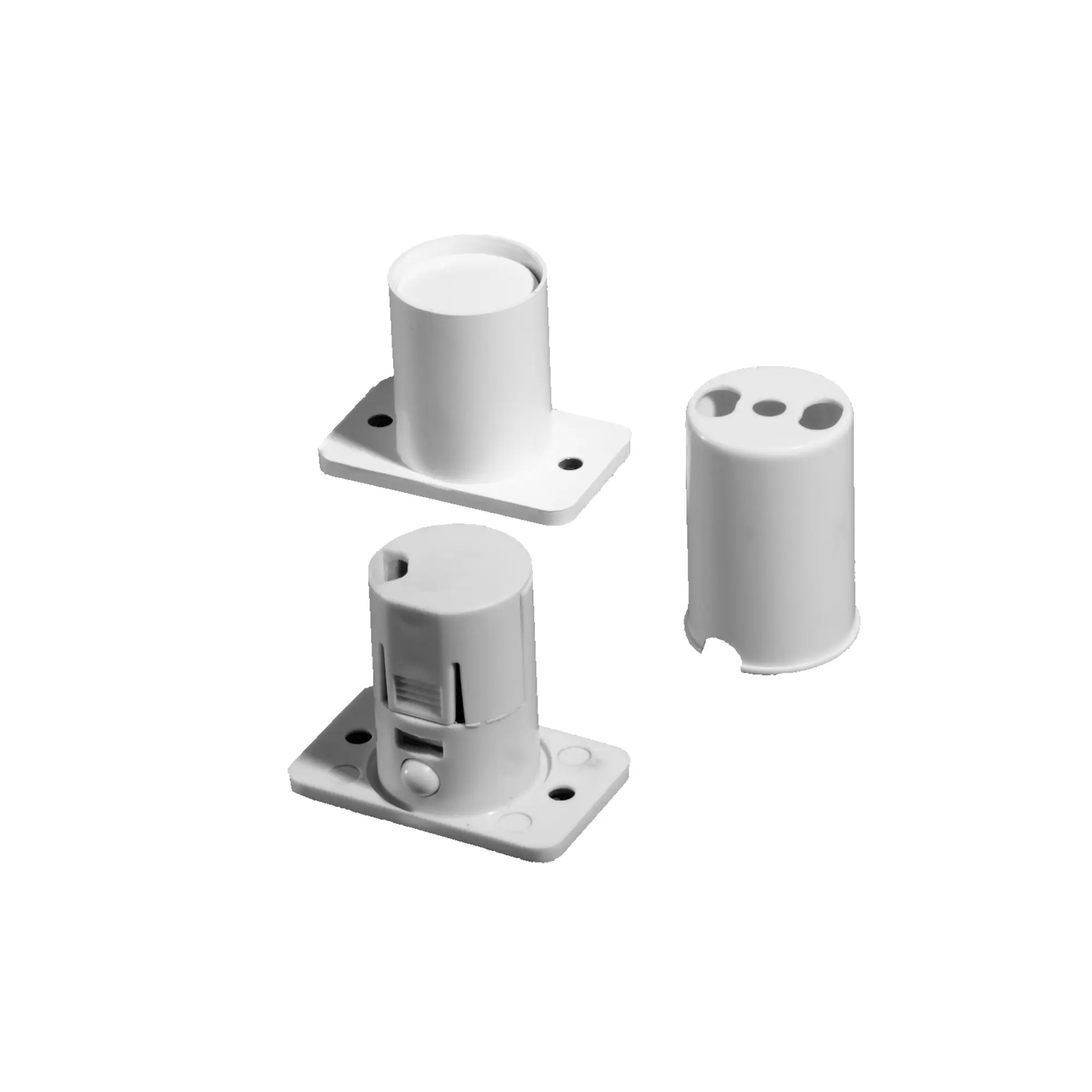

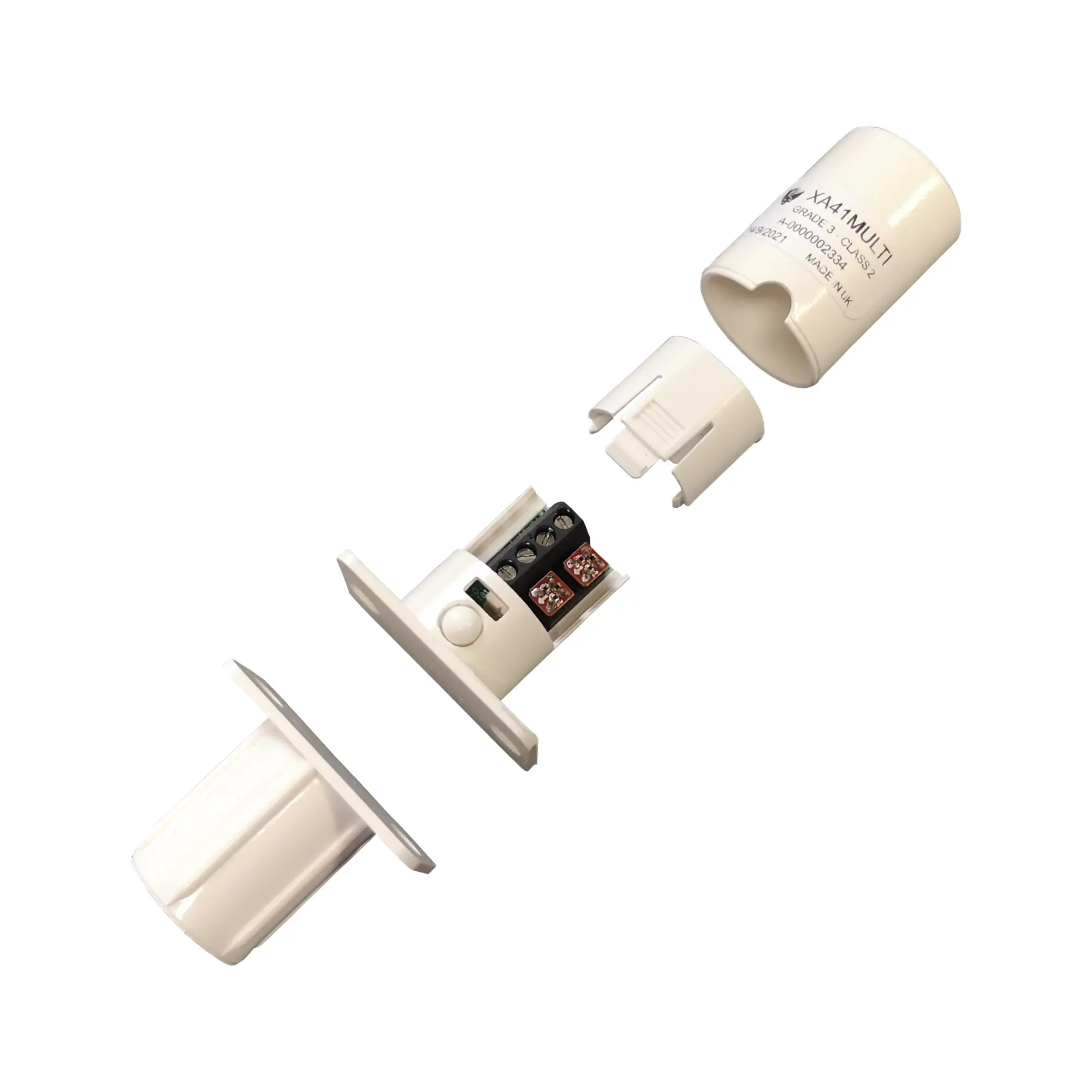

Knight Fire & Security XA41MULTI – Grade 3 Quickfit Flush Contact with Resistors
The Knight Fire & Security XA41MULTI is a Grade 3 quickfit flush contact with multi-resistor compatibility for all major UK panels. Designed for double doors, it features a tamper microswitch, 4-terminal block, and easy resistor selection via PCB jumpers. EN50131-2-6 compliant, this versatile contact is ideal for shared zones, series wiring, or standalone installations.
Key Features:
- Grade 3 Security Compliance – Certified to EN50131-2-6, making it suitable for high-risk installations.
- Quickfit Flush Contact – 20mm diameter body with a 30mm depth for easy installation.
- Double-Door Compatibility – Designed for shared zones, series wiring, and standalone installations.
- 4-Terminal Block Design – Secure wiring connections for efficient installation.
- Multi-Resistor Selection via PCB Jumpers – Compatible with major UK control panels, including:
- Honeywell, Ademco, Orisec, Scantronic, Guardtec/ RISCO, Menvier, HKC, Siemens, Europlex, Guardall, DSC, Texecom, Pyronix, Castle, PACOM Control, Inner Range Panels.
- Tamper Protection – Features a TACT microswitch tamper for enhanced security.
- 14mm Operating Gap – Reliable detection while preventing false alarms.
Full Description
Grade 3 Flush Contact with Multi Resistors For All Panels
The Knight Fire & Security XA41MULTI is a high-security flush contact engineered for Grade 3 installations, offering quickfit installation and universal compatibility with all major UK control panels. Designed for double-door setups, this tampered contact provides maximum security and flexibility with multi-resistor selection via easy-to-use PCB jumpers.
With a robust 4-terminal block, the XA41MULTI can be installed in shared zones, double doors, or series wiring configurations. Its TACT microswitch tamper ensures enhanced protection, while the 14mm operating gap delivers reliable performance.
Meeting the BS EN50131-2-6:2008 standard, this Grade 3 flush contact is ideal for commercial and high-security applications where reliability is critical.
Technical Specifications:
- Grade: 3
- Part Code: XA41MULTI
- Material: ABS
- Environmental Class: 2 (Indoor Use)
- Tamper Protection: TACT Microswitch Tamper
- Cable: 4-Terminal Block
- Operating Gap: 14mm Approx
- Selectable Resistors:
- Alarm Resistor Values: No Res, 1k, 2k2, 4k1 (8k2), 4k7, 5k6, 6k8, 10k
- EOL Resistor Values: No Res, 1k, 2k2, 4k1 (8k2), 4k7, 5k6, 10k
- Dimensions: 20mm (dia) x 30mm (depth)
- See Data Sheet
Why Choose the Knight Fire & Security XA41MULTI?
The XA41MULTI Quickfit Flush Contact is a versatile, high-security solution for double and single doors. With multi-resistor compatibility making it suitable for use with most panels, tamper protection, and easy installation, it is a top choice for installers requiring Grade 3 protection.
Product Specifications
| Brand | Knight Fire & Security |
|---|---|
| Device Type | Flush Contact |
| Grading and Compliance | Grade 3 |
| Colours | White, Brown |

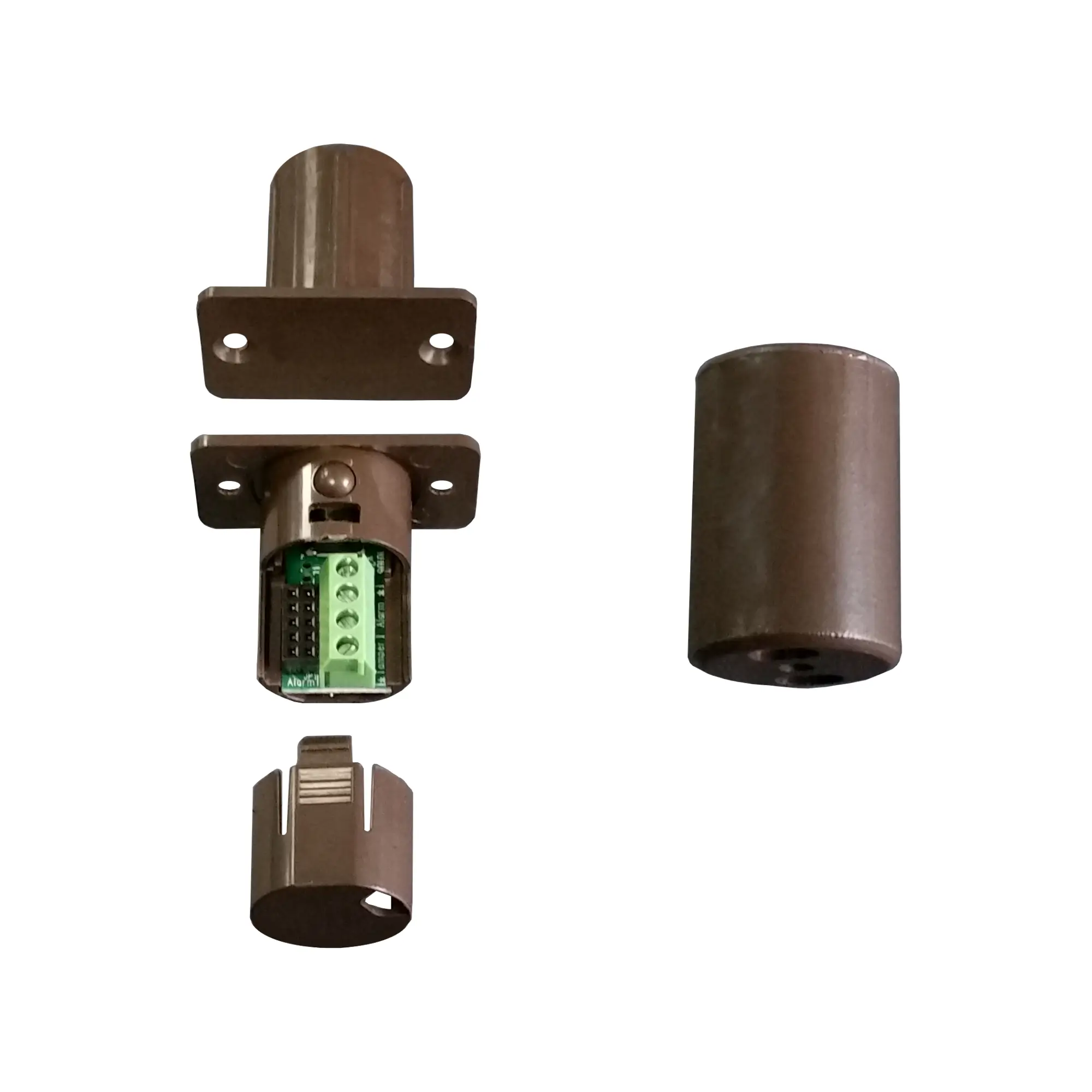

| SKU | KFS-XA41MULTI, KFS-XA41MULTIB |
