Intratone Video Intercom Kit For Up To 1000 Users
The Intratone Video Intercom Kit features a Reno SC-01 panel and is a powerful and sophisticated solution for managing access and communication in large residential or commercial buildings with up to 1000 users. This advanced system combines elegant design with cutting-edge technology to deliver seamless and secure communication.
Key Features
- High Capacity: Can manage up to 1000 users, making it ideal for large buildings and complexes.
- Advanced Functionality: Features a 12-button backlit coded keypad, proximity reader, and name scrolling display for enhanced user convenience.
- Robust Construction: Vandal and weather-resistant design ensures long-lasting performance.
- 4G-IP Connectivity: Enables remote management and maintenance of the system.
- Enhanced Security: Provides secure access control with customisable settings and anti-disturbance features.

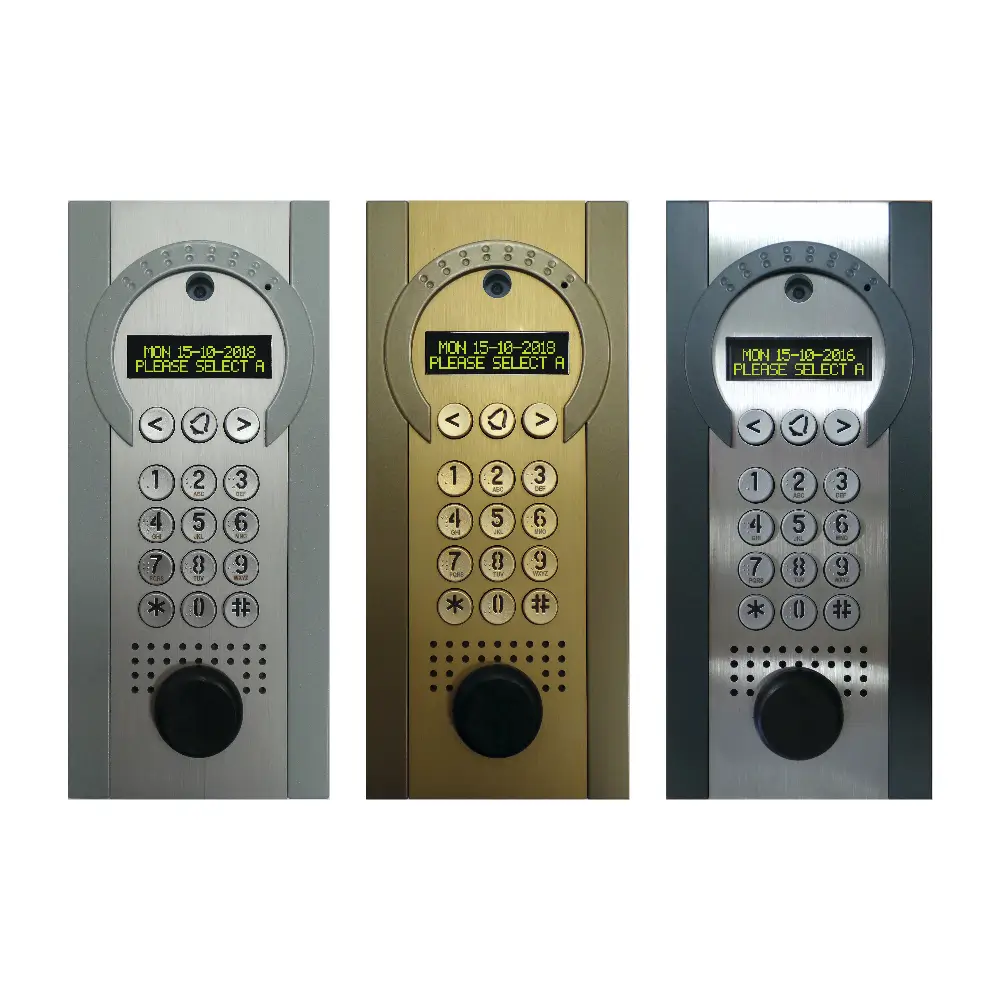

- Stylish Design: The Intratone Video Intercom Kit is available in three finishes to complement any building aesthetic.

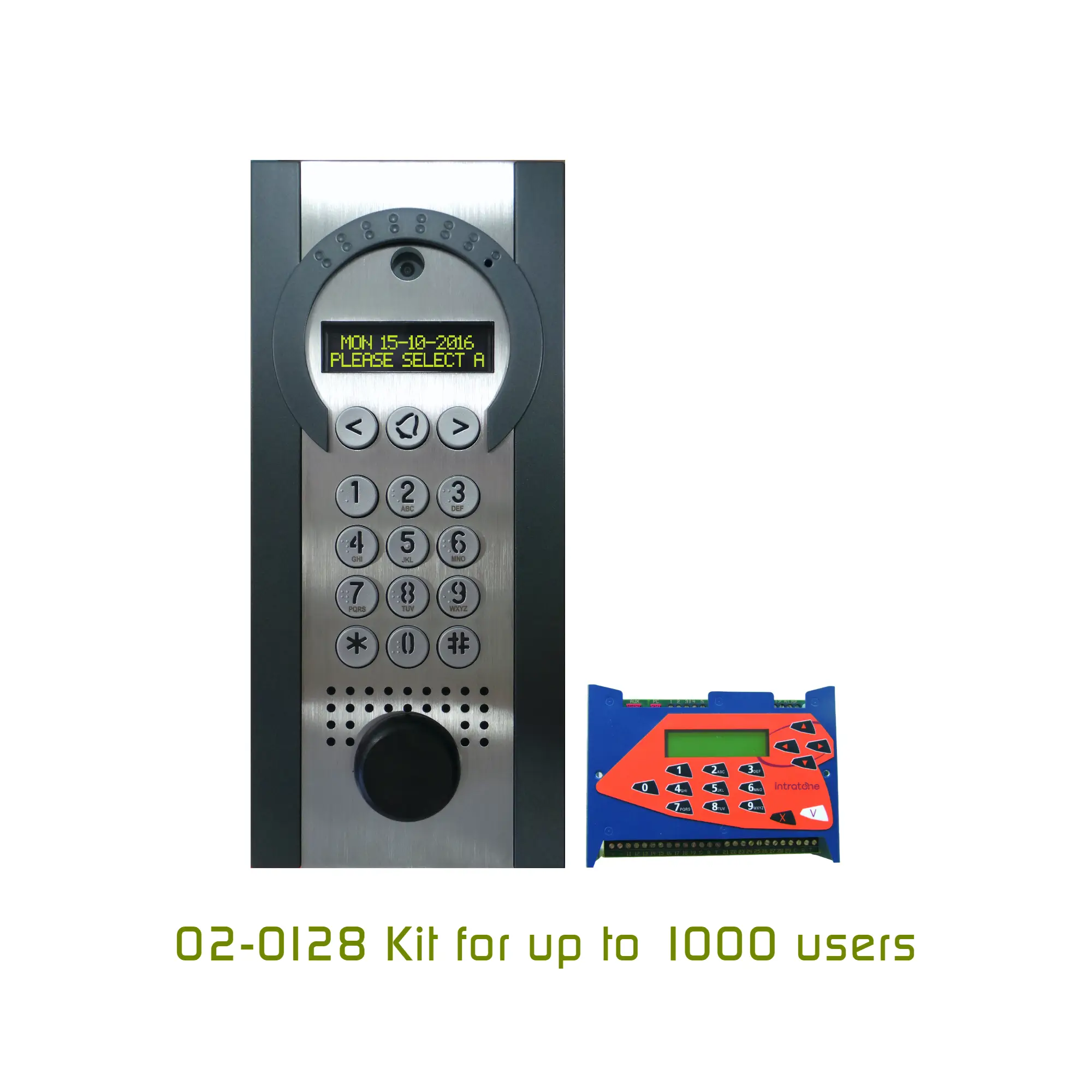

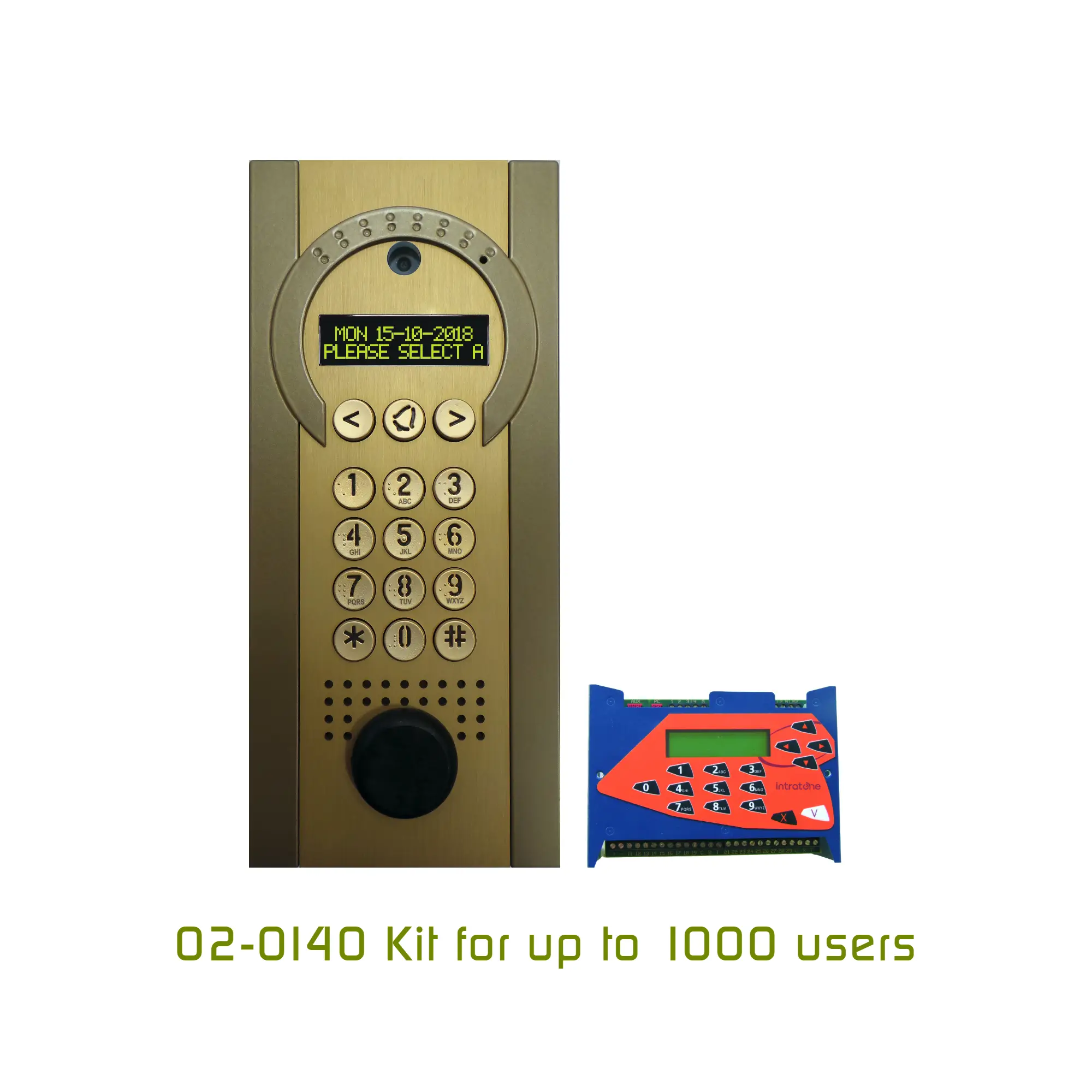

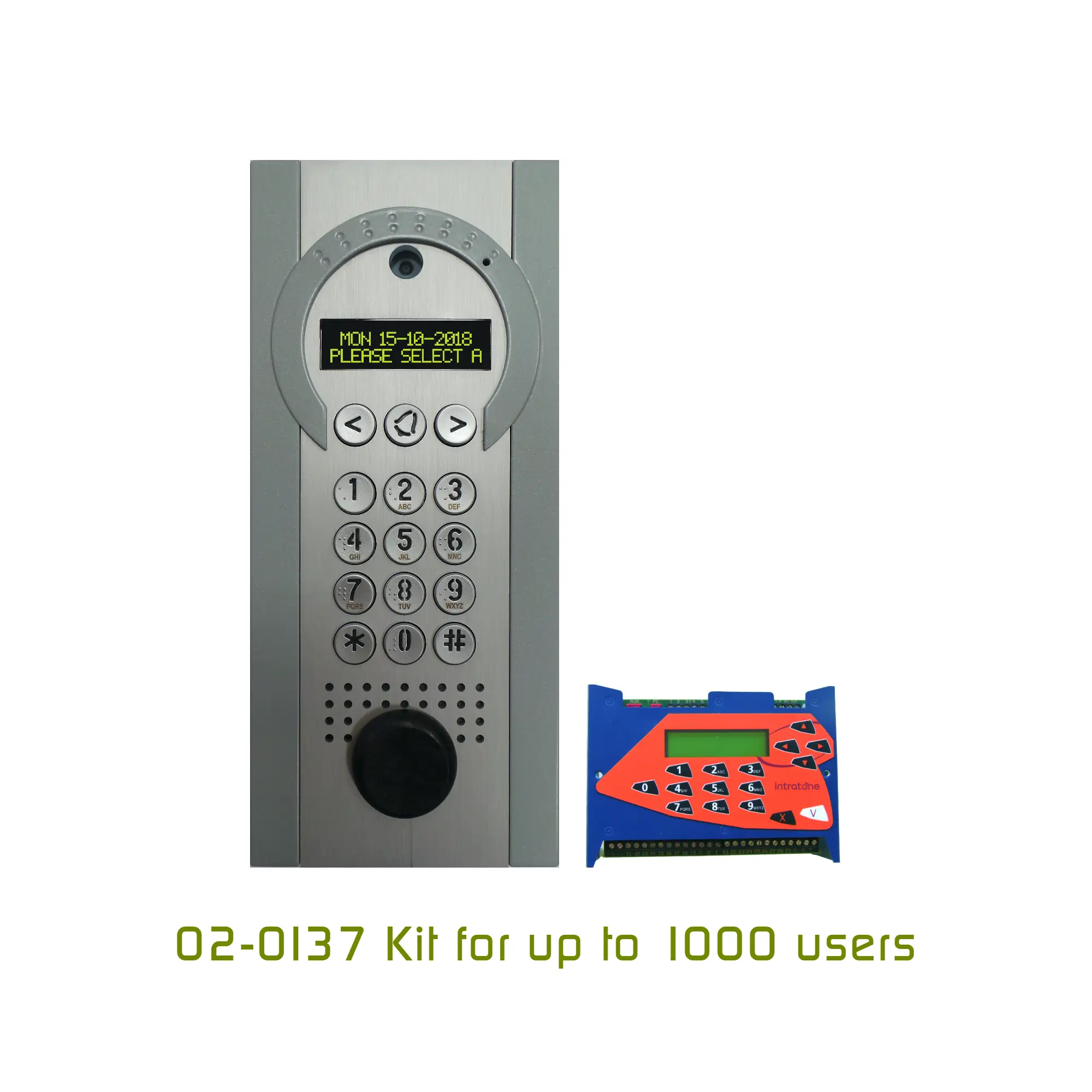

Kit comprises of SC-01 door panel and 1-door controller (p/n 03-0101).
*Requires 12VDC 5A PSU & Transmission Unit & Export Data Per User.
Full Description
High-Capacity Video Intercom System for Large Buildings
The Intratone Video Intercom Kit for Up To 1000 Users is designed for large-scale applications, offering a robust and scalable solution for multi-resident buildings. This system provides secure and convenient access control with advanced features and a sleek, modern design.
Key Features:
- High Capacity: This Intratone Video Intercom Kit supports up to 1000 users, making it suitable for large apartment complexes, businesses, and other high-density residential buildings.
- Advanced Features: Includes features like name scrolling, pinhole camera, coded keypad, and proximity reader for enhanced security and convenience.
- 4G-IP Connectivity: Enables remote access and management for increased control and flexibility.
- Robust Construction: Durable and weatherproof design for long-term reliability.
- Elegant Aesthetics: Available in a choice of sophisticated finishes to complement any building’s aesthetic.
- User-Friendly Interface: Intuitive interface with clear call sheets and easy navigation.
Technical Specifications:
- Capacity: 1000 users
- Communication: 4G-IP connectivity
- Display: 2 lines of 16 characters
- Mounting: Flush-mount
- Dimensions: 120 x 270 x 15 mm (intercom)
- Operating Temperature: -20°C to +60°C
- Protection Class: IP54
- See Data Sheet
Benefits:
- Enhanced Security: Provides secure access control for large residential buildings.
- Scalability: Supports a high number of users, making it suitable for large-scale applications.
- Convenience: User-friendly interface and advanced features for easy operation.
- Reliability: Durable construction and reliable performance.
- Flexibility: 4G-IP connectivity enables remote management and control.
Ideal Applications:
- Large residential buildings
- High-rise buildings
- Student housing
- Senior living and retirement communities
Product Specifications
| Dimensions | 120 × 15 × 270 mm |
|---|---|
| Brand | Intratone |
| Mounting | Flush Mount, Surface Mount (Box Required) |
| Power Requirement | 12-24 VDC, 2A |
| Operating Temperature | -20°C to 70°C |
| Protection Rating | IP55 |
| Colours | Anthracite / Silver, Gilded / Gold, Platinum / Silver |
| Monitor or Handset Type | App |
| Connection Type | GSM, Wireless |
| Number of Users | 1000 |
| SKU | INT-02-0128, INT-02-0140, INT-02-0137 |
Downloads
Manufacturer's Datasheet
807.83 KB
