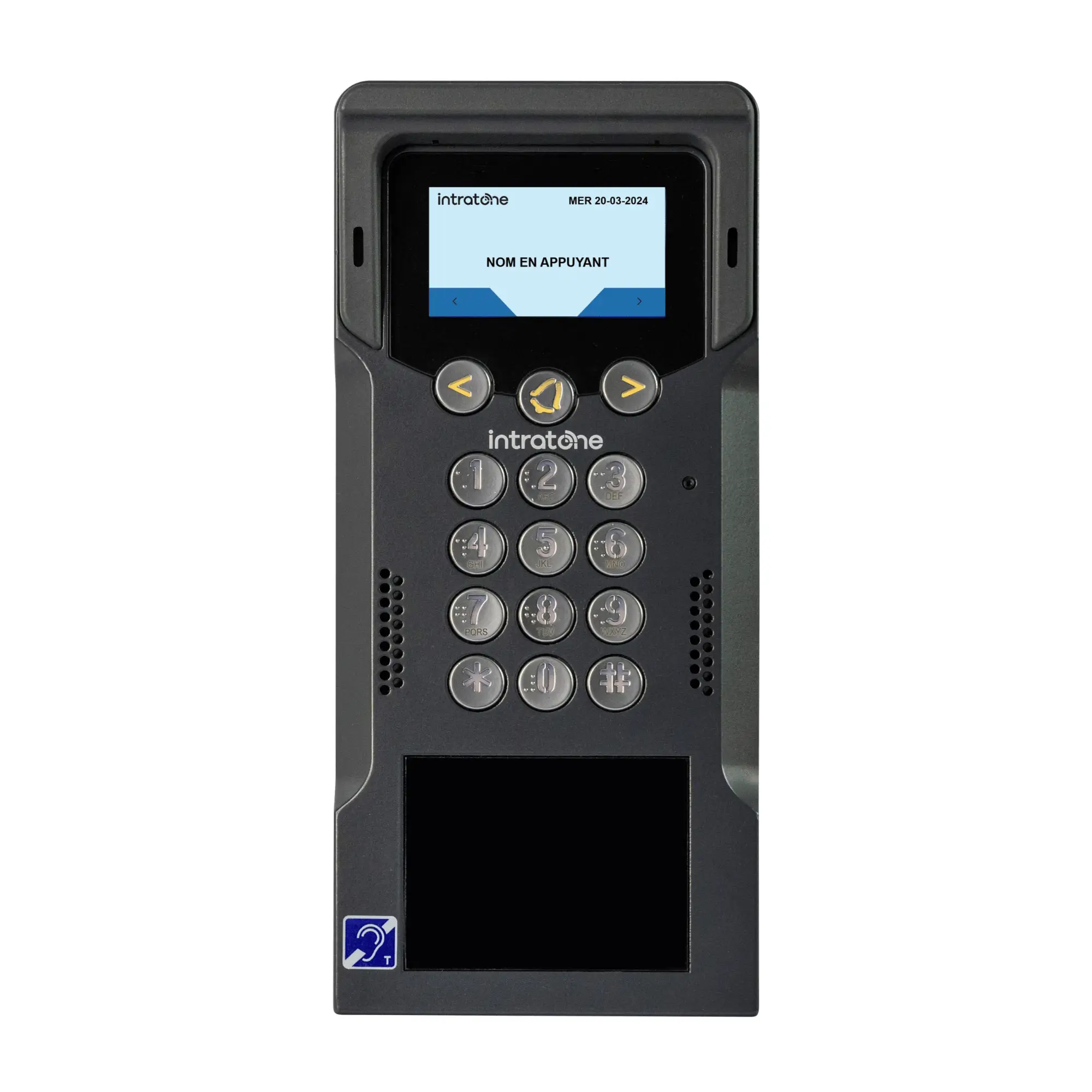

Intratone 06-0228 Only One – 1 to 10 User GSM Video Intercom Kit
The Intratone Only One is a GSM-based video intercom system designed for 1 to 10 users, offering quick and economical installation, contemporary design, and remote door access management. With an integrated antenna, customisable LCD screen, and proximity reader, it’s the ideal solution for residential buildings.
Key Features & Benefits:
- GSM-Based Communication: No extensive wiring needed — uses integrated GSM module for reliable wireless connectivity.
- Quick & Economical Installation: Surface-mounted design with pre-integrated module and antenna for fast and easy setup.
- Supports 1 to 10 Users: Perfect for residential buildings, small apartment complexes, and gated properties.
- 3″ Colour LCD Screen: Customisable display with logo branding option and automatic brightness adjustment.
- Proximity Reader: Allows remote door opening within a 1m radius, enhancing ease of access.
- Corrosion-Resistant Design: Built to withstand external elements with IP54 and IK08 protection ratings.
- Real-Time Management: Manage and program the system remotely via www.intratone.info.
- Accessibility Features: Braille keys and hearing loop support, ensuring compliance with disability laws.
- Multi-Door Management: Supports up to 4 doors with the addition of a relay card (12-0110).
Full Description
Advanced Video Intercom for Up to 10 Users
The Intratone 06-0228 Only One is a cutting-edge, GSM-based video intercom that offers unmatched convenience, reliability, and ease of installation. With no major wiring or extensive installation work required, it comes pre-integrated with a GSM module and antenna, ensuring optimal signal reception and real-time management. Perfect for residences with 1 to 10 homes, this intercom system combines modern aesthetics with powerful functionality.
The Intratone 06-0228 Only One intercom includes a 3″ colour LCD screen, illuminated keyboard, and a hands-free proximity reader for remote door opening within a 1m radius. Its robust build is corrosion-resistant and designed to withstand harsh external conditions, while the light sensor ensures the screen automatically adjusts brightness based on outdoor light levels.
For added convenience, this intercom is available in an Intratone 06-0228 “Sirocco” pack, which includes a 1-door controller / management unit, 20 black badges, and a 15-year prepaid plan.
Technical Specifications:
- Display: 3″ (65x36mm) colour LCD screen
- Antenna: Integrated front panel antenna for optimal GSM signal reception
- Proximity Reader: hands-free badge reader (1m range)
- Keypad: Illuminated coded keyboard with Braille keys
- Audio/Video: Two-way audio and video system included
- Accessibility: Hearing loop support and Braille key compatibility
- Real-Time Management: Remote programming via www.intratone.info
- Number of Doors: 1 door standard (expandable to 4 doors with relay card 12-0110)
- Power Supply: 12/24V DC – 2.5A minimum
- Wiring: 4 wires (2 twisted pairs), max 200m
- Operating Temperature: -10°C to 55°C
- Protection Ratings: IP54 (dust and water protection), IK08 (impact resistance)
- Dimensions: 120 x 266 x 46mm

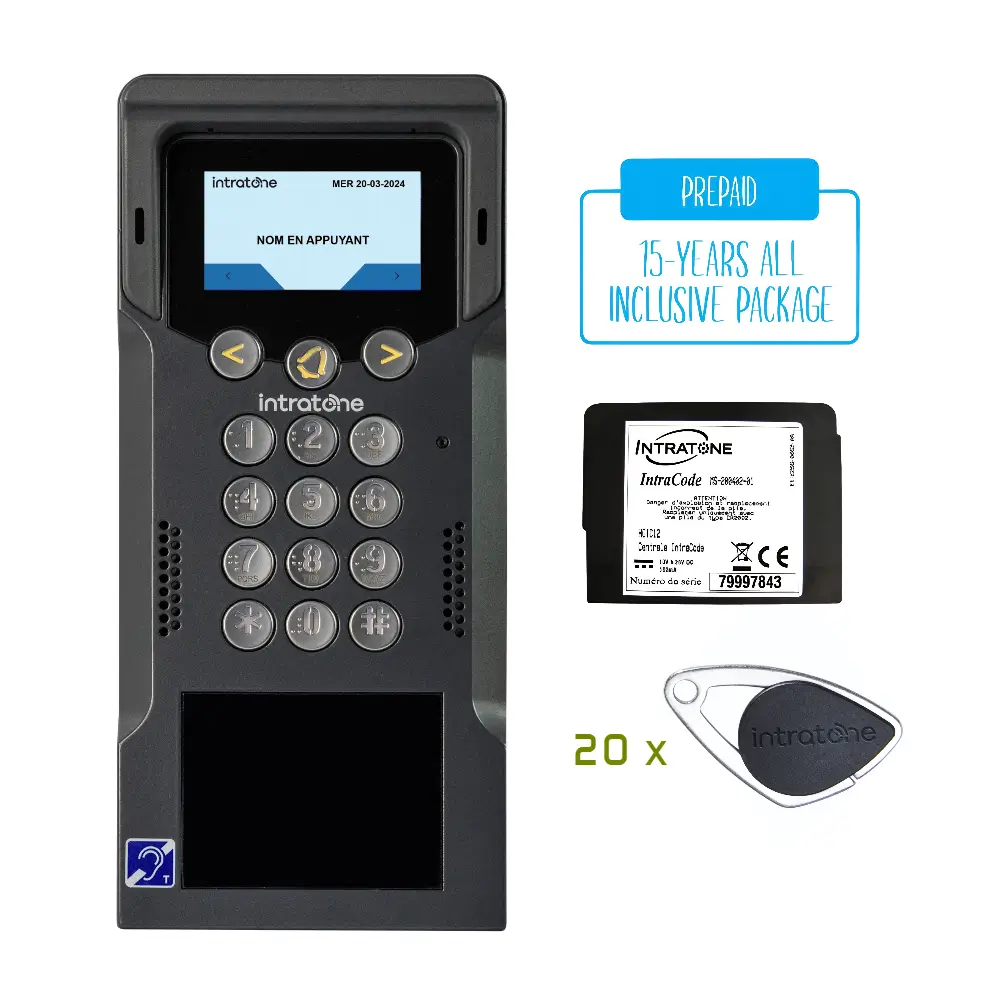

What’s Included in the Intratone 06-0228 Kit:
- 1 x 06-0228-PLUS: Intratone Only One Video Intercom
- 1 x 03-0102: 1-Door Management Unit
- 20 x Black Proximity Badges
- 15-Year Prepaid GSM Plan
Why Choose the Intratone 06-0228 Only One?
The Intratone 06-0228 Only One video intercom is the ultimate solution for multi-user residences, offering ease of installation, reliable GSM connectivity, and user-friendly features. Its contemporary design, accessibility options, and real-time remote management capabilities make it an ideal choice for property managers and installers looking for a cost-effective, advanced intercom system.
Product Specifications
| Brand | Intratone |
|---|---|
| Protection Rating | IK08, IP54 |
| Mounting | Flush Mount, Surface Mount |
| Operating Temperature | -10°C to 55°C |
| Colours | Black |
| Number of Users | 10 |
| Monitor or Handset Type | App |
| System Type | Audio, Video |
| Connection Type | GSM, Wireless |
| Kit | Yes |
| SKU | 06-0228-EN |
