Intratone 06-0130 – Keypad and GSM Module Receiver Kit with 10 Years Unlimited Data
The Intratone 06-0130 is a comprehensive access control kit that combines a mini coded keypad with a GSM/GPRS module receiver, providing a robust and remotely manageable solution. This kit includes 10 years of unlimited data, enabling seamless online management and control.
Key Features:
- Complete Access Control Solution: Combines keypad entry with remote management.
- Cost-Effective: 10 years of unlimited data eliminates ongoing data costs.
- Remote Management: Control and manage access from anywhere with an internet connection.
- Enhanced Security: Secure wireless communication and robust keypad design.
- Convenient Access: Multiple access options, including keypad, mobile entry, and dial-to-open.
- Flexible Scheduling: Time range and timer functionality for customised access control.
- Scalable Solution: Supports up to 10,000 users and expandable with additional keypads.
Full Description
Advanced GSM Access Control Kit with Keypad and 10 Years Free Data
The Intratone 06-0130 is a comprehensive access control kit that combines a mini coded keypad with a GSM/GPRS data module and HF receiver. This kit offers advanced remote management capabilities and 10 years of unlimited data for seamless operation.

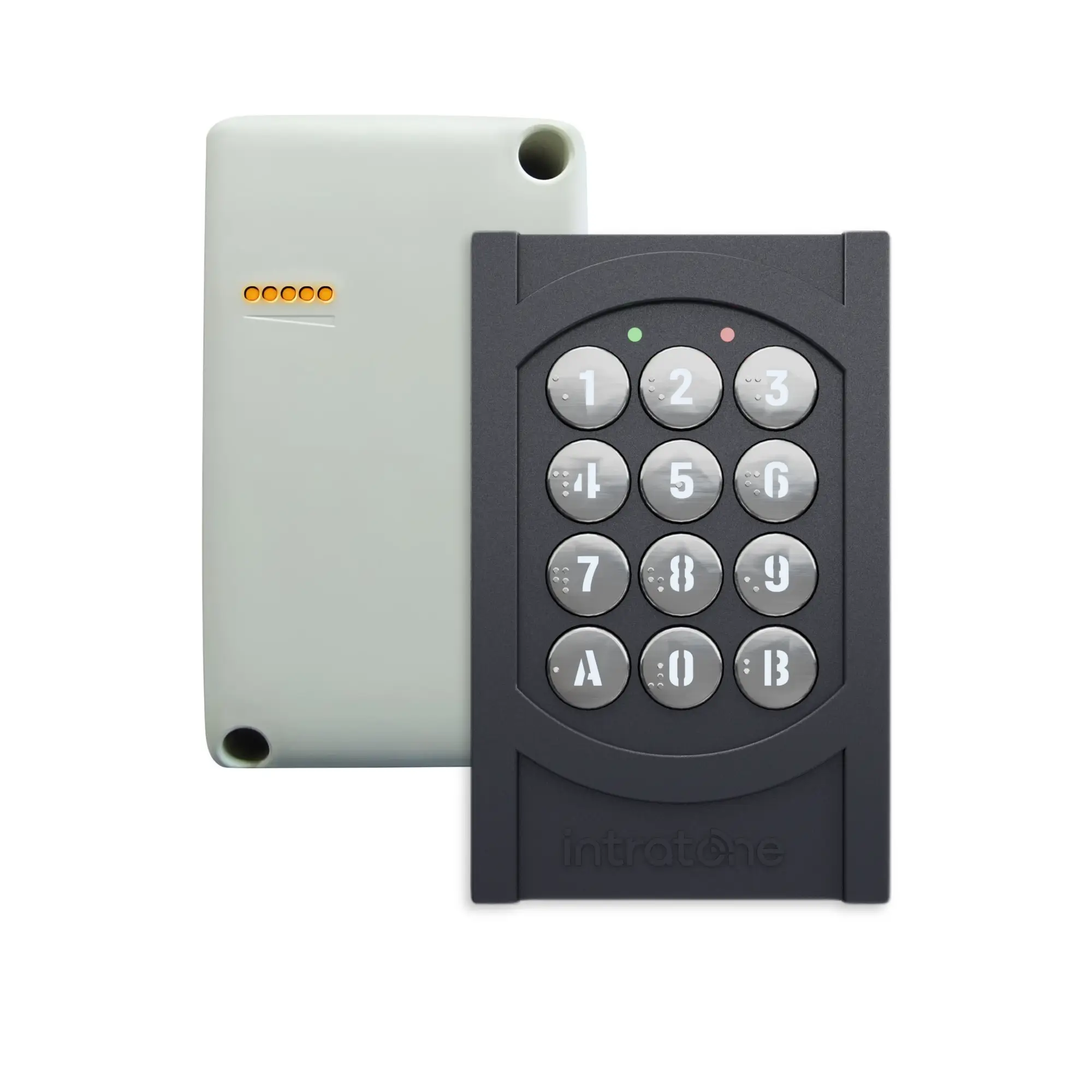

The Intratone 06-0130 Kit Includes:
Intratone 06-0129-EN (GSM/GPRS Module with HF Receiver):
-
- Integrated GSM/GPRS module for remote data updates.
- Built-in HF receiver for secure 868MHz rolling code communication.
- 10 years of free data for system syncing and updates.
- Real-time management via www.intratone.info.
- Mobile entry and dial-to-open functionality.
- Up to 10,000 user capacity.
- Event log, email alerts, and time-based access control.
- 2 x NO relay outputs.

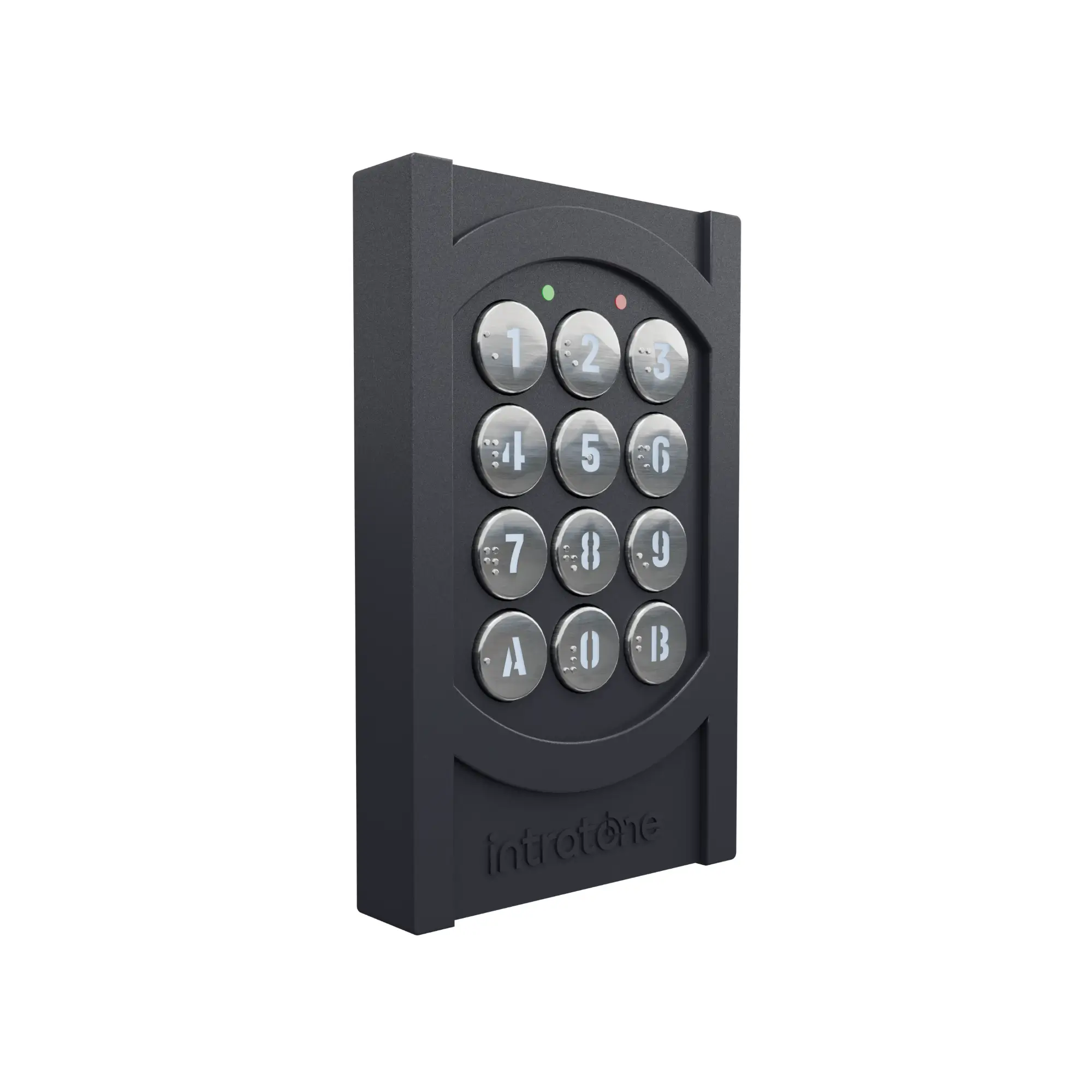

Intratone 04-0107-EN (Mini Coded Keypad):
-
- Surface-mounted design.
- Zamac finish for durability.
- Backlit keypad for easy visibility.
- Up to 80 programmable codes.
- Support for up to two keypads per system.
- Free access time slots.
- Suitable for indoor and outdoor use.
Key Features:
- 10 Years Unlimited Data: The Intratone 06-0130 includes 10 years of data to eliminate ongoing data costs.
- Remote Management: Control and configure the system via www.intratone.info.
- Multiple Access Options: Keypad, keyfobs, transmitters, and mobile entry.
- Secure Communication: 868MHz rolling code and unique device coding.
- Flexible Scheduling: Time-based access and holiday settings.
- Event Logging and Alerts: Provides detailed access records.
- Durable Keypad: Zamac finish and backlit design.
- Easy Installation: Surface-mounted components.
Technical Specifications of the Intratone 06-0130 Kit:
- Intratone 06-0129-EN:
- GSM/GPRS module with HF receiver.
- 868MHz rolling code.
- 12-24V AC/DC power supply.
- 2 x NO relay outputs.
- See Full Spec
- Intratone 04-0107-EN:
- Mini coded keypad.
- 80 code capacity.
- 12/24V DC 1A power supply.
- 4-wire connection (2 twisted pairs, 200m max).
- Operating temperature: -20°C to 70°C.
- Dimensions: 85 x 137 x 16mm.
- Weight: 1kg.
- See Full Spec
Ideal Applications:
- Residential buildings
- Commercial properties
- Gated communities
- Parking garages
- Access control for remote locations
- Multi-tenant buildings
Product Specifications
| Dimensions | 137 × 85 × 16 mm |
|---|---|
| Brand | Intratone |
| Number of Users | 10,000 |
| Output Relays | 2 |
| Protection Rating | IP55 |
| Power Requirement | 12-24 VDC/VAC, 1A |
| Operating Temperature | -20°C to 70°C |
| Mounting | Surface Mount |
| Kit | Yes |
| Connection Type | GSM |
| SKU | INT-06-0130 |
