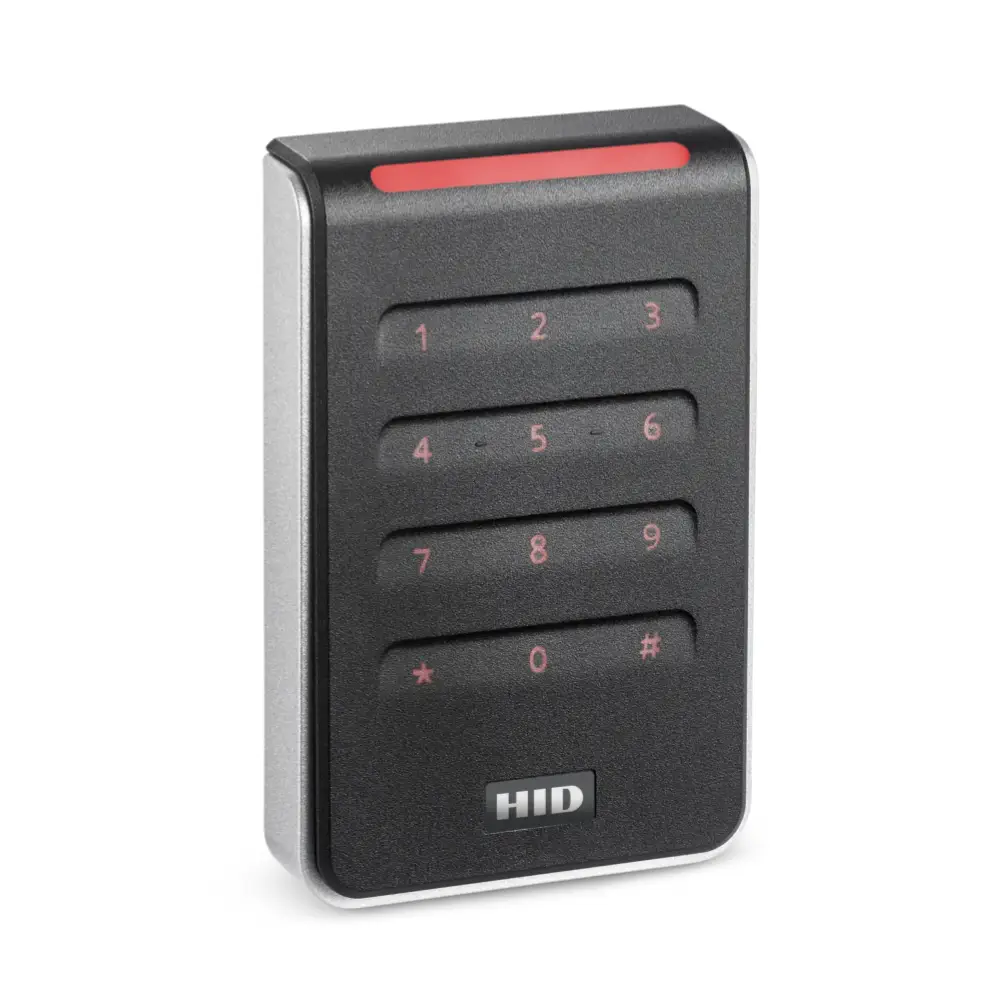

HID Signo 40K Reader with Keypad
The HID Signo 40K is a powerful and versatile access control reader that delivers unmatched security, convenience, and manageability. With its multi-technology compatibility, keypad functionality, and mobile-ready design, the Signo 40K is a perfect solution for organisations seeking to upgrade their access control systems with a future-proof and user-friendly solution.
Signo Model 40K Configurations
- Standard Profile:
This version supports all technologies (listed below), with possible further customisation available.
Supported Technologies:
-
- 2.4 GHz (Bluetooth): Compatible with Mobile Credentials powered by Seos (HID Mobile Access).
- 13.56 MHz (NFC): Compatible with Seos, iCLASS SE, iCLASS SR, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, and also supports Mobile Credentials powered by Seos (HID Mobile Access).
- 125 kHz: Compatible with HID Proximity, Indala Proximity, AWID Proximity, and EM Proximity.
- Seos Profile:
This version supports Bluetooth, NFC, and iCLASS Seos credentials. - Smart Profile:
This version supports Bluetooth, NFC, and 13.56 MHz credentials, including iCLASS Seos and MIFARE DESFire CSN.
Note: The specific configuration (Terminal or Pigtail connection, profile) of the HID Signo 40K should be chosen based on your installation needs.
Full Description
Multi-Technology Wall Switch Reader with Keypad for Flexible Access Control
The HID Signo 40K is a powerful and versatile access control reader designed for wall-mounted installations. Featuring a keypad and support for a wide range of credential technologies, the Signo 40K provides a secure and convenient solution for managing access to buildings and restricted areas.
Key Features Of The HID Signo 40K:
- Multi-Technology Compatibility: Supports a wide range of credentials, including mobile access via Bluetooth and NFC, 125 kHz proximity cards, and various 13.56 MHz smart cards.
- Enhanced Security: Multi-layered security with EAL5+ certified secure element hardware, native OSDP secure channel capability, and support for secure authentication protocols.
- Keypad Entry: Provides an additional layer of security and allows for PIN-based access.
- Mobile-Ready: Supports mobile credentials for a touchless access experience.
- Future-Proof Design: Designed to be adaptable and support future technology advancements.
- Remote Management: Easily managed and configured using HID Reader Manager or OSDP.
- Robust Construction: IP65-rated housing for outdoor and indoor use.
- See Full HID Signo 40k Data Sheet
Benefits Of The HID 40K Signo Reader with Keypad:
- Increased Security: Multi-factor authentication and advanced security features ensure only authorised personnel gain access.
- Improved Convenience: Keypad and mobile access options provide flexibility for users.
- Simplified Management: Remote configuration and updates streamline system administration.
- Reduced Costs: Future-proof design protects your investment.
- Wide Range of Applications: Ideal for various access control scenarios, including offices, factories, and secure facilities.
Available Models of the HID Signo 40K Series:
- 40KTKS-00-000000: Multi-tech reader with keypad “Standard Profile”, Terminal Connection
- 40KNKS-00-000000: Wall-mounted multi technology reader with keypad “Standard Profile”, Pigtail Connection
- 40KTKS-01-000000: wallswitch-mount reader with keypad “SEOS Profile”, Terminal Connection
- 40KNKS-01-000000: wallswitch-mount reader with keypad “SEOS Profile”, Pigtail Connection
- 40KTKS-02-000000: wallswitch-mount reader with keypad “Smart Profile”, Terminal Connection
- 40KNKS-02-000000: wallswitch-mount reader with keypad “Smart Profile”, Pigtail Connection
Ideal Applications:
- Office buildings and campuses
- Data centres and server rooms
- Manufacturing facilities
- Hospitals and healthcare facilities
- Government buildings
- Restricted areas within any organisation
Product Specifications
| Weight | 160 g |
|---|---|
| Dimensions | 121.5 × 80 × 21.5 mm |
| Brand | HID |
| Frequency | 125 kHz (RFID), 13.56 MHz, 2.45 GHz |
| Mounting | Surface Mount |
| Connection Type | Pigtail / cable connection, Terminal connection |
| Annunciation | Sounder, Tri-Colour LED |
| Operating Temperature | -35°C to 66°C |
| Protection Rating | IP65 |
| Output Protocol | Clock & Data, OSDP, Wiegand |
| Device Type | Keypad, Reader |
| Reader and Card Technology | AWID, Bluetooth, Mifare / Desfire CSN Only, NFC, EM Proximity (125 kHz), HID Prox (125 kHz), Indala Proximity (125 kHz), MIFARE, DESFire, HID iCLASS, HID Seos |
| Versions | Seos Profile, Smart Profile, Standard Profile |
| SKU | 40KTKS-00-000000, 40KNKS-00-000000, 40KTKS-01-000000, 40KNKS-01-000000, 40KTKS-02-000000, 40KNKS-02-000000 |
Downloads
Manufacturer's Datasheet
326.84 KB
