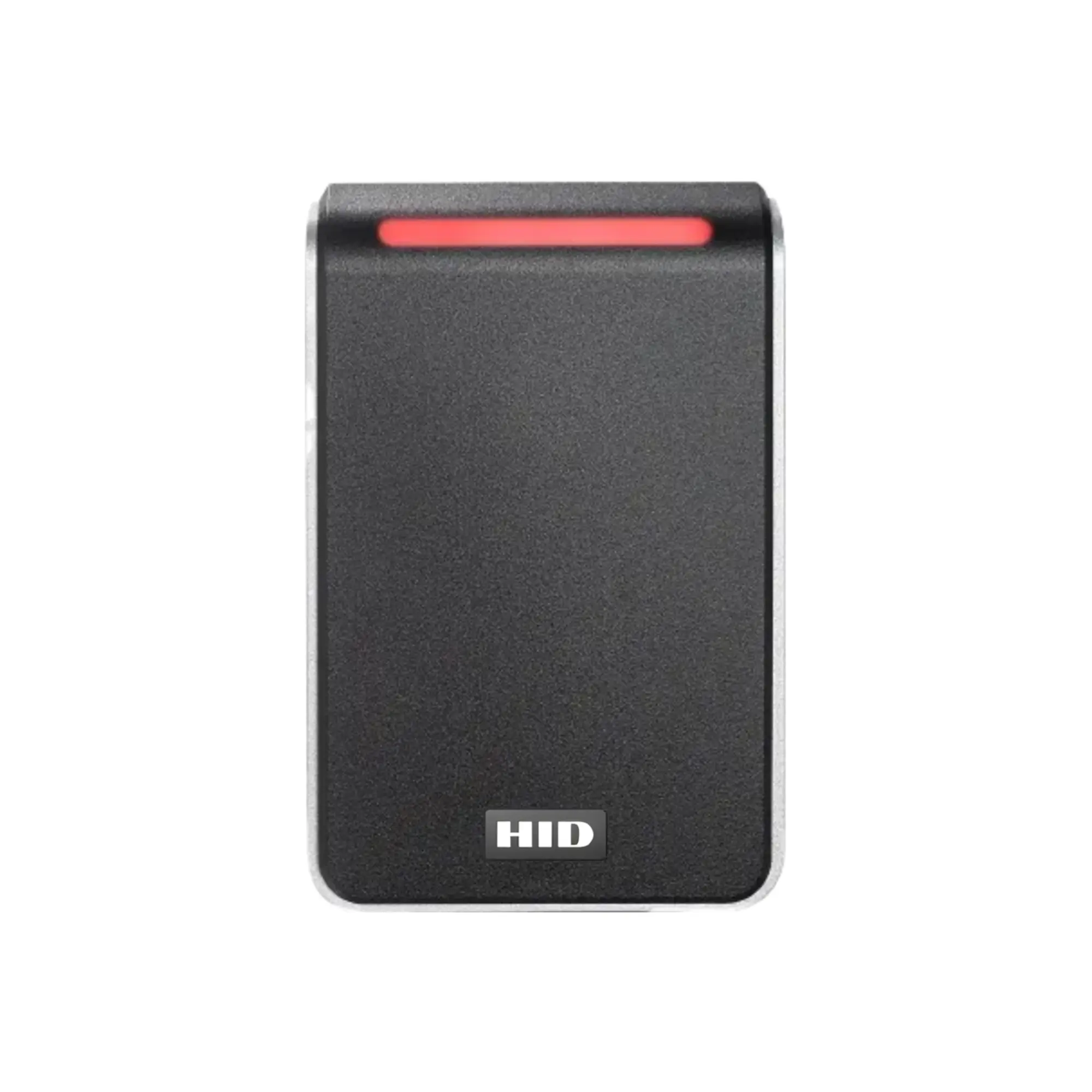

HID Signo 40 – Wallswitch Reader
The HID Signo 40 is a versatile and high-performance wallswitch reader designed to enhance the security of your premises. This reader is part of the renowned HID Signo line, known for its adaptability, performance, and interoperability. With support for a wide range of credential technologies, including Seos, iCLASS, and MIFARE, the HID Signo 40 offers a seamless transition to secure authentication.
Key Features:
- Versatile Credential Compatibility: Supports a wide range of credential technologies, including Seos, iCLASS, and MIFARE.
- Enhanced Security: Robust security features protect your access control system.
- Remote Management: Enables remote configuration and management for added convenience.
- Durable Construction: Built to withstand harsh environments and provide long-lasting performance.
- Easy Installation: Simple to install and integrate into existing security systems.
The HID Signo 40 is available in the following configurations (please select when ordering):
- 40TKS-00-000000 – wallswitch-mount MultiTech reader “Standard Profile”, Terminal Connection
- 40NKS-00-000000 – wallswitch-mount MultiTech reader “Standard Profile”, Pigtail Connection
- 40TKS-01-000000 – wallswitch-mount reader “SEOS Profile” (only reads iCLASS cards), Terminal Connection
- 40NKS-01-000000 – wallswitch-mount reader “SEOS Profile” (only reads iCLASS cards), Pigtail Connection
- 40TKS-02-000000 – wallswitch-mount reader “Smart Profile”, Terminal Connection
- 40NKS-02-000000 – wallswitch-mount reader “Smart Profile”, Pigtail Connection
Full Description
Advanced Access Control: HID Signo 40 Wallswitch Reader
The HID Signo 40 is a versatile wallswitch reader designed to deliver high-performance access control. This innovative reader offers a wide range of credential support, advanced communication options, and robust security features.
Key Features of the HID Signo 40:
- Multi-Credential Support: Reads a wide range of credentials, including Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2.
- Advanced Communication: Supports Wiegand, Clock-and-Data, and RS-485 Half Duplex (OSDP) for seamless integration with various access control systems.
- Robust Construction: IP65 rated for both indoor and outdoor use.
- Enhanced Security: Advanced security features to protect against unauthorised access.
- Remote Management: Enables remote configuration and management for enhanced system efficiency.
- Compact Design: Sleek and discreet design for easy installation.
Technical Specifications:
- Credential Compatibility: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2
- Read Range: 1.6 to 4 inches (4 to 10 cm)
- Operating Voltage: 12V DC
- Communication: Wiegand, Clock-and-Data, RS-485 Half Duplex (OSDP)
- Dimensions: 3.15 in x 4.78 in x 0.77 in (80 mm x 121.5 mm x 19.5 mm)
- Environmental Rating: IP65
- Operating Temperature: -31°F to +150°F (-35°C to +66°C)
- See Full HID Signo 40 Data Sheet
Benefits of Signo Readers:
- Enhanced Security: Supports a wide range of secure credential technologies.
- Flexibility: Adapts to various access control needs and environments.
- Interoperability: Seamless integration with existing access control systems.
- Remote Management: Reduces maintenance costs and improves system efficiency.
- Reliability: Durable construction and reliable operation.
Ideal Applications:
- Offices
- Retail stores
- Educational institutions
- Healthcare facilities
- Residential properties
Product Specifications
| Weight | 140 g |
|---|---|
| Dimensions | 121.5 × 80 × 19.5 mm |
| Brand | HID |
| Frequency | 125 kHz (RFID), 13.56 MHz, 2.45 GHz |
| Mounting | Surface Mount, Wall Mount |
| Connection Type | Pigtail / cable connection, Terminal connection |
| Colours | Black |
| Power Requirement | 12 VDC, 250 mA |
| Annunciation | Sounder, Tri-Colour LED |
| Operating Temperature | -35°C to 66°C |
| Protection Rating | IP65 |
| Output Protocol | Clock & Data, OSDP, Wiegand |
| Construction | Polycarbonate |
| Versions | Seos Profile, Smart Profile, Standard Profile |
| Reader and Card Technology | AWID, Bluetooth, Mifare / Desfire CSN Only, NFC, EM Proximity (125 kHz), HID Prox (125 kHz), Indala Proximity (125 kHz), MIFARE, DESFire, HID iCLASS, HID Seos |
| Device Type | Reader |
| SKU | 40TKS-00-000000, 40NKS-00-000000, 40TKS-01-000000, 40NKS-01-000000, 40TKS-02-000000, 40NKS-02-000000 |
Downloads
Manufacturer's Datasheet
