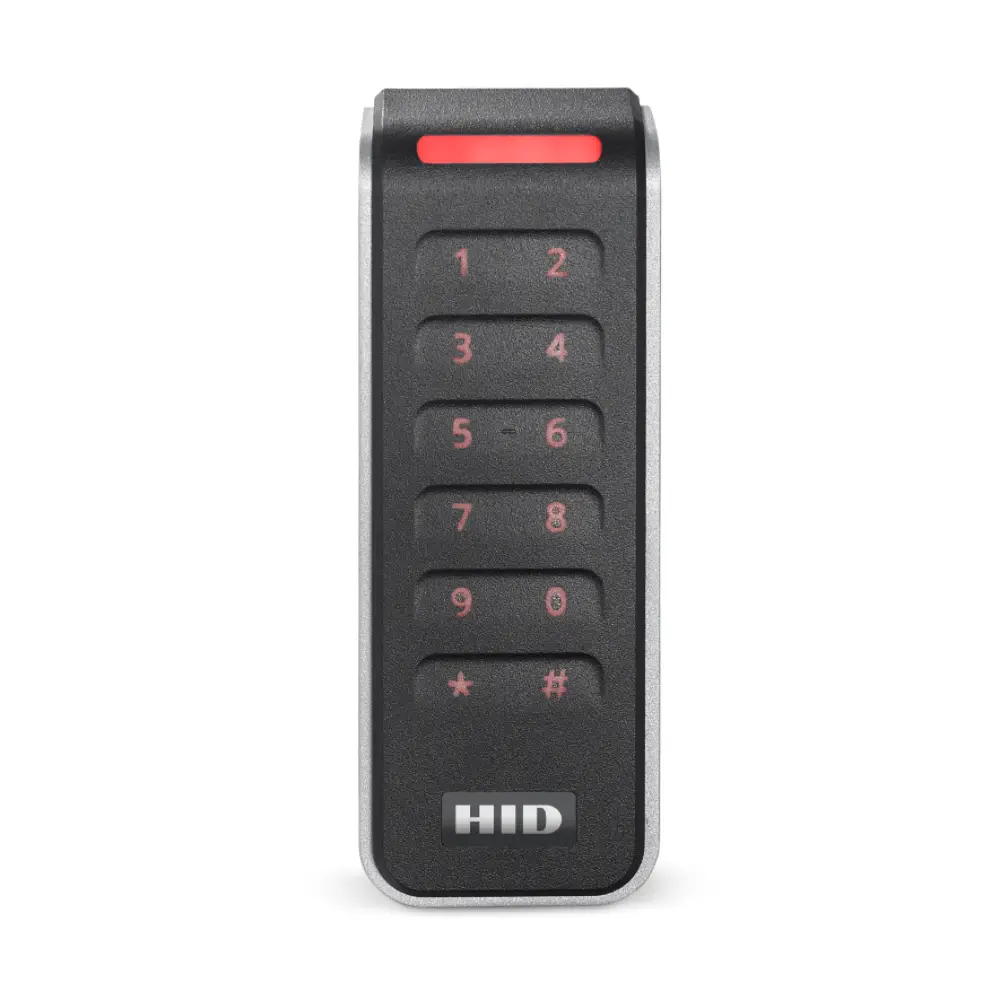

HID Signo 20K – Mullion-Mount Keypad Reader

The HID Signo 20K Mullion-Mount Keypad Reader provides a comprehensive solution for secure and convenient access control. With its support for multiple credential technologies, mobile access, robust security features, and easy management capabilities, it is a reliable choice for organisations seeking to future-proof their access control systems.

Signo Model 20K Configurations

  • Standard Profile: This version supports all technologies (listed below), with possible further customisation available.

Supported Technologies:

    • 2.4 GHz (Bluetooth): Compatible with Mobile Credentials powered by Seos (HID Mobile Access).
    • 13.56 MHz (NFC): Compatible with Seos, iCLASS SE, iCLASS SR, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, and also supports Mobile Credentials powered by Seos (HID Mobile Access).
    • 125 kHz: Compatible with HID Proximity, Indala Proximity, AWID Proximity, and EM Proximity.
  • Seos Profile: This version of the HID Signo 20K supports Bluetooth, NFC, and iCLASS Seos credentials.
  • Smart Profile: This version supports Bluetooth, NFC, and 13.56 MHz credentials, including iCLASS Seos and MIFARE DESFire CSN.

Note: The specific configuration (Terminal or Pigtail connection, profile) of the HID Signo 20K should be chosen based on your installation needs.

Full Description

Enhance Security and Convenience With This Feature-Rich Access Control Solution

The HID Signo 20K is a high-performance mullion-mount keypad reader designed for secure and versatile access control applications. It offers a robust combination of features, making it ideal for a wide range of environments.

Key Features Of The HID Signo 20k:

  • Multi-Technology Support: Reads a broad range of credentials, including mobile devices (NFC and Bluetooth), 125 kHz proximity cards, and various 13.56 MHz smart cards.
  • Enhanced Security: Multi-layered security with EAL5+ certified secure element hardware and support for secure communication protocols.
  • Mobile-Ready: Supports mobile access via HID Mobile Access with native Bluetooth and NFC for convenient hands-free entry.
  • Future-Proof Design: Open Supervised Device Protocol (OSDP) ensures secure communication and enables remote management.
  • Easy Management: Configurable via mobile device or OSDP for simplified administration.
  • Durable Construction: IP65 rated for weatherproof performance in harsh environments.
  • Keypad Entry: Integrated keypad provides additional security and allows for PIN-based access.
  • Mullion-Mount Design: Discreet and space-saving design for mounting on door mullions.
  • See the Full HID Signo 20k Data Sheet.

Benefits of the Signo 20k Mullion-Mount Keypad Reader:

  • Increased Security: Multi-factor authentication with credentials and PINs protects against unauthorised access.
  • Improved User Convenience: Mobile access and keypad options offer flexible entry methods.
  • Reduced Costs: Future-proof design reduces the need for hardware upgrades.
  • Simplified Management: Remote configuration and updates streamline administration.
  • Wide Application Suitability: Versatile technology support caters to diverse access control needs.

Ideal Applications:

  • Office buildings
  • Manufacturing facilities
  • Educational institutions
  • Government facilities
  • Healthcare centres
  • Data centres

Product Specifications

Weight 110 g
Dimensions 121.5 × 45 × 21.5 mm
Brand

HID

Frequency

125 kHz (RFID), 13.56 MHz, 2.45 GHz

Mounting

Surface Mount

Colours

Black

Power Requirement

12 VDC, 250 mA

Operating Temperature

-35°C to 66°C

Protection Rating

IP65

Output Protocol

Clock & Data, OSDP, Wiegand

Construction

Polycarbonate

Annunciation

Sounder, Tri-Colour LED

Device Type

Keypad, Reader

Reader and Card Technology

AWID, Bluetooth, Mifare / Desfire CSN Only, NFC, EM Proximity (125 kHz), HID Prox (125 kHz), Indala Proximity (125 kHz), MIFARE, DESFire, HID iCLASS, HID Seos

Connection Type

Pigtail / cable connection, Terminal connection

Versions

Seos Profile, Smart Profile, Standard Profile

SKU 20KTKS-00-000000, 20KNKS-00-000000, 20KTKS-01-000000, 20KNKS-01-000000, 20KTKS-02-0002BL, 20KNKS-02-0002BL

Downloads

Manufacturer's Datasheet

326.84 KB

Download
