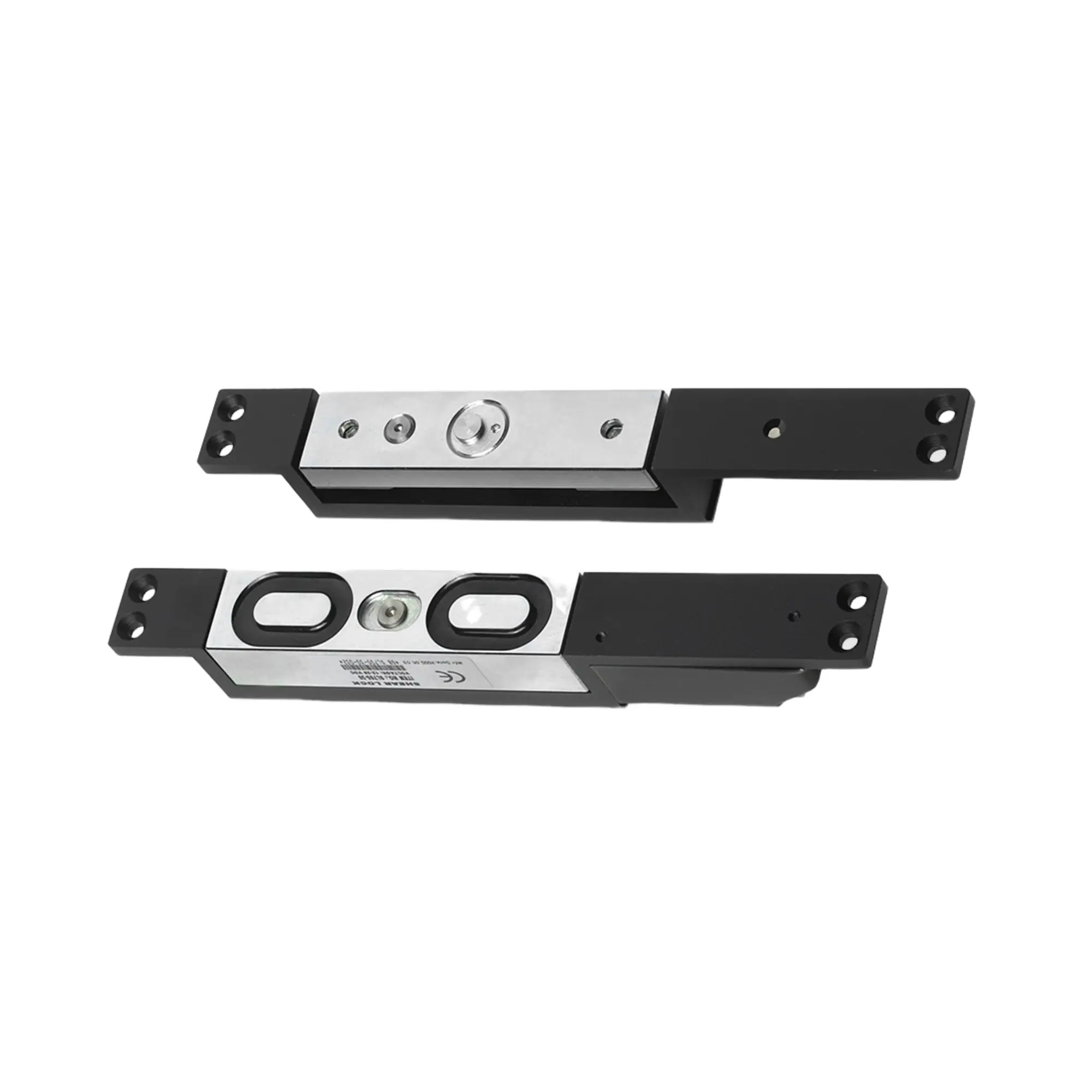

Gem GS705-35 Shear Aligning Electromagnetic Lock

Full Description

Achieve Superior Holding Force and Misalignment Correction for Demanding Security Applications

The Gem GS705-35 Shear Aligning Electromagnetic Lock redefines security for single and double swing doors, even up to 180 degrees. This innovative electromagnetic lock boasts exceptional holding force, automatic misalignment correction, and a concealed mechanism for a sleek and secure solution.

Key Features:

• Superior Shear Holding Force: Delivers an impressive 2,200lbs of holding force for maximum door security.
• Automatic Misalignment Correction: Eliminates the need for perfect door alignment, ensuring reliable locking even with slight gaps.
• Concealed Mechanism: Provides a clean aesthetic that complements any architectural style.
• Suitable for Narrow Frames, Double Swing Doors, and Glass Doors: Offers exceptional versatility for various door applications.
• Fail-Safe Operation: For safety, the lock automatically releases when power is lost.
• Horizontal or Vertical Installation: Provides flexibility for different door placements.
• Surface, Mortise, or Semi-Mortise Mounting: Allows for a variety of installation options.
• Door Status Monitoring: Provides real-time confirmation of door lock status.
• Adjustable Armature Screws: Accommodates wider door gaps for a secure fit.
• Special Push-Off Device: Eliminates residual magnetism, ensuring effortless door opening.
• Wide Operating Temperature Range: Functions reliably in temperatures from -30°C to +50°C.
• See Full Data Sheet

Benefits of the Gem GS705-35:

• Unmatched Security: Delivers exceptional holding force and automatic misalignment correction for superior door protection.
• Enhanced Versatility: Suitable for various door types and applications, including narrow frames, double swing doors, and glass doors.
• Simplified Installation: Offers multiple mounting options for a flexible and efficient installation process.
• Improved System Efficiency: Fail-safe operation ensures a safe exit in case of power loss.
• Peace of Mind: Optional door status monitoring allows for real-time lock verification.
• Effortless Operation: Special push-off device eliminates residual magnetism for smooth door opening.
• Wide Range Applicability: Functions reliably in various temperature environments.

Ideal Applications For A Shear Aligning Electromagnetic Lock:

• Office Buildings: Secure high-traffic entrances, server rooms, and confidential areas.
• Retail Stores: Control access to back offices, stockrooms, and high-value merchandise areas.
• Educational Facilities: Restrict access to classrooms, laboratories, and restricted areas.
• Hospitals and Healthcare Facilities: Safeguard patient care areas, pharmacies, and equipment storage.
• Leisure and Hospitality Facilities: Secure building entrances, staff areas, and equipment storage.

Technical Specifications:

• Shear Holding Force: 2,200lbs (998kg)
• Power Input: 12-24VDC (self-regulating)
• Current Draw:
  • Pull In: 1.85A, Holding: 0.45A @ 12VDC
  • Pull In: 1.1A, Holding: 0.25A @ 24VDC
• Finish:
  • Magnet and Armature: Zinc Plated
  • Housing: Black Powder Coated
• Monitoring Output: Magnet Bond Sensor Output, SPDT Rating 1A @ 30VDC Dry Contact
• Door Gap: 3mm (1/8”) Maximum
• Operating Temperature: -30°C to +50°C
• Auto Relocking Timer: 1-6 Seconds Adjustable (Default: 3 Seconds)
