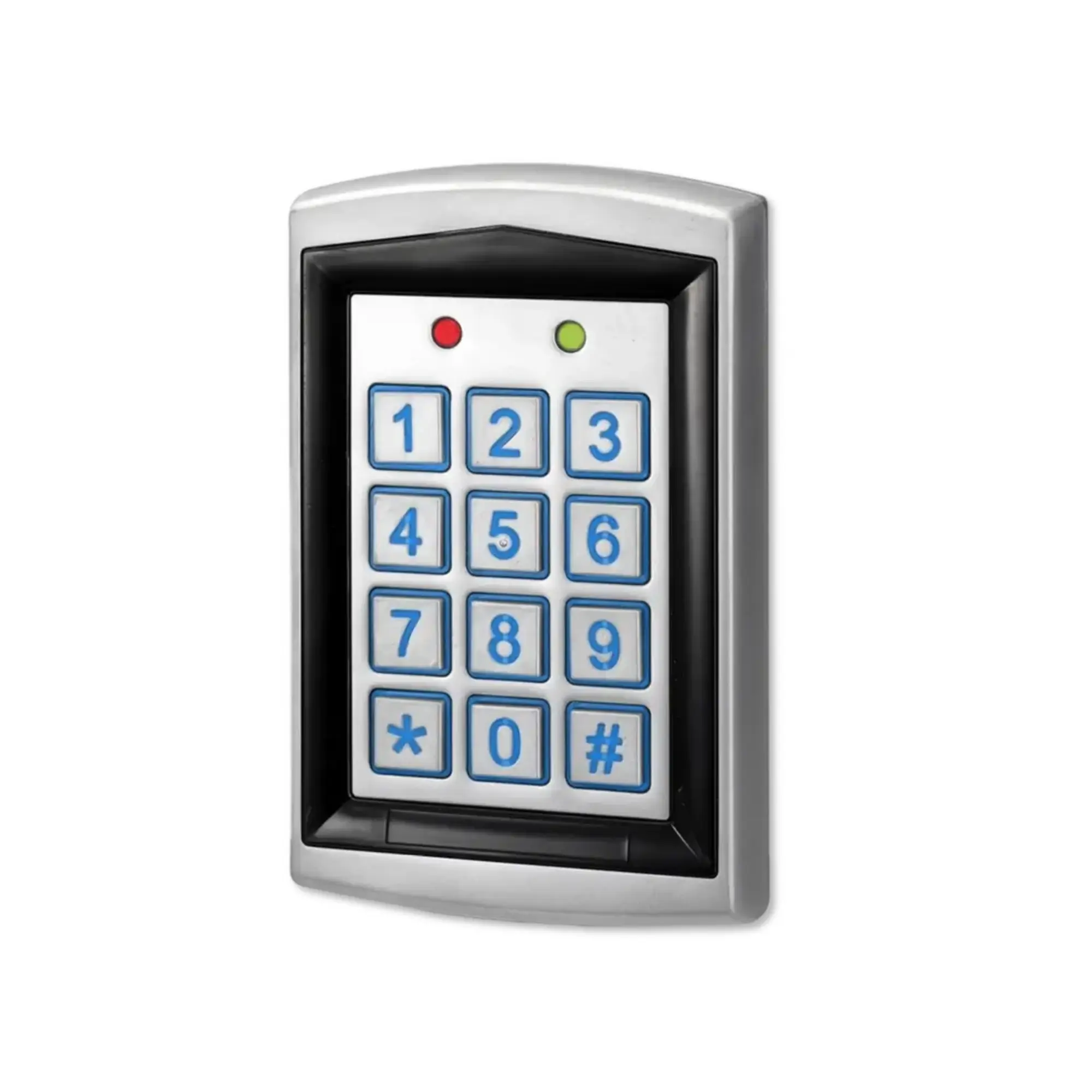

GEM DG800 – Stand-Alone Keypad & Proximity Reader – Up To 1000 Users

Full Description

Vandal-Resistant and Weatherproof Solution for Up to 1000 Users

The GEM DG800 is a highly durable and functional access control device that integrates both a keypad and a proximity card reader. Designed for standalone operation, it supports a large user base of up to 1000 users, making it suitable for a wide range of applications. Its vandal-resistant construction and IP65 rating ensure reliable performance in challenging environments.

Key Features of the GEM DG800:

• Combined Keypad and Proximity Reader: Offers flexible access options using PIN codes or proximity cards/tokens.
• Large User Capacity: Supports 1000 proximity users and 10 PIN code users.
• Vandal-Resistant Housing: Constructed from die-cast aluminum for maximum durability.
• IP65 Weather Rating: Ensures reliable operation in outdoor conditions.
• Backlit Keypad: Provides clear visibility in low-light environments.
• Dual Relay Outputs: Allows control of two separate access points or devices.
• Built-in Proximity Reader: Operates on the EM 125kHz RF frequency.
• Non-Volatile Memory: Retains access data during power outages.
• Fully Programmable: Enables customization of access control settings.
• LED and Audible Indicators: Provides clear feedback on access status.

Technical Specifications:

• Model: GEM DG800
• Type: Combined Keypad and Proximity Reader
• User Capacity: 1000 (proximity) + 10 (PIN)
• Proximity Frequency: EM 125kHz
• Housing Material: Die-cast aluminum
• Protection Rating: IP65
• Vandal Resistant: Yes
• Operating Temperature: -20°C to +70°C
• Operating Humidity: 5% to 95% (non-condensing)
• Power Supply: 12-24V AC/DC
• Number of Relays: 2
• Relay Output: NO & NC
• Code Length: 12 digits
• Backlit Keys: Yes
• Dimensions: 76 x 120 x 21 mm
• Weight: 1.000 kg

Benefits of a Stand-Alone Keypad & Proximity Reader:

• Enhanced Security: Dual authentication and robust construction.
• Versatile Application: Suitable for both indoor and outdoor use.
• Large User Management: Ideal for high-traffic environments.
• Durable and Reliable: Designed to withstand harsh conditions.
• User-Friendly Operation: Backlit keypad and clear indicators.
• Flexible Integration: Dual relay outputs for various access control setups.

Ideal Applications:

• Commercial buildings
• Industrial sites
• Educational institutions
• Gated communities
• Parking facilities
• Any location requiring robust and secure access control.
