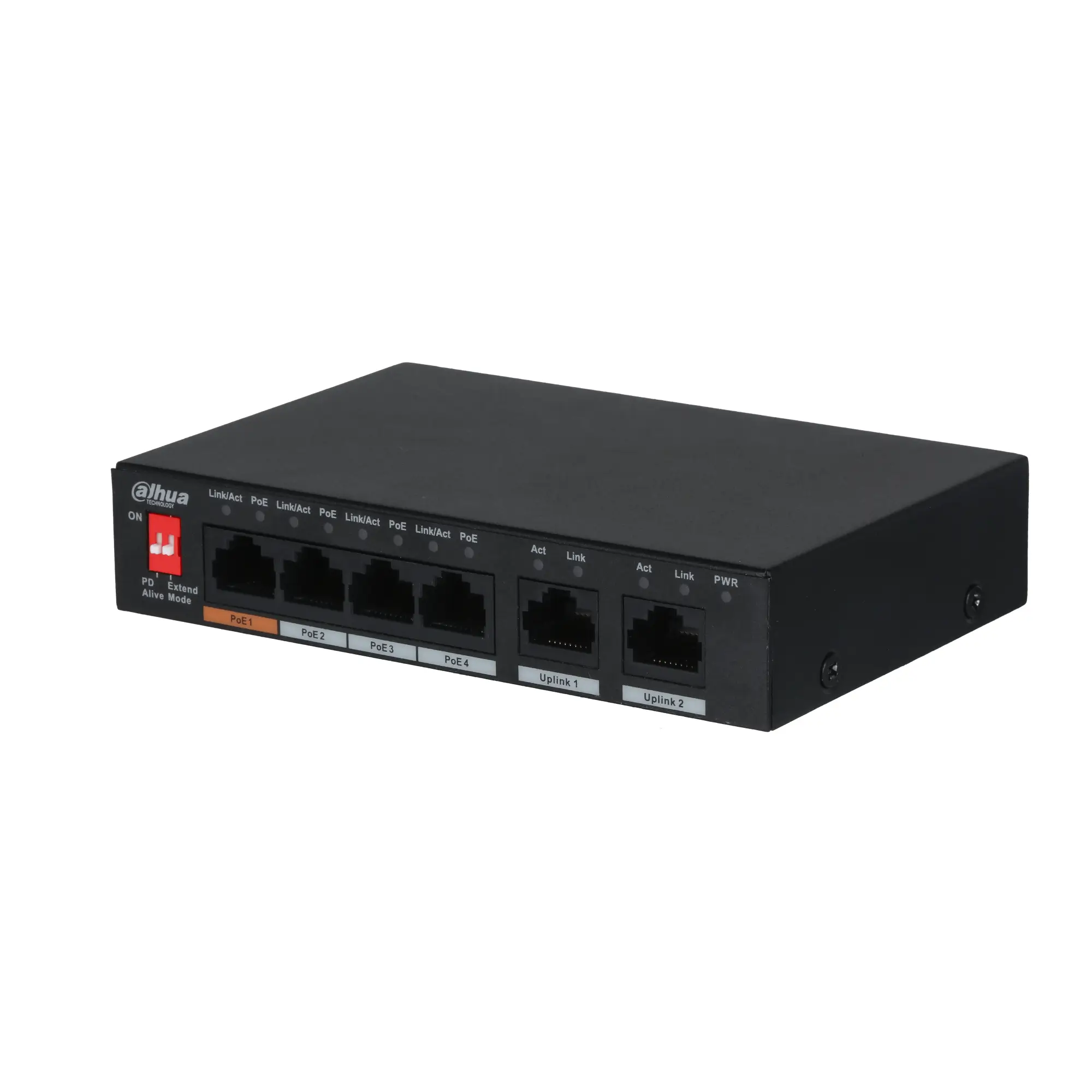

Dahua PFS3006-4ET-60: 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports
The Dahua PFS3006-4ET-60 is a versatile and reliable 6-port 10/100Mbps unmanaged desktop switch, designed to provide seamless network connectivity and robust Power over Ethernet (PoE) support for a variety of applications.
Key Features:
- 4 PoE Ports: Provides power and data connectivity to PoE-enabled devices, simplifying installations.
- Hi-PoE 60W Port: Port 1 delivers up to 60W of power, ideal for high-power devices.
- 250m Long-Distance PoE: Extends PoE transmission range beyond the standard 100m, allowing for flexible deployments.
- PoE Watchdog: Automatically detects and resets unresponsive PoE devices, ensuring network stability.
- Intelligent PoE Power Management: Prioritises power delivery to critical ports and prevents overloads.
- All-Metal Design: Durable metal housing for excellent heat dissipation and reliable performance in harsh environments.
- Unmanaged Operation: Plug-and-play simplicity for easy setup and use.
Full Description
Reliable PoE Power and Connectivity for Your Network
The Dahua PFS3006-4ET-60 is a versatile 6-port 10/100Mbps unmanaged desktop switch with 4 PoE ports, designed to provide reliable power and network connectivity for various applications, particularly in surveillance systems. This switch offers intelligent PoE features, long-distance transmission, and robust construction.
Key Features of the Dahua PFS3006-4ET-60:
- 6 Ports: 4 x 10/100Mbps PoE ports, 2 x 10/100Mbps uplink ports.
- 4 PoE Ports: Supports IEEE802.3af/at and Hi-PoE 60W (Port 1).
- Intelligent PoE: PoE power consumption management, smart detection, and ultra-wide power range.
- Hi-PoE 60W: Port 1 supports up to 60W output for high-power devices.
- Long-Distance PoE: Supports 250m PoE transmission (10Mbps).
- PoE Watchdog: Automatic device restart to prevent downtime.
- MDI/MDIX Self-Adaptation: Simplified network setup.
- All-Metal Design: Excellent heat dissipation and durability.
- Wall Mounting: Flexible installation options.
- Unmanaged Switch: Plug-and-play simplicity.
Technical Specifications:
- Ethernet Ports: 4 x 10/100M PoE, 2 x 10/100M uplink
- PoE Standards: IEEE802.3af/at/Hi-PoE
- PoE Power: 60W (Port 1), PoE Power Consumption Management
- Transmission Distance: 250m (PoE, 10Mbps)
- Switching Capacity: 1.80 Gbps
- Packet Forwarding Rate: 0.89 Mpps
- MAC Table Size: 2K
- Operating Temperature: -10°C to +55°C
- Power Supply: 53V DC
- Dimensions: 130mm × 85mm × 26mm
- Net Weight: 0.3 kg (0.66 lb)
- Gross Weight: 0.9 kg (1.98 lb)
- Product Dimensions: 130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″)
- Packaging Dimensions: 267 mm × 239 mm × 77 mm (10.51″ × 9.41″ × 3.03″)
- See Data Sheet
Benefits:
- Reliable PoE Power: Dahua PFS3006-4ET-60 powers PoE devices such as IP cameras and access points.
- Long-Distance Transmission: Extends network reach for remote devices.
- Intelligent Features: Simplifies management and reduces downtime.
- Durable Construction: Suitable for various environments.
- Easy Setup: Unmanaged design for plug-and-play operation.
Ideal Applications:
- IP surveillance systems
- Wireless access point deployments
- Small to medium-sized networks
- Any application requiring PoE power and network connectivity
Product Specifications
| Dimensions | 267 × 239 × 77 mm |
|---|---|
| Brand | Dahua Technology |
| Device Type | PoE Extenders |
| Power Requirement | 53VDC |
| Operating Temperature | -10°C to 55°C |
| SKU | DH-PFS3006-4ET-60 |
