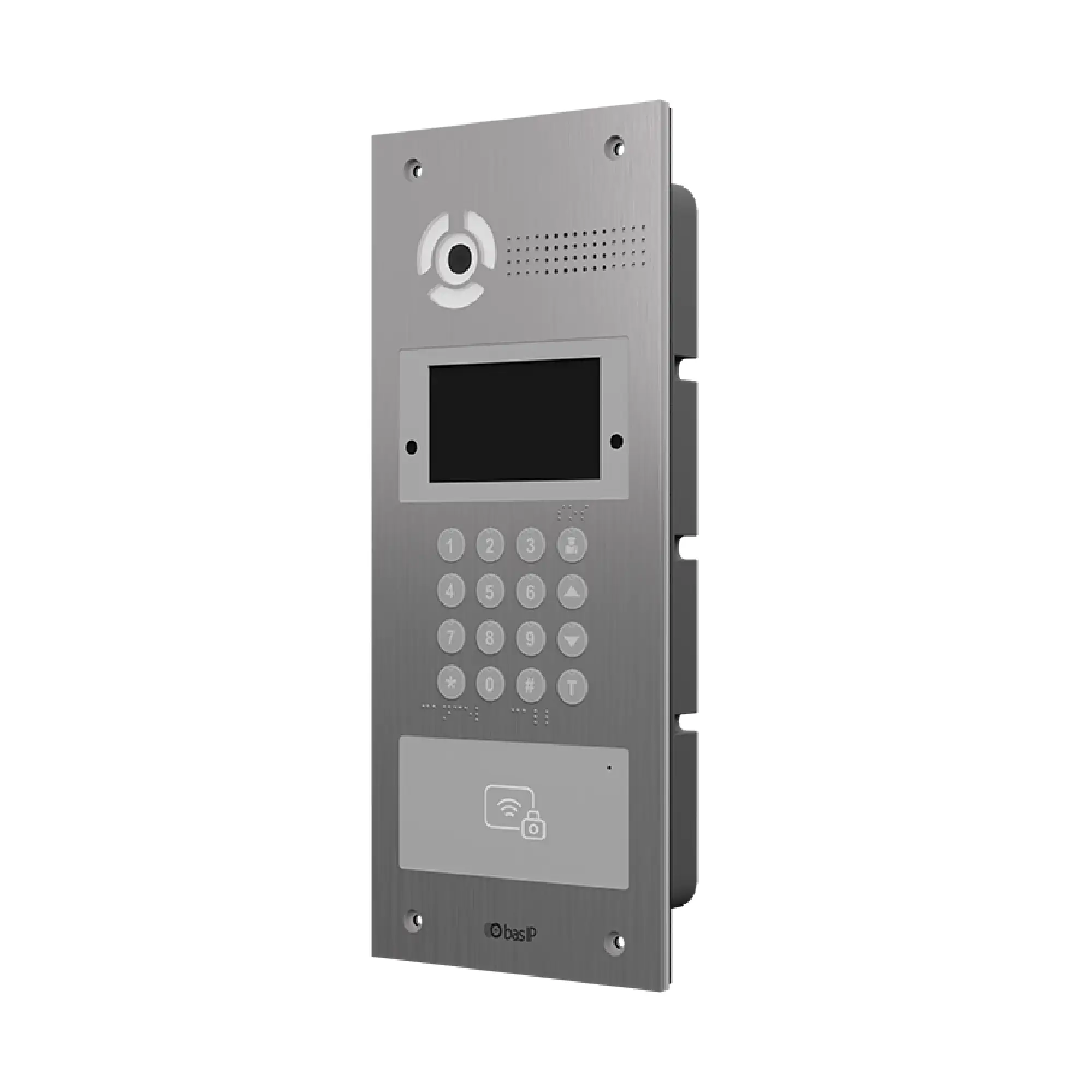

BAS-IP AA-07BD – Multi-Resident Entrance Panel With a Backlit TFT Colour Screen
The BAS-IP AA-07BD is a robust and feature-rich multi-resident entrance panel designed to provide secure and efficient access control for residential complexes and office blocks. This advanced panel offers a combination of durability, convenience, and advanced features to meet the needs of modern buildings.
Key Features:
- 4.3-Inch TFT Colour Display: Provides clear and vibrant visuals for easy navigation.
- High-Resolution Camera: 2.0 MP camera with a wide viewing angle for detailed images.
- Multi-User Capability: Supports up to 20,000 registered users.
- Advanced Security: Features built-in Wiegand output, IP65 and IK07 protection, and secure communication protocols.
- Flexible Access Control: Supports various identification methods, including cards, key fobs, UKEY, QR codes, and PINs.
- Easy Installation: Flush or wall-mounted options for convenient setup.
- Customisable Settings: Adjust call melodies, access control settings, and other preferences to suit your specific needs.
Full Description
Enhanced Security and Convenience With Bas-IP Multi-Resident Entrance Panel
The BAS-IP AA-07BD is a versatile multi-resident entrance panel designed to provide secure and efficient access control for your building. With its backlit TFT color screen, high-resolution camera, and advanced features, this panel is ideal for modern residential complexes.
Key Features Of The BAS-IP AA-07BD:
- 4.3-Inch TFT Colour Screen: The BAS-IP AA-07BD features a clear and vibrant display for easy navigation.
- High-Resolution Camera: 2.0 MP camera with a wide viewing angle for detailed visuals.
- Multi-User Capability: Supports up to 20,000 registered users.
- Advanced Security: Features built-in Wiegand output, IP65 and IK07 protection, and secure communication protocols.
- User-Friendly Interface: Intuitive touch-screen controls for easy operation.
- Customisable Settings: Adjust call melodies, access control settings, and other preferences to suit your specific needs.
Technical Specifications:
- Panel Type: Multi-apartment
- Display: 4.3″ TFT, colour with backlight
- Resolution: 2.0 MP
- Camera Angle: 110° (horizontal)
- Output Video: 1080p (1920 x 1080), H.264 Main Profile
- Night Backlight: 6 LEDs
- Light Sensitivity: 0.01 Lux
- Protection Class: IP65, IK07
- Working Temperature: -40°C to +65°C
- Operating Humidity: 0% – 86%
- Power Consumption: 6.5 W (active), 3.6 W (standby)
- Power Supply: +12 V DC
- Case: Aluminium
- Dimensions: 155 x 375 x 55 mm
- Installation: Flush mounting, wall mounting with BR-AA bracket
- See Full Data Sheet.
Benefits Of The Multi-Resident Entrance Panel With a Backlit TFT Colour Screen:
- Enhanced Security: Robust construction and advanced security features protect against unauthorised access.
- Convenience: Easy-to-use touchscreen interface and multiple identification options.
- Versatility: Supports various access control methods and integrations.
- Durability: Weatherproof design and IK07 impact resistance for long-lasting performance.
- Customisability: Tailor settings to your specific needs.
Ideal Applications:
- Residential buildings and Flats
- Office buildings
- Gated communities
- Commercial properties
Product Specifications
| Brand | Bas-IP |
|---|---|
| Protection Rating | IP65, IK07 |
| Mounting | Flush Mount, Surface Mount (Box Required) |
| Operating Temperature | -40°C to 65°C |
| Colours | Silver |
| Power Requirement | 12 VDC |
| System Type | Video |
| Door Entry System Component | Ancillary Products |
| Number of Users | 10,000+ |
| Device Type | Entrance Panel |
| Construction | Aluminium |
| Reader and Card Technology | Facial Recognition, Multi Technology |
| Reader Interface | Wiegand |
| Keypad | Keypad |
| SKU | BAS-AA-07BD Silver |
