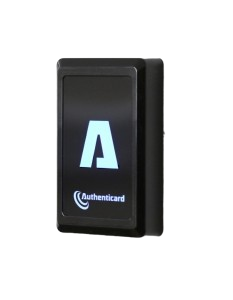

Authenticard A-MINI Reader
A popular choice for installation on mullions, the Authenticard A-MINI Reader range provides the ideal compliment for your security and access credentials. Designed specifically to be as versatile as possible for use with as many access control systems, the A-MINI is available in most credential technologies.
OLED backlighting and a smooth hardened acrylic surface make it suitable for both outdoor and indoor use.
Full Description
Authenticard A-MINI Reader – Compact and Versatile Access Control
Streamline access control with the sleek and versatile Authenticard A-MINI Reader. This mullion-mount reader offers unmatched compatibility with various credential technologies and boasts easy installation for diverse applications.
Key Features:
- Ideal for mullion mounting: Compact design seamlessly integrates into narrow door profiles.
- Supports diverse credentials: Choose from MIFARE, DESFire, AuthentiFire, or 125KHz Proximity to match your system.
- Durable construction: Hardened acrylic surface and weatherproof design (IP65) withstand wear and tear.
- Easy installation: Universal backplate simplifies mounting on standard backboxes or surfaces.
- Intuitive user experience: OLED backlighting ensures clear visibility in any lighting condition.
- Wide compatibility: Works with all standard access control systems for seamless integration.
- EU (CE) certified: Ensures compliance with safety and performance standards.
 |
Installation is made easy with the universal metal backplate designed to fit to a single-gang backbox or for surface mounting. Positioning and alignment can be made prior to securing the reader which locates onto latching tabs at the top and an integral non-drop screw located underneath. |
Product Specifications
| Weight | 102 g |
|---|---|
| Dimensions | 85 × 55 × 17.5 mm |
| Brand | Authenticard |
| Colours | Black |
| Output Protocol | Wiegand |
| Power Requirement | 10-15 VDC, 150 mA |
| Operating Temperature | -30°C to 70°C |
| Protection Rating | IP65 |
| Construction | ABS, Polycarbonate |
| Connection Type | Pigtail / cable connection |
| Annunciation | Blue LED, Green LED, Red LED, Sounder |
| Reader and Card Technology | Mifare / Desfire CSN Only, Proximity (125 kHz), DESFire |
| SKU | A-MINI-D, A-MINI-CSN, A-MINI-125 |
