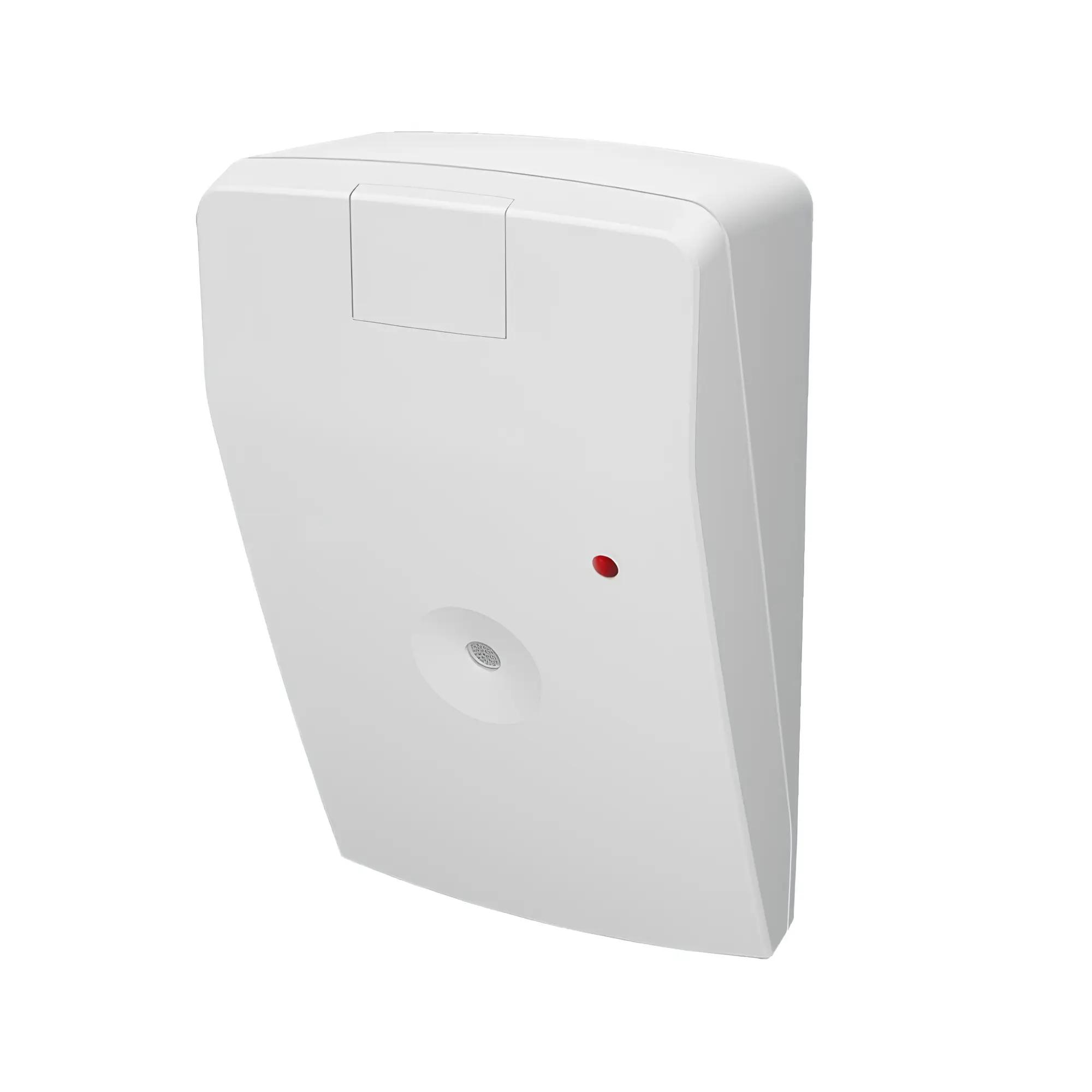

Alarmtech AD 800 – Acoustic Glass Break Detector
The Alarmtech AD 800 is a cutting-edge acoustic glass break detector designed to enhance the security of your home or business. This advanced detector utilises state-of-the-art technology to accurately detect the sound of breaking glass, providing reliable protection against intruders.
Key Features:
- Advanced Detection Technology: Employs sophisticated algorithms to accurately detect the sound of breaking glass while reducing false alarms.
- Wide Detection Range: Monitors a 165-degree field of view, covering multiple windows with a single detector.
- Versatile Compatibility: Detects standard glass, tempered glass, and laminated glass.
- Grade 2 Compliance: Meets rigorous industry standards for security and reliability.
- Robust Construction: Durable and reliable construction for long-term performance.
- Easy Installation: Simple to install and configure.
Full Description
Advanced Protection for Your Property
The Alarmtech AD 800 is a high-performance acoustic glass break detector designed to provide reliable protection against intrusion attempts involving broken glass. This advanced device incorporates cutting-edge technology to ensure accurate and reliable detection.
Key Features of the Alarmtech AD 800:
- Grade 2 Certification: Meets rigorous industry standards for security and reliability.
- Advanced Algorithms: Intelligent algorithms distinguish glass breakage from other sounds.
- Wide Detection Range: Monitors a 165-degree field of view, covering multiple windows.
- Versatile Detection: Detects standard glass, tempered glass, and laminated glass.
- Tamper Protection: Protects against unauthorised tampering with the device.
- Compact Design: Discreet and easy to install.
Technical Specifications:
- Detection Range: Up-to 9 meters
- Power Supply: 7-30 VDC
- Current Consumption: 12 mA @ 12V, 7.3 mA @ 24V
- Operating Temperature: +5°C to +40°C
- Dimensions: 68 x 109 x 40 mm
- Enclosure Class: IP 31
- Alarm output: Relay, NC 50 mA, 50 V DC/peak AC, Rs ≤30 Ω
- Certifications: EN 50131-2-7-1:2013 Grade 2, VdS G117503, class B, SBSC 16-675 Class 1/2, INCERT, F&P Denmark, FG#
- See Full Data Sheet
Benefits of an Alarmtech Acoustic Glass Break Detector:
- Enhanced Security: Detects glass breakage attempts for improved protection.
- Reliability: Advanced algorithms and tamper protection ensure reliable operation.
- Versatility: Detects various types of glass, including tempered and laminated glass.
- Easy Installation: Compact and discreet design for easy installation.
- Compliance: Meets industry standards and certifications for peace of mind.
Ideal Applications:
- Residential properties
- Commercial buildings
- Retail stores
- Offices
- Any location where glass breakage poses a security risk
Product Specifications
| Dimensions | 68 × 109 × 40 mm |
|---|---|
| Brand | Alarmtech |
| Device Type | Glass Break Detector |
| Grading and Compliance | Grade 2 |
| Operating Temperature | +5 – 40°C |
| Power Requirement | 7 – 30 VDC |
| Max Glass Area | 6 x 6 m |
| Construction | ABS |
| Colours | White |
| Protection Rating | IP31 |
| SKU | AMT-AD800-AM |
