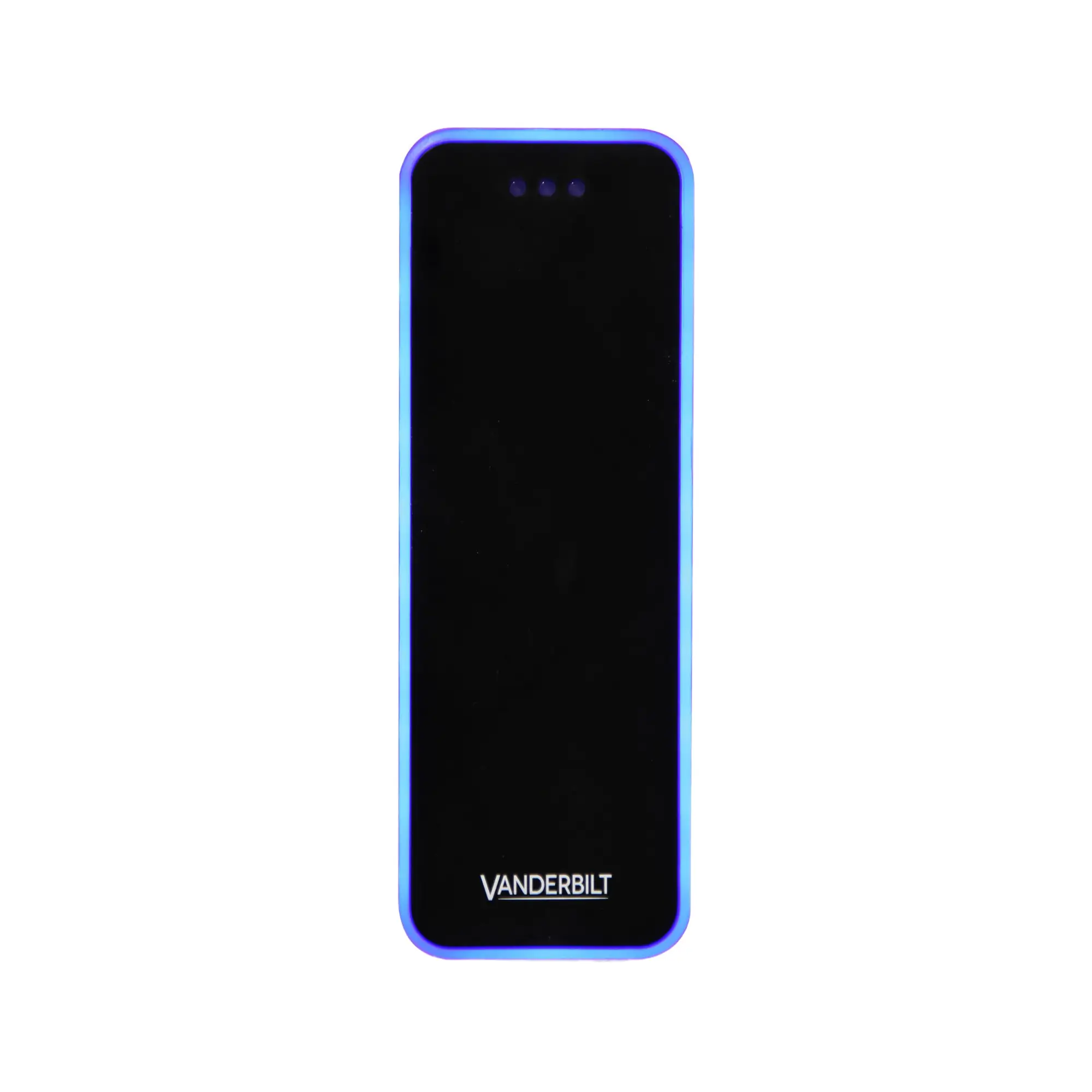

Acre VR20M-MF – Mifare EV1 Mullion Reader

Full Description

Ideal for Demanding Environments and Secure Access Management

The Acre VR20M-MF Mifare EV1 Mullion Reader sets a new standard for access control with its modern aesthetics and exceptional durability. This weatherproof reader is built to withstand harsh conditions while offering advanced features for secure and convenient access management.

Key Features Of The Acre VR20M-MF:

• Modern Design: The sleek and stylish profile with a black or matte chrome finish complements any building interior or exterior.
• Durable Construction: Built with hardwearing materials, this reader boasts an IK08 impact rating and a wide operating temperature range (-40°C to +70°C) for reliable performance in any environment.
• Mifare Card Technology: Provides secure and reliable access control using compatible Mifare cards (EV1 and EV2).
• Multicolour LED Light Frame: Offers clear visual indication of access status for enhanced user experience.
• Automatic Dimming Function: Automatically adjusts brightness for optimal visibility in various lighting conditions.
• OSDP or Wiegand Connectivity: Supports industry-standard communication protocols for flexibility with existing systems.
• Graphical OLED Display (Optional): Provides clear user interaction with intuitive menus and access status information (available in select models).
• See Full Data Sheet.

Technical Specifications:

• Card Compatibility: Mifare Classic, Mifare Plus (UID only), Mifare DESFire EV1, Mifare DESFire EV2/EV3 (to EV1 conditions only)
• Read Range: Up to 6 cm
• Interface: RS485 / Wiegand
• Operating Voltage: 8.5 – 30.0 VDC
• Operating Temperature: -40°C to +70°C (surface mounted), -10°C to +70°C (back box mounted)
• Dimensions (W x H x D): 50 x 130 x 22 mm
• Housing Material: Zinc casted metal bezel with polycarbonate plastic front
• Approvals: CE, R&TTE, EMC Directives, RED, FCC, UL (pending)
• Weight: 0.296kg

Benefits Of The Mifare EV1 Mullion Reader:

• Enhanced Durability: Built to last in challenging environments, reducing replacement costs and downtime.
• Modern Aesthetics: Stylish design complements any building architecture.
• Secure and Reliable Access Control: Mifare technology ensures secure user authentication.
• Improved User Experience: Multicolour light frame and optional display provide clear access status and user interaction.
• Flexibility and Compatibility: Supports various communication protocols and can be configured with or without a display.

Ideal Applications:

• Commercial Buildings: Ideal for access control in entrances, lobbies, and other secure areas.
• Government Facilities: Provides secure entry points for government buildings and restricted areas.
• Educational Institutions: Enhances security and access control in schools and universities.
• Industrial Facilities: Offers a secure and durable solution for access control in harsh environments.
