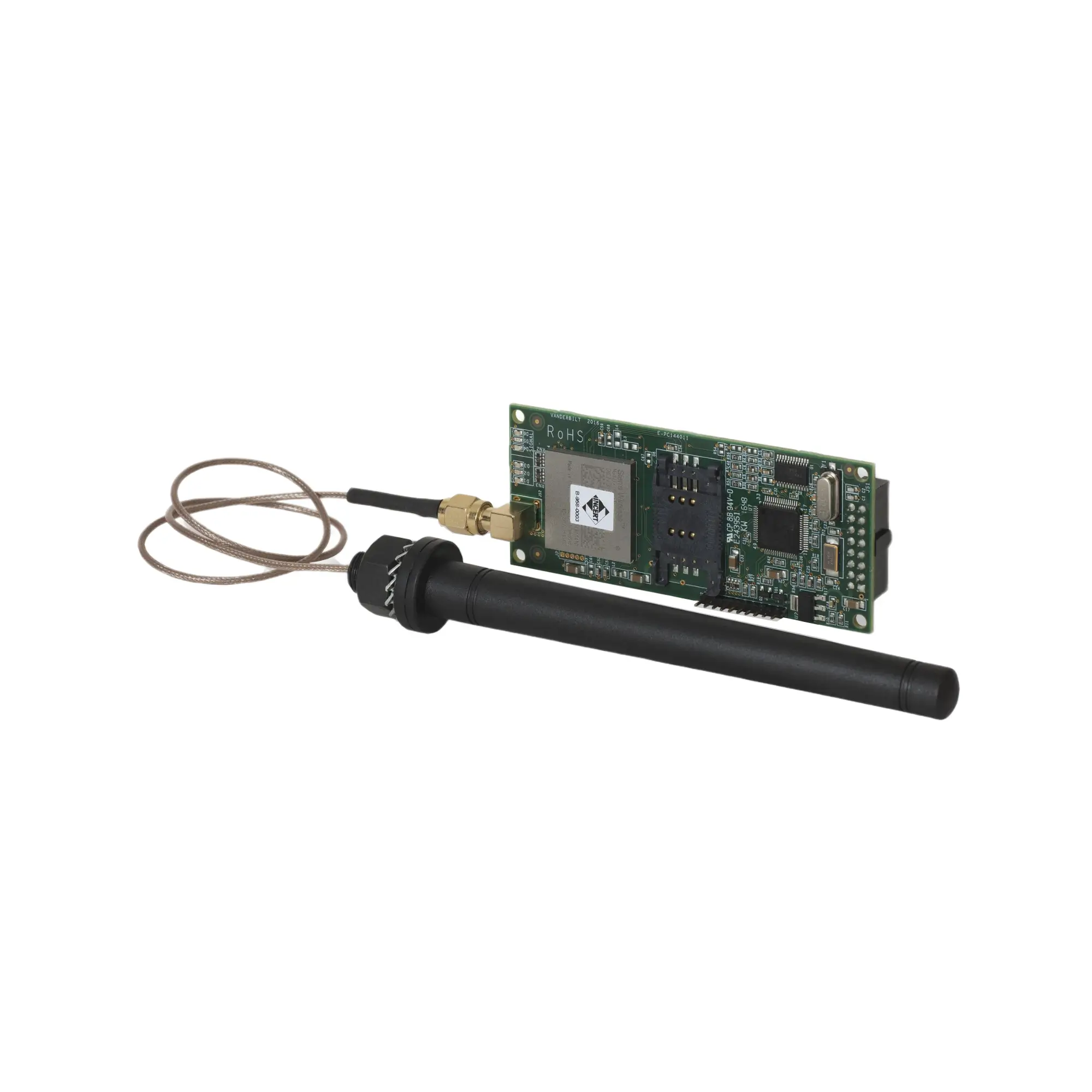

Acre SPCN320.000 – GSM Module For Acre Intrusion

Full Description

Ensure Reliable Alarm Transmission with the Acre Intrusion GSM Module

The Acre SPCN320.000 GSM module provides a dependable and feature-rich solution for communication within your Acre intrusion security system. This compact and easy-to-install module offers cellular network connectivity, supporting a variety of communication protocols for seamless integration with your existing infrastructure.

Key Features of The Acre SPCN320.000:

• 2G & 3G Network Compatibility: The Acre SPCN320.000 supports both 2G and 3G networks, offering wider network coverage and reliable data transmission for alarm events.
• Automatic Network Selection: The module scans GSM networks to automatically connect to the one with the strongest signal, ensuring optimal communication performance.
• SMS Functionality: Sends predefined text messages to designated recipients upon specific security events, providing immediate alerts and improved situational awareness.
• Remote System Management (SMS Control): For authorised users, SMS commands allow remote system actions such as full arming, disarming, and restoring alerts, offering additional control and convenience. (Note: May require additional software)
• Flexible Communication Options: Can be configured as the primary communication path, a reliable backup for existing PSTN or IP communication, or used for remote programming and configuration via Acre Intrusion Connect Pro Software.
• Simple Installation: The module plugs directly onto the main PCB of your Acre intrusion control panel, eliminating the need for complex wiring.
• Easy Configuration: All module functions can be conveniently configured through the control panel interface, streamlining setup and management.
• Pay-As-You-Go Compatible: The Acre SPCN320.000 works with standard SIM cards and pay-as-you-go mobile network plans, offering a cost-effective communication solution.
• Improved Audio/Video Transmission: (For compatible systems) Enhances the transmission quality of audio and video data for improved remote monitoring capabilities.
• Signal Strength Indication: LED indicators provide clear visual feedback on signal strength, aiding in optimal antenna positioning.
• See Full Acre SPCN320.000 Data Sheet.

Technical Specifications:

• Network Support: GSM/GPRS (2G & 3G)
• Frequency Bands: Dual Band (900/1800 MHz)
• Dimensions (PCB): 90 x 38 x 25 mm
• Operating Temperature: -10°C to +50°C
• Power Consumption: Operating current – Max. 130 mA at 12 VDC, Quiescent current – Max. 40 mA at 12 VDC
• Antenna: Panel mounted, 380mm cable with BNC connector (included)
• Mounting: Plugs directly onto the Acre intrusion controller main board
• SIM Card: Not supplied (all sizes supported)
• Weight: 0.030 kg

Benefits for Security Professionals:

• Reliable Alarm Communication: Cellular network connectivity ensures uninterrupted alarm transmission, even in case of internet outages or landline disruptions.
• Enhanced Security Awareness: SMS reporting keeps designated personnel informed of security events, facilitating faster response and improved situational awareness.
• Flexible Communication Options: The Acre SPCN320.000 adapts to various communication needs, serving as a primary source, backup, or remote management tool.
• Simplified Installation and Configuration: The plug-and-play design and user-friendly configuration process reduces installation time and complexity.
• Cost-Effective Communication: Pay-as-you-go compatibility allows for budget-conscious cellular network usage.

Ideal Applications:

• Properties with Unreliable Internet Connectivity: Cellular network communication offers a dependable solution for areas with limited or unstable internet access.
• Existing Acre Intrusion Systems: A straightforward upgrade to enhance communication reliability and add remote management capabilities for some systems.
• Applications Requiring Remote Monitoring: Improved Audio/Video transmission (on compatible systems) facilitates effective remote monitoring of security events.
