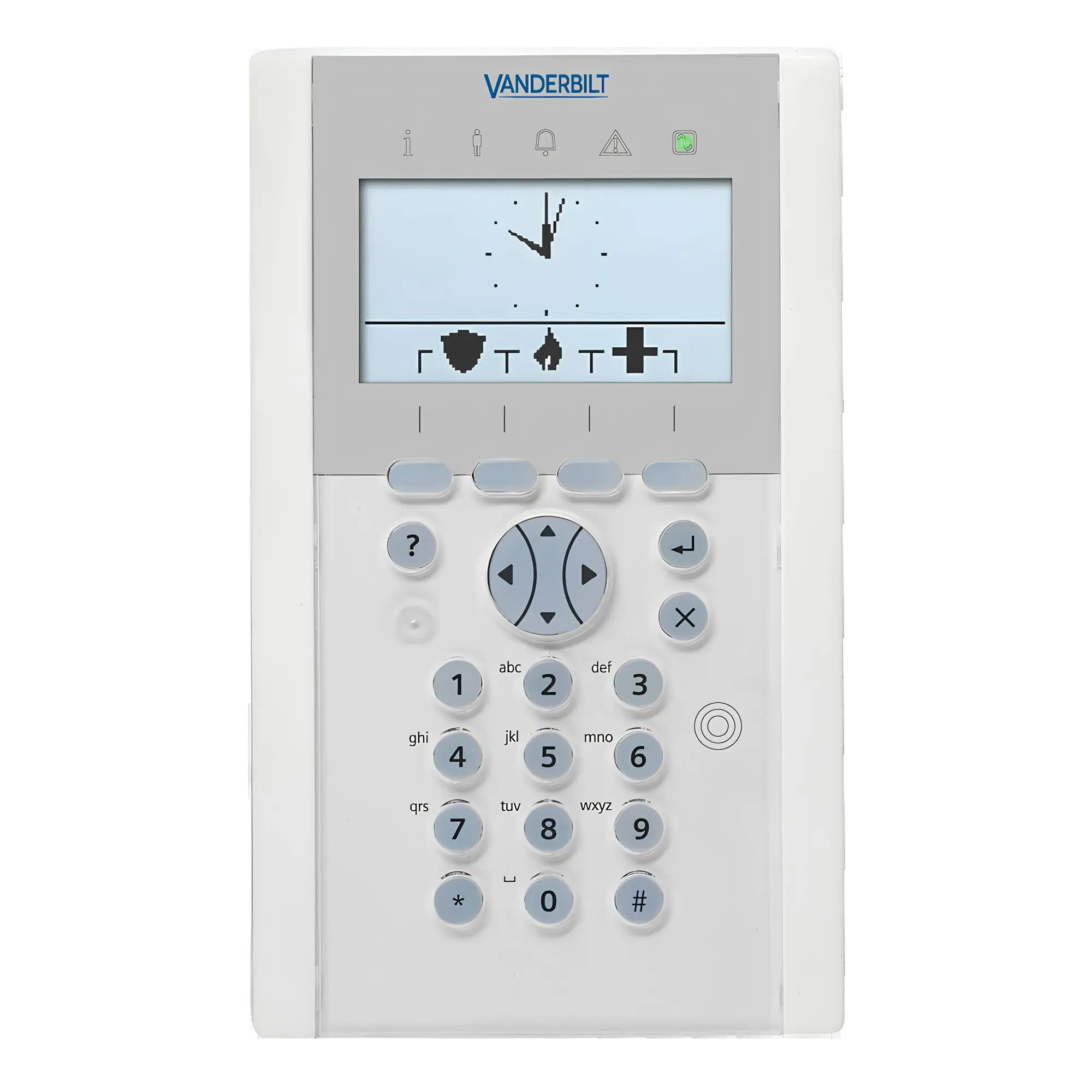

Acre SPCK620 And SPCK623 – Comfort Keypad With Optional Reader

Full Description

Increased Security and Convenience With Optional Integrated Card Reader and Multi-Area Functionality

The Acre SPCK620 and SPCK623 comfort keypads provide a user-friendly and feature-rich solution for controlling your Acre intrusion security system. These keypads offer a graphical display, intuitive navigation, and a range of functionalities to enhance system operation for both users and security professionals.

Available Models:

• SPCK620: This model features a user-friendly interface ideal for single-area or basic multi-area applications.
• SPCK623 (with Integrated Card Reader): This enhanced model offers all the functionalities, along with an integrated card reader for convenient access control using proximity cards.
• Both models are available without branding (SPCK620-N and SPCK623-N)

Key Features Of The Acre SPCK620 And SPCK623:

• Intuitive User Interface: The large LCD display with graphical icons, soft keys, and a multi-dimensional navigation key provides a user-friendly experience for effortless system control.
• Multi-Area Functionality: Optimised for controlling single or multi-area security systems, offering a clear overview of the entire system status.
• Integrated Card Reader (SPCK623): Provides an additional layer of security and convenience by enabling users to disarm the system using a proximity card (in addition to a PIN code for enhanced security).
• Powerful Menu Structure: Offers comprehensive access to engineer and user menus, area groups, system status information, and other functionalities.
• Easy Configuration: The keypad can be conveniently configured from the user interface itself or through the Acre intrusion web interface, streamlining setup and management.
• Cause and Effect Integration: Allows for programming automated responses to specific security events, enhancing system effectiveness.
• Multi-Language Support: Caters to a wider range of users with support for multiple languages.
• Door Control: Provides centralised control over door locks within the security system.
• See Full SPCK620 And SPCK623 Data Sheet

Technical Specifications:

• Display: 128 x 64 pixels (approximately 6 x 20 characters)
• Keypad: 4 soft keys, 1 multi-dimensional navigation key
• LED Indicators: 5 status LEDs
• Intrusion Interfaces: X-BUS (in, out)
• Power and Mechanical:
  • Operating Voltage: 9.5 ~ 14 V DC
  • Operating Current: Max. 155 mA at 12 V DC (backlight, LEDs, sounder operated)
  • Quiescent Current: Max. 55 mA at 12 V DC
  • Operating Temperature: 5°C ~ +40°C
  • Dimensions: 112 x 185 x 28 mm
  • Weight: 0.380 kg
  • Tamper Contact: Front/back spring tamper
  • Colour: RAL 9003 (signal white)

Benefits Of The Acre Comfort Keypad:

• Enhanced User Experience: The intuitive interface simplifies system operation for users, improving overall system usability.
• Increased Security: The optional integrated card reader adds an extra layer of security for access control.
• Improved System Management: The powerful menu structure and easy configuration options streamline system setup and maintenance.
• Flexible Multi-Area Control: Suitable for controlling single-area or complex multi-area security systems.

Ideal Applications:

• Residential and Commercial Security Systems: Provides a user-friendly and feature-rich solution for various security applications.
• Applications Requiring Multi-Area Control: Ideal for controlling security systems in buildings with multiple zones or areas.
• Systems with Access Control Needs: The SPCK623 model with an integrated card reader offers convenient and secure access control.
