Acre SPCE110.100 – Key Switch Expander

Full Description

Simple Control and Clear Status Indication with an Acre Key Switch Expander

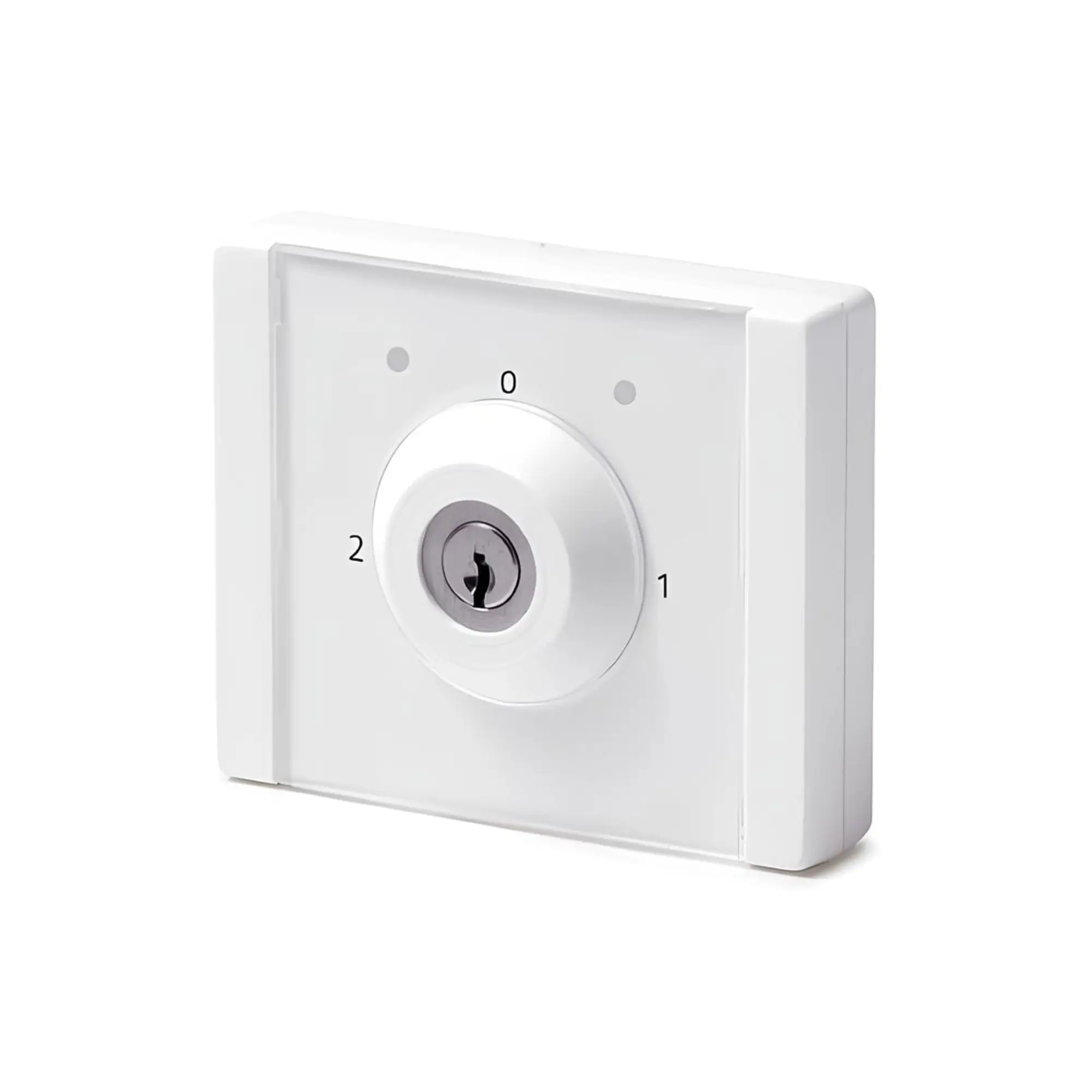

The Acre SPCE110.100 key switch expander offers a practical and versatile solution for enhancing your Acre intrusion security system. This expander features a 3-position key switch, tri-colour LED indicators, and a programmable relay output, providing a user-friendly interface for system control and clear visual feedback on system status.

Key Features Of The Acre SPCE110.100:

• 3-Position Key Switch: Provides a simple and secure method for system control, enabling actions like unlocking keypads, setting specific areas, or triggering events based on key switch position.
• Freely Programmable User Interface: The tri-colour LEDs can be configured to display various system statuses, such as key switch position, area settings, or alarms, for improved situational awareness.
• Programmable Relay Output: Automate system responses or control external devices like door strikes, gates, or alarms based on key switch actions.
• Tamper Protection: Front and back tamper contacts safeguard the expander’s integrity and system reliability.
• User-Replaceable Key Cylinder: Allows to install a cylinder that matches your existing security system keys.
• See Full Data Sheet.

Technical Specifications:

• LED Indicators: 2 Tri-Colour LEDs
• Key Switch: 3-Position, Programmable
• Relay Output: 1 Programmable Relay (NO/NC Terminals)
• Interfaces: X-BUS (In, Out)
• Operating Voltage: 9.5 – 14 VDC
• Operating Temperature: -10°C to +50°C
• Dimensions: (W x H x D): 112 x 92 x 38 mm
• Housing Material: Plastic Housing (Polycarbonate)

Benefits for Security Professionals:

• Enhanced User Control: Provides a simple and intuitive method for users to interact with the security system.
• Improved System Visibility: Freely programmable LED indicators offer a clear overview of system status, reducing confusion.
• Increased System Flexibility: Programmable actions and relay output allow for customisation based on specific security needs.
• Robust Security Features: Tamper protection and user-replaceable key cylinder contribute to a more secure system.
• Cost-Effective Solution: Offers an economical way to expand control functionality and improve user experience.

Ideal Applications:

• Small and Medium-Sized Businesses: Provides a user-friendly control point for office environments, retail stores, or other commercial spaces.
• Residential Properties: Offers a simple and secure way for homeowners to control their security system.
• Multi-User Environments: Ideal for locations where multiple users require system access control.
