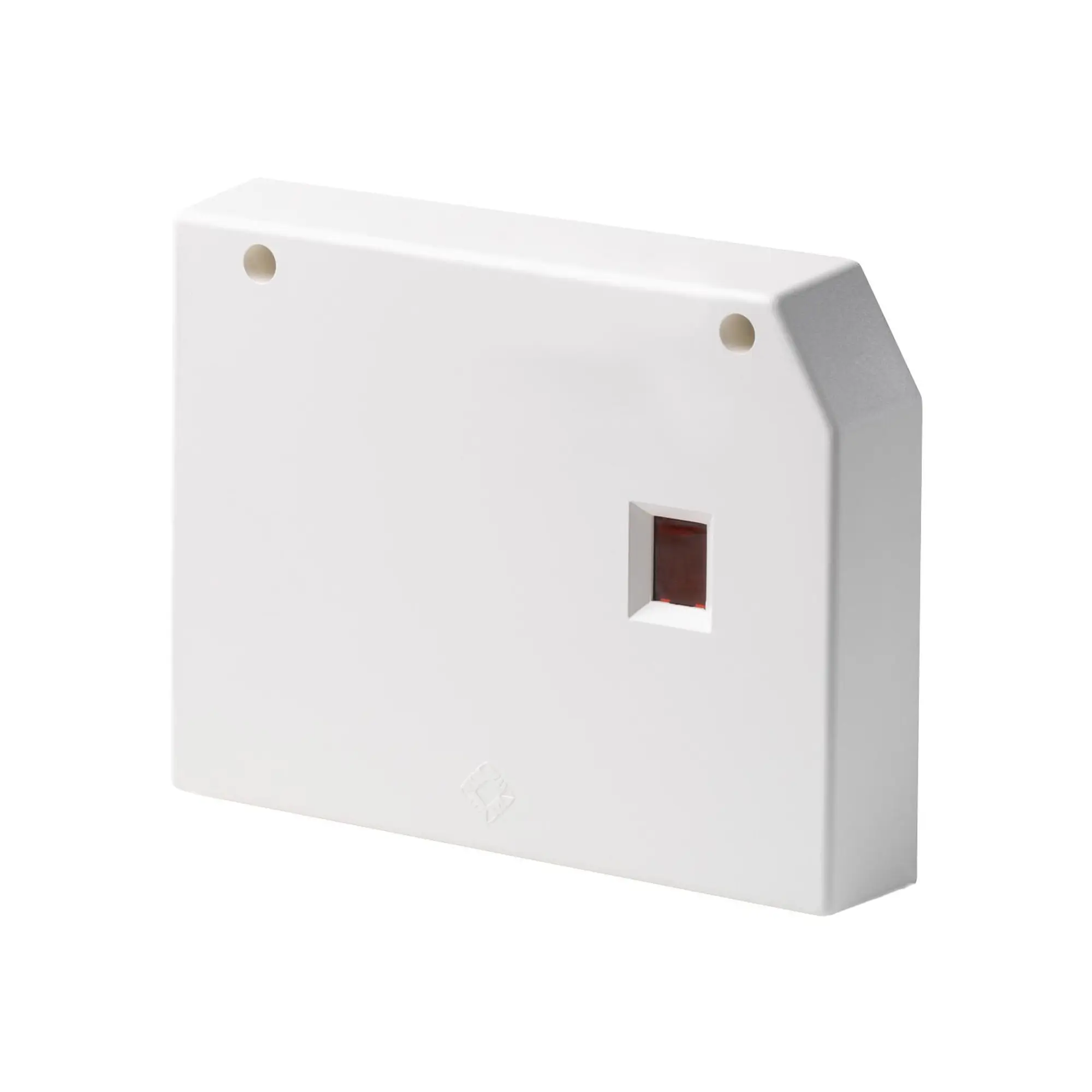

Acre SPCA210.100 – 2 Door Access Expander

Full Description

Expand Your Security System with Advanced 2-Door Access Control

The Acre SPCA210.100 access expander seamlessly integrates with your Acre intrusion panel, offering a cost-effective solution to add powerful access control functionalities to your existing SPC/Acre Intrusion security system. This 2-door expander simplifies access management for two entry points, enhancing security and user convenience.

Key Features Of The Acre SPCA210.100:

• Cost-Effective Access Control Integration: Provides a budget-friendly way to extend access control capabilities to your existing Acre intrusion system.
• Seamless System Integration: The expander automatically assigns doors and works in cooperation with your intrusion system for cohesive security management.
• Enhanced Security: Integration with the intrusion system ensures access rights are interlinked, promoting overall security and safety.
• Simplified User Management: Standard intrusion users can be easily granted access rights by adding a card, streamlining user management.
• 2-Door Access Control: Manages entry and exit points for two doors, offering comprehensive access control coverage.
• See Acre SPCA210.100 Data Sheet.

Technical Specifications:

• Number of Doors Supported: 2
• Reader Interfaces: 2 (Wiegand/Clock & Data compatible)
• Relay Outputs: 2 (30VDC / 1A resistive switching current)
• Zone Inputs: 4 (programmable for door position switch, door release switch, or other functions)
• LED Indicators: 4 (1 void and 1 valid per reader)
• Operating Voltage: 9.5 – 14 VDC
• Operating Temperature: -10°C to +50°C
• Dimensions (W x H x D): 200 x 153 x 47 mm (housing)
• Approval: CH: FFIS bis Kat. 1

Benefits for Security Professionals:

• Cost-Effective Security Expansion: Offers an affordable way to add comprehensive access control to existing Acre intrusion systems.
• Simplified System Integration: Streamlines installation and configuration for quick and easy system expansion.
• Enhanced Security Management: Provides centralised control over access and intrusion events for improved security posture.
• Increased User Convenience: Allows for easy user management and access control through card credentials.
• Flexible Programming Options: Programmable zones and relays offer customisation based on specific security needs.

Ideal Applications:

• Commercial Buildings: Ideal for access control in offices, retail stores, or other commercial spaces.
• Multi-Unit Residential Buildings: Provides secure entry control for apartments, condominiums, or gated communities.
• Schools and Universities: Enhances security and access control in classrooms, buildings, and restricted areas.
