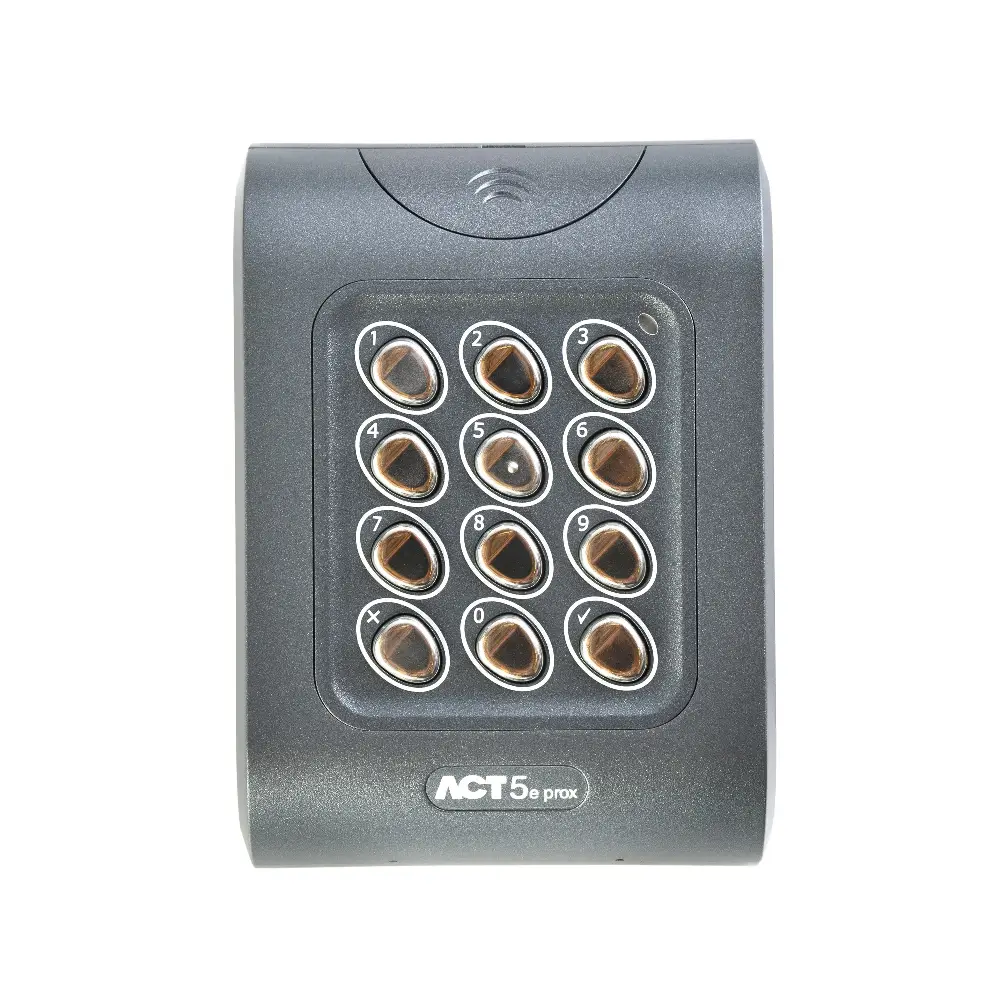

Acre ACT5-EM – Proximity Reader with Keypad (128 Codes/Users)
The Acre ACT5-EM is a robust and versatile proximity reader with an integrated keypad, designed to provide secure access control for a variety of applications. This device supports up to 128 users, offering flexible entry options through proximity cards or PIN codes.
Key Features:
- Proximity Reader & Keypad: Combines card and PIN access for enhanced security.
- 128 User Capacity: Supports a substantial number of users, suitable for small to medium-sized installations.
- Stylish and Durable Housing: IP55 rated polycarbonate housing with stainless steel keys, ensuring durability in indoor and outdoor environments.
- Wide Operating Temperature Range: Operates reliably in temperatures from -40°C to +70°C.

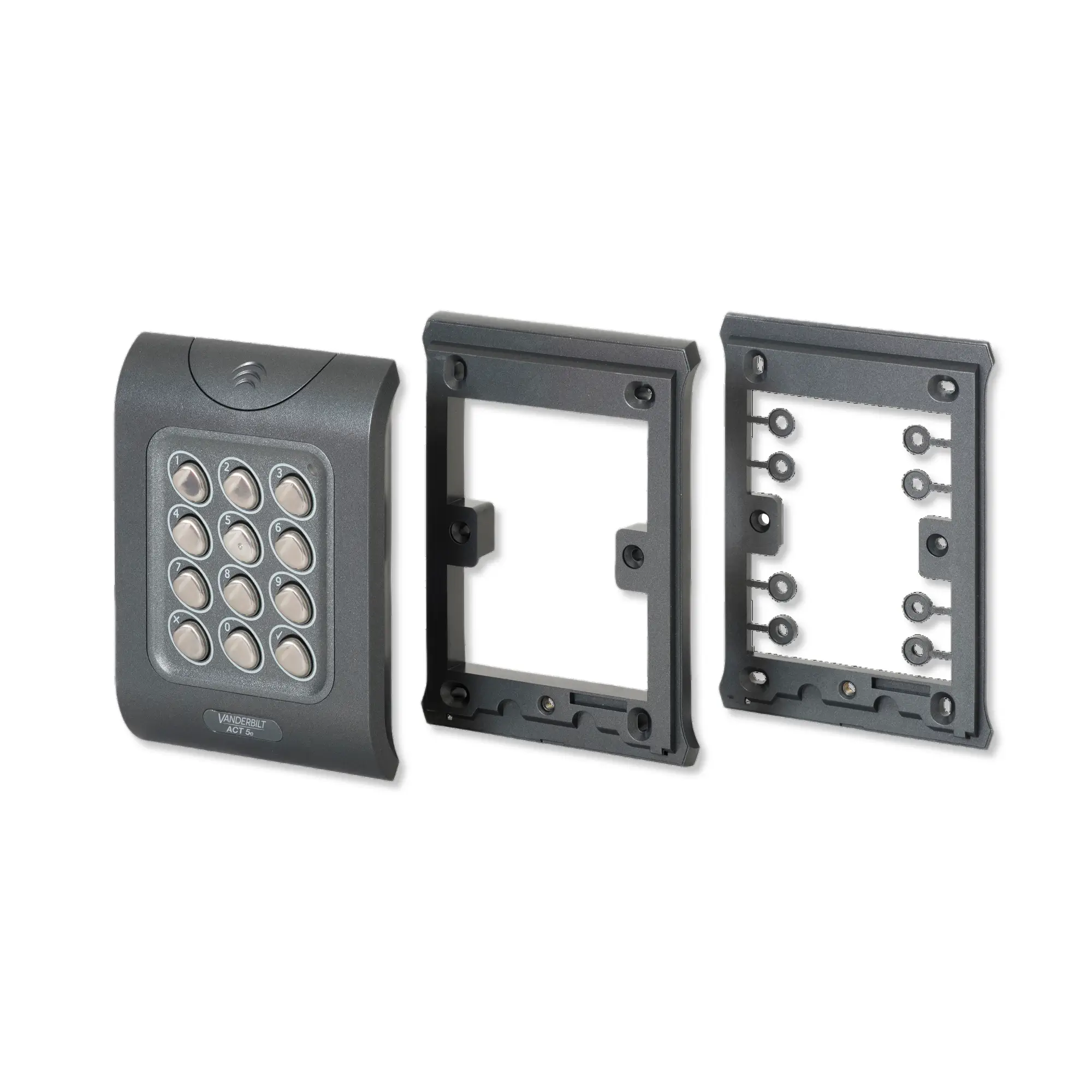

- Surface or Flush Mounting: Offers flexible installation options.
- IK08 Impact Rating: Resistant to impact and vandalism.
Full Description
Secure Access Control with Proximity and Keypad Functionality
The Acre ACT5-EM is a versatile proximity reader with an integrated keypad, designed to provide secure access control for a variety of applications. This robust device supports 128 users with both PIN codes and card numbers, making it a flexible solution for managing access to your premises.
Key Features of the Acre ACT5-EM:
- Proximity and Keypad: The Acre ACT5-EM combines proximity card reading with keypad entry for enhanced security.
- 128 User Capacity: Supports up to 128 users with PIN codes and card numbers.
- Durable Construction: Housed in a stylish IP55 rated polycarbonate housing with stainless steel keys and potted electronics.
- Indoor/Outdoor Installation: Suitable for both indoor and outdoor environments.
- IK08 Impact Rating: Provides protection against vandalism and physical impact.
- Wide Operating Temperature: Operates reliably in a wide range of temperatures.
Technical Specifications:
- Users: 128
- Dimensions: 94 x 130 x 25 mm (L x W x H)
- Impact Rating: IK08
- Current Consumption: 60mA (nominal), 100mA (max)
- Weight: 0.225 kg
- Door Capacity: 1
- Operating Voltage: 12-24 Volts AC/DC
- Mounting: Surface/Flush
- Installation: Indoor/Outdoor
- Tamper Protection: No
- Housing Protection: IP55
- Operating Temperature: -40°C to +70°C
- See Data Sheet
Benefits:
- Enhanced Security: Dual authentication with proximity cards and PIN codes.
- Versatility: Supports a wide range of users and installation environments.
- Durability: Robust construction ensures long-lasting performance.
- Weather Resistance: IP55 rating protects against dust and water.
- Wide Temperature Range: Suitable for use in extreme climates.
Ideal Applications:
- Access control for offices and commercial buildings
- Residential security systems
- Industrial facilities
- Schools and universities
- Any location requiring secure access control
Product Specifications
| Dimensions | 94 × 130 × 25 mm |
|---|---|
| Keypad | Integral Keypad |
| Mounting | Flush Mount, Surface Mount |
| Number of Users | 128 |
| Protection Rating | IP55 |
| Access Control System Type | Standalone Keypads, Standalone Systems |
| Brand | ACRE |
| Output Relays | 1 |
| Power Requirement | 0.1 A, 12-24 VDC/VAC |
| Operating Temperature | -40°C to 70°C |
| SKU | ACT5-EM |
Downloads
Manufacturer's Datasheet
763.39 KB
